Deleting a lane

Double-click on the lane you would like to delete and the Edit Lane

window will appear.

Click Delete Lane.

Select a lane in the edit area.

Click on the selected lane and then click again on the node you want

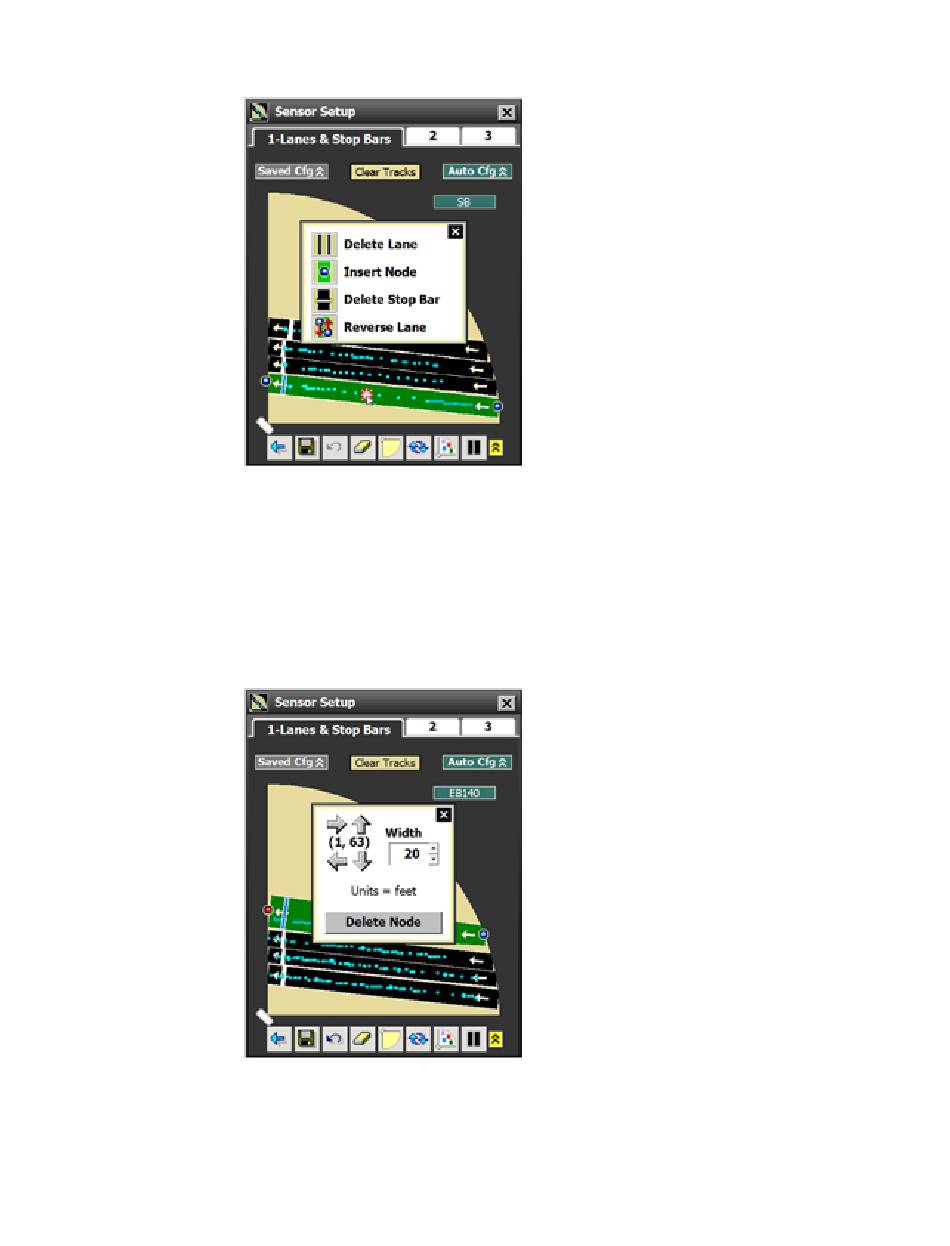

Figure 47. Deleting a lane

Figure 48. Adjusting lane width

Chapter 6: Configuring Lanes & Stop Bars

Note. Adjusting

the width of a lane

will impact the

detection search

area for that lane.

Definition. A lane

node is a point, placed

within a lane, that

can be used to adjust

a lane by moving its

trajectory, adding

turns or corners,

or widening part

or all of a lane.

•
