Make sure the sensor has a clear view of the area you want to detect.
˿
Pay particular attention to signs, poles, signal heads and mast arms.
Make sure the sensor will detect vehicles for several feet before the
˿
first detection zone in each lane and several feet beyond the stop bar.
The mounting location will vary based on your intersection and your
˿
needs. The three locations in the image below are recommended
because of their clear view of the detection area.

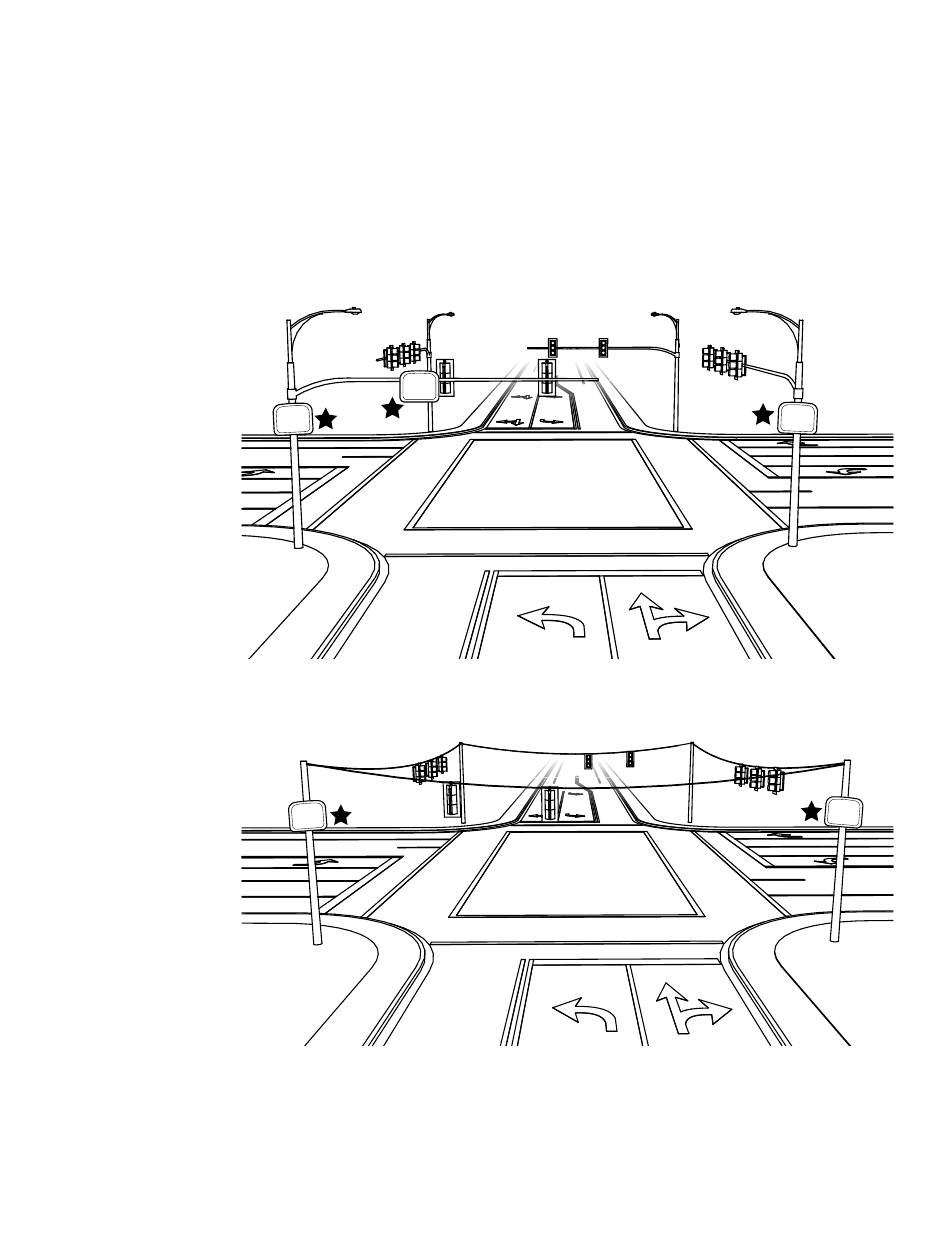

Figure 3. Recommended mounting locations in a mast arm intersection
Figure 4. Recommended mounting locations in a span wire intersection
