SmartSensor Matrix User Guide
•
Changing the software language
1
Click the globe icon in the lower left corner.
2
A window will appear. Choose your desired language from the drop-
down menu.
Click OK.
3
Changing the software size
Click one of the three boxes at the bottom of the screen to choose
between the small, medium and large display sizes.
SSMM communication basics

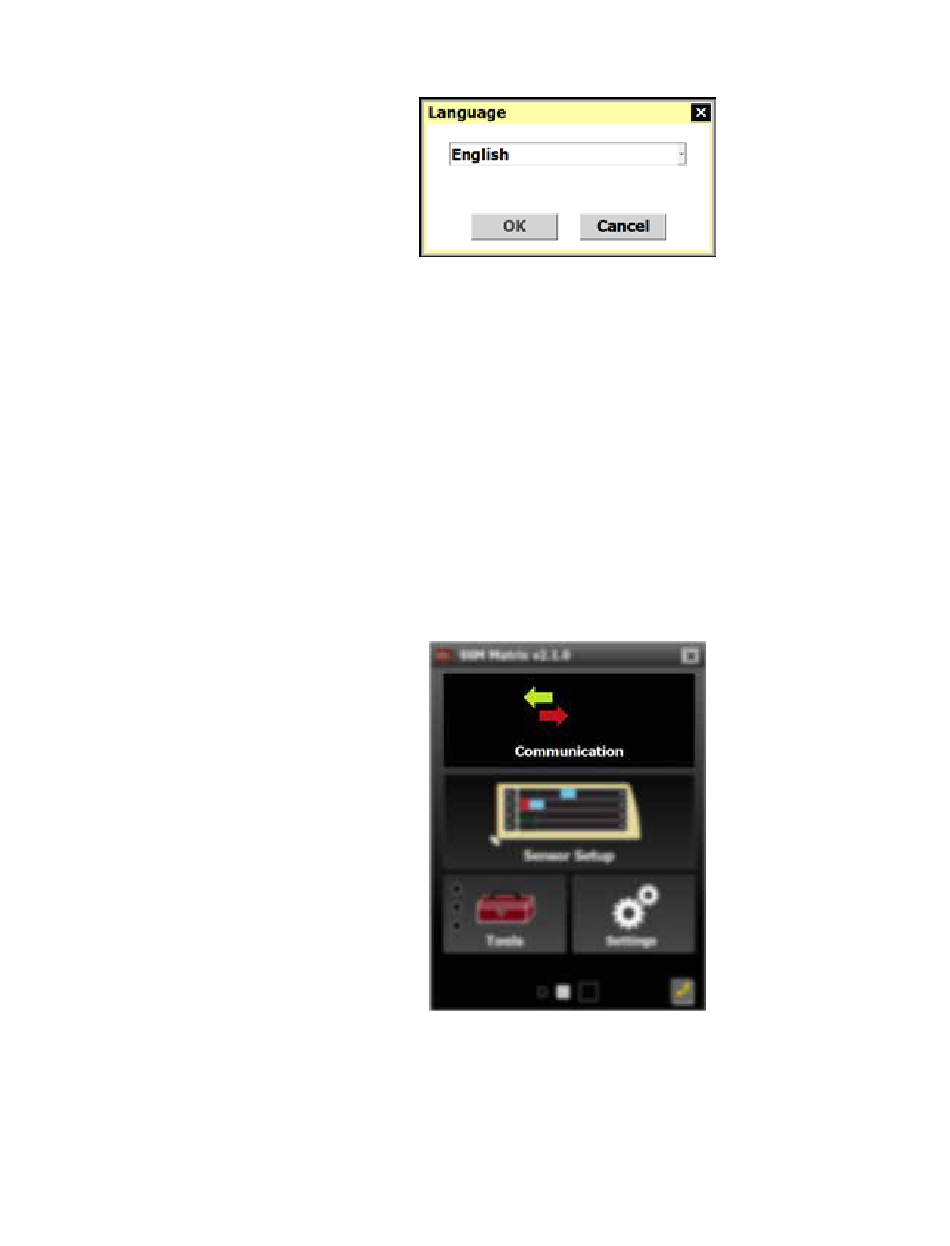

Figure 27. Communication button, main screen
SmartSensor Manager can connect to your sensors via a serial (RS-485)
or Internet (IP address) connection; this may require additional equip-
ment. There is also a virtual option for testing or demo purposes.
Figure 26. Language selection
