SmartSensor Matrix User Guide
•
to adjust.
3
Change the width of the node by clicking the direction buttons or
enter the desired lane width in the Width field. The numbered pair
between the arrows shows the (x, y) coordinates of the node within
the sensor's footprint.

Creating a curve in a lane

1 Select a lane in the edit area.
2 Click again and select Insert Node.
3
Click and drag one of the lane nodes anywhere in the edit area. You
can also click on a node and then click on the arrows in the Node
Adjustment window to move the node in the desired direction.

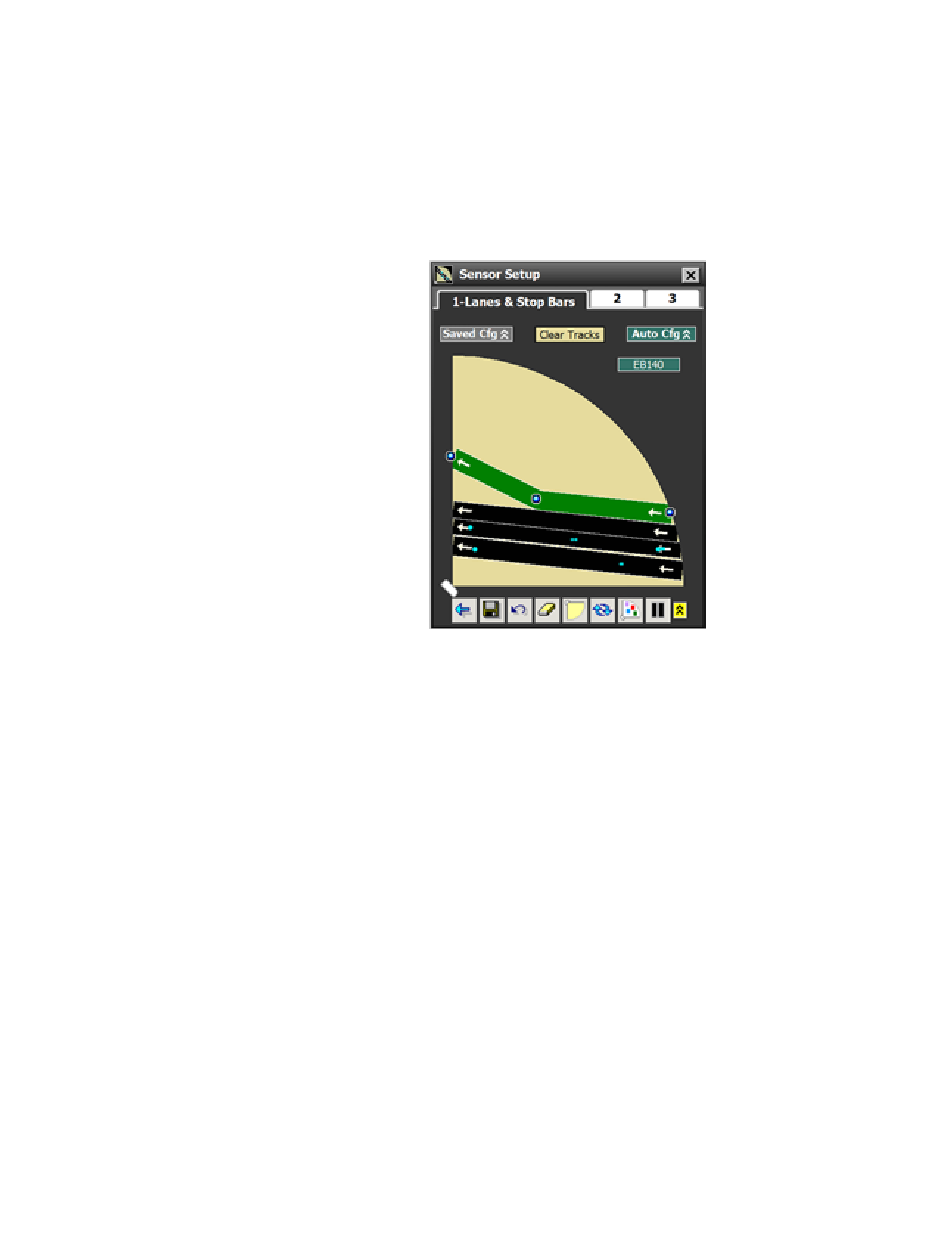

Figure 49. Moving a lane node
