Wavetronix SmartSensor Matrix User Manual page 71

Note. The letter
under the channel
number represents
the channel type
(N=normal, C=count,
P=pulse, I=inverted).
To see channels
9–16, click the yellow
down arrows.
Note. Zones must be
mapped to a channel
to be visible in the
Verification window.
70
SmartSensor Matrix User Guide
•
Verification tab
Channel
indicator
Approach
name
Zones
Sensor
Channel Indicators
The channel LEDs will turn red when vehicles enter a zone that is
mapped to that channel. Click a channel indicator to see the zones
mapped to that channel. Click and hold on a channel indicator to see
channel settings.

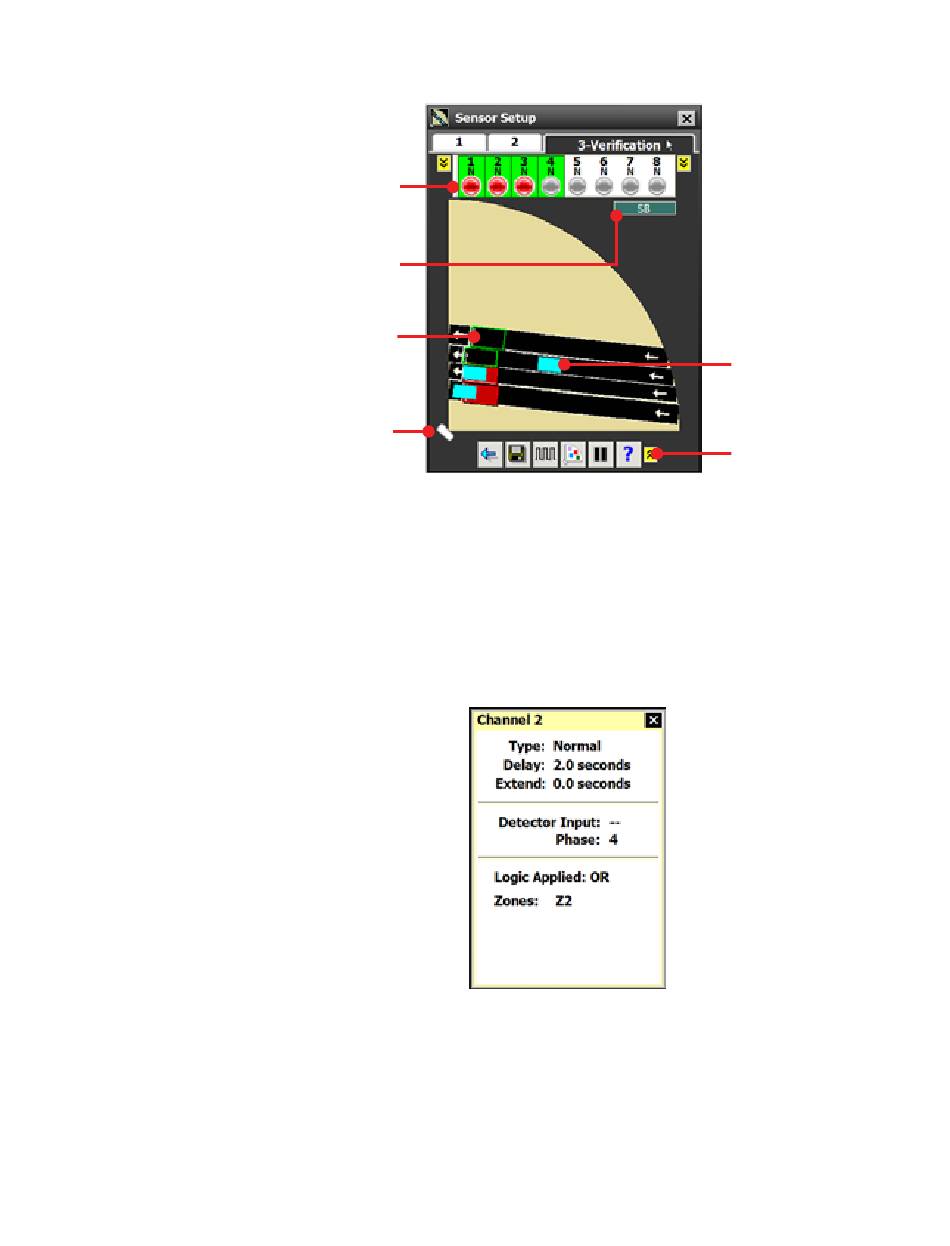

Figure 78. Verification screen
Figure 79. Channel settings
Vehicle
detections
Menu bar
