Wavetronix SmartSensor Quick Reference Manual

SmartSensor HD
QUICK-REFERENCE GUIDE
1

Ensure that all necessary components are available

You will need a number of items in order to install your sensor, including but not limited to the items below:
˽ Mount bracket and Band-It clamping system
˽ Sensor cable and homerun cable
˽ Click equipment and pole-mount box
2

Select a mounting height

Use the table to select the mount-
ing height for the sensor based on
the offset from the nearest detec-
tion lane. The range of ideal offsets
is highlighted in gray. If possible,
use the height contained in the
second column (Recommended
Mounting Height).
In areas with a lot of truck traffic,
consider a higher mounting height
to help mitigate occlusion.
Note. This table is truncated. For
a complete table, refer to the HD
user guide.
3

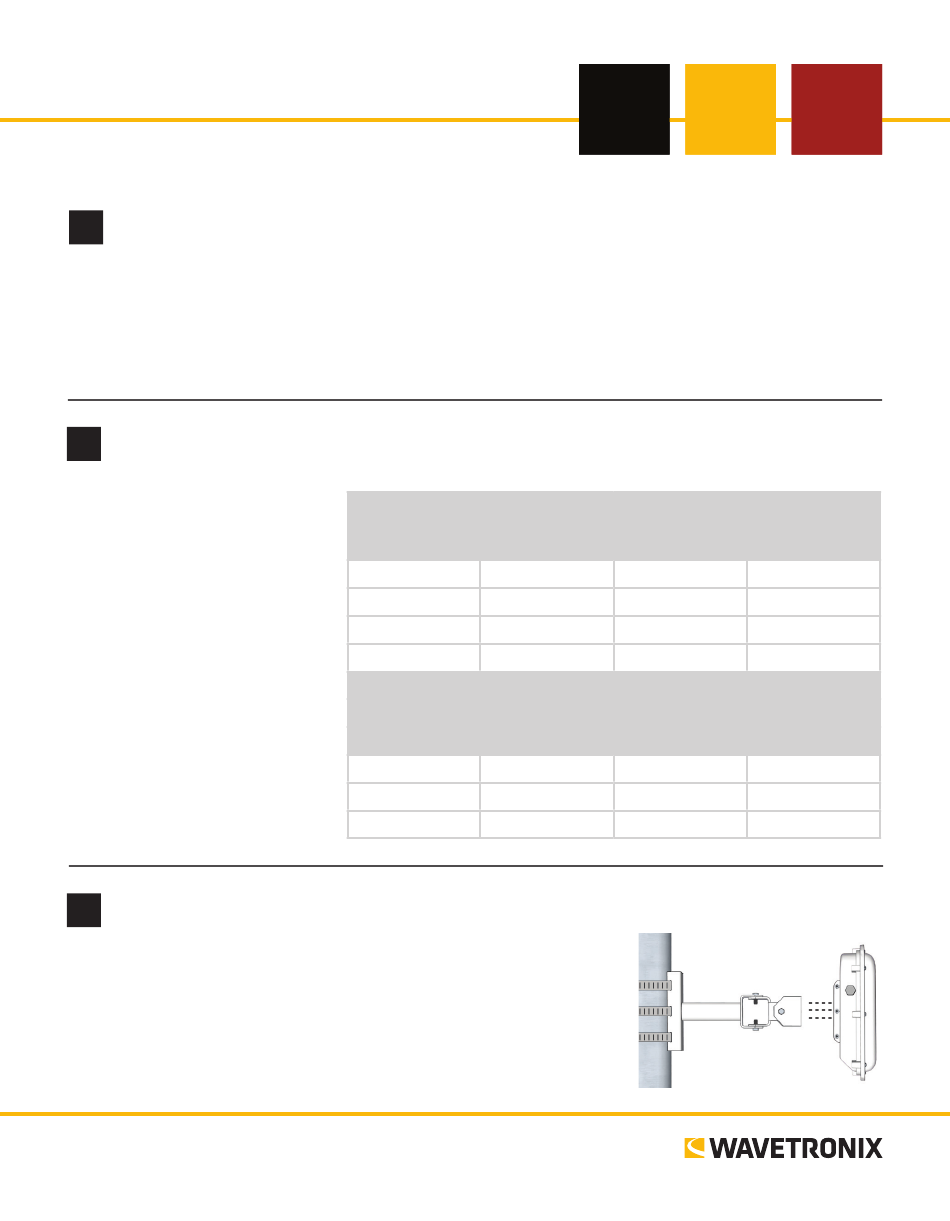

Attach the sensor and mount bracket to the pole

1
Attach the mount bracket to the pole using the straps.
2
Tighten the strap screws partway. The sensor alignment will need to
be fine-tuned later, so keep the straps slightly loose.
3
Attach the sensor to the bracket; the connector at the bottom of the
unit should point towards the ground.
4
Place the lock washers onto the bolts, thread on the nuts and tighten.
www.wavetronix.com
801.734.7200
˽ Laptop with SmartSensor Manager HD, down-
loaded from wavetronix.com
˽ Bucket truck
Offset from first Recommended
Detection Lane Mounting Height
(ft/m) (ft/m)
6 / 1.8 12 / 3.7
10 / 3 12 / 3.7
15 / 4.6 15 / 4.6
20 / 6 18 / 5.5
25 / 7.6 26 / 7.9
30 / 9.1 29 / 8.8
35 / 10.7 30 / 9.1
40 / 12.2 33 / 10
45 / 13.7 36 / 11
50 / 15.2 39 / 11.9
*Reduction in number of reported speeds
Minimum Maximum
Mounting Height Mounting Height
(ft/m) (ft/m)
9 / 2.7 19* / 5.8*
9 / 2.7 22 / 6.7
12 / 3.7 26 / 7.9
15 / 4.6 30 / 9.1
17 / 5.2 33 / 10
19 / 5.8 37 / 11.2
20 / 6 40 / 12.2
22 / 6.7 43 / 13.1
23 / 7 40 / 14
25 / 7.6 50 / 15.2
