Click the X in the upper right corner to save and close the
3
window.

Deleting a lane

Click on the lane you want to delete. The Lane window will
1
appear.
Click Delete. Be aware that if the lane was automatically config-
2
ured, and if Show Auto Lanes is turned on, once it is deleted it
will still appear as a blue automatic lane.

Saving the configuration

Any of the following will save the configuration:
Click OK.
˿
Click on the gray dot under the sensor for a shortcut to the Ver-
˿
ification screen.
Either of these will cause a prompt to appear, asking if you want to
save. Click Yes.

Sidebars, menus, and windows

Sidebar
Sidebar button
Vehicle Display menu

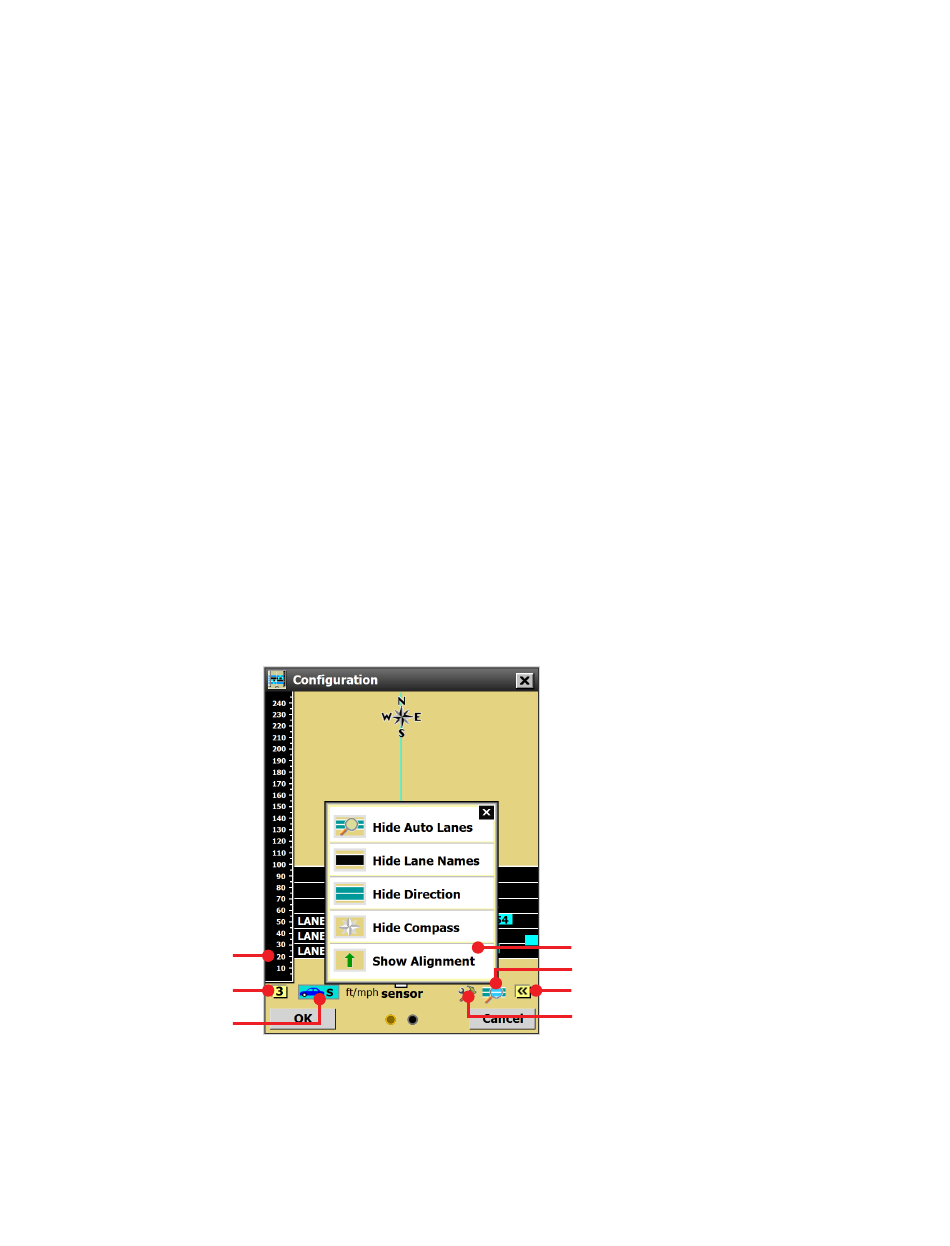

Figure 59. Tools for accessing menus and windows
The following section outlines all options available in the various
sidebars, menus and windows accessible from the Configuration
screen. Some of these change software functionality, while others
simply change how things are displayed.
View menu
View menu
Sidebar button
Tools menu
Chapter 6: Configuring Lanes
55
•
