Mounting on the back side of the mast arm

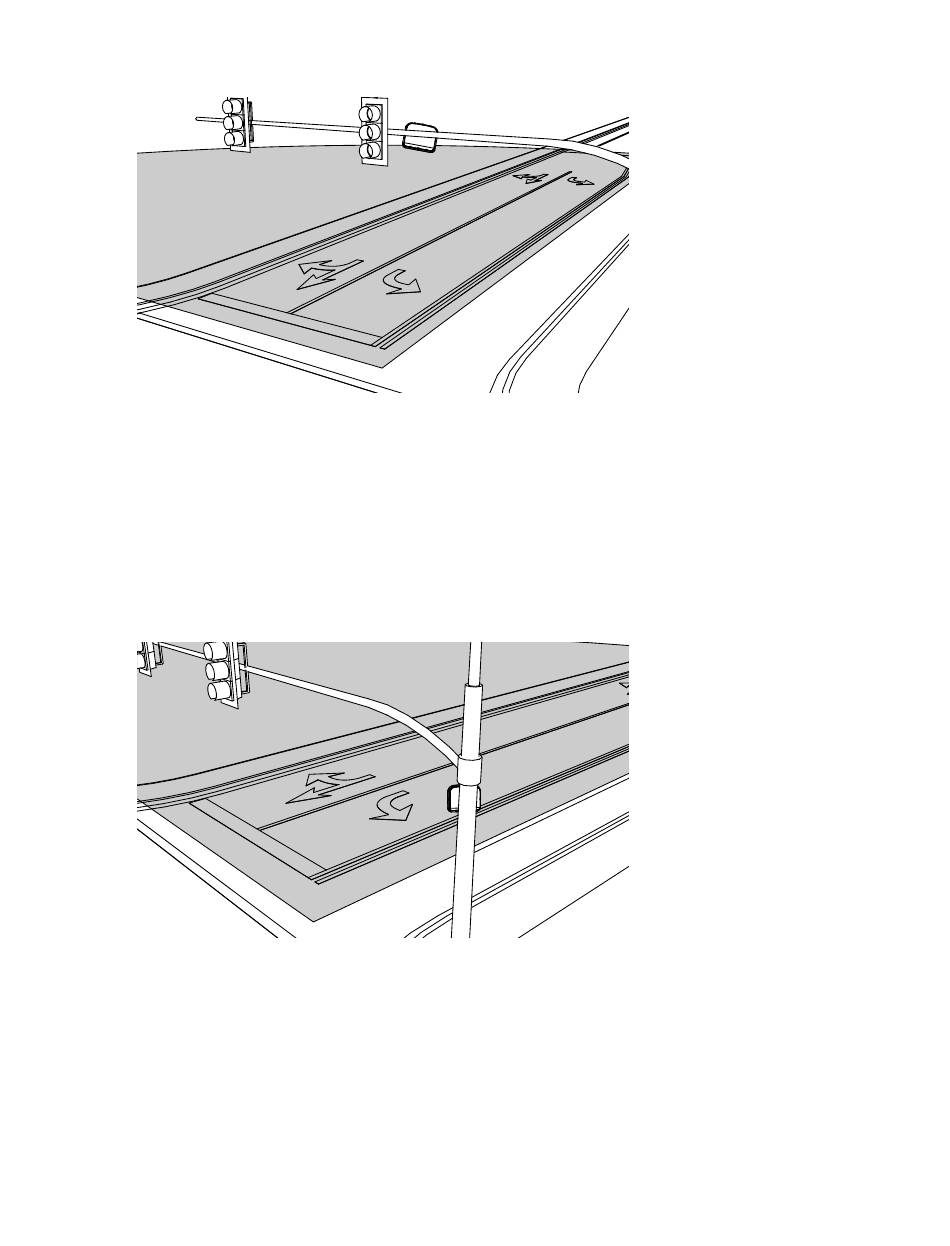

Figure 5. Back side of the opposing mast arm
Allows you to place the sensor near the lanes of interest.
˿
May be the best location for wide approaches.
˿
Make sure the sensor has at least a six-foot offset to the nearest lane
˿
of interest.

Mounting on the far side of the approach

Gives you more flexibility with mounting height than mounting on
˿
the mast arm.
May be the best location if detecting the left-turn lane is a high
˿
priority.
The farther away the first lane is from the sensor, the higher you will
˿
want to mount the sensor to avoid occlusion.
Figure 6. Far side of the approach
Chapter 1: Choosing a Mounting Location
