1 Click the Zone/Channel Map button in the menu bar.
2
Determine which zone(s) you would like to map to which
channel(s).
3
Map the zone row to the channel column by clicking the gray LEDs.
A zone is mapped to a channel when the LED is green.
Using the Edit Channel window
Setting Description
Channel
Lets you cycle through
selection
different channels and edit
settings without leaving the
Edit Channel window.
AND/OR Allows you to apply AND/
OR logic to the channel.
Zone mapping
Lets you quickly map
currently configured zones
to the channel.
Delay
Ignores outputs that are
shorter than the specified
delay time.

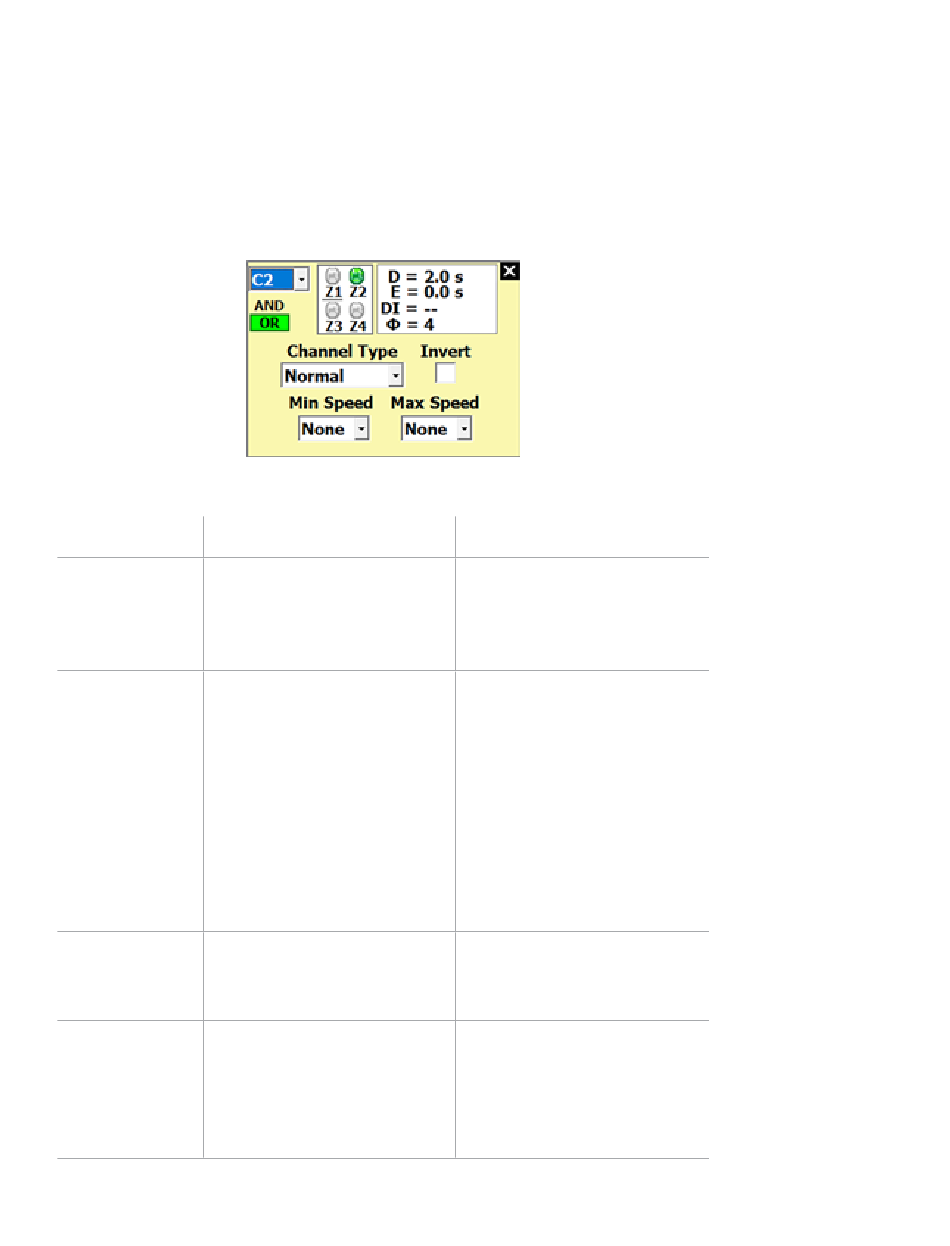

Figure 70. Edit Channel window
Details
N/A
Click AND or OR to apply
logic.
AND logic means that all
mapped zones have to be
active to trigger the channel.
OR logic means that any
activity in any mapped zone
will trigger the channel.
Click the zone LED to map
that zone to the channel.
Click anywhere in the
white box and use the up/
down arrows to change the
delay setting in the Output
Settings window.
Chapter 7: Configuring Zones & Channels
Note. Clicking on
the zone number in
the zone column will
highlight that zone
in the edit area.
