Wavetronix SmartSensor Matrix User Manual page 66

Normal
Detects vehicle presence in
channel
the zone.
Channel Type – Counting Channel
Counting
Counts vehicles as they pass
channel through the zone.
Channel Type – Pulse Channel

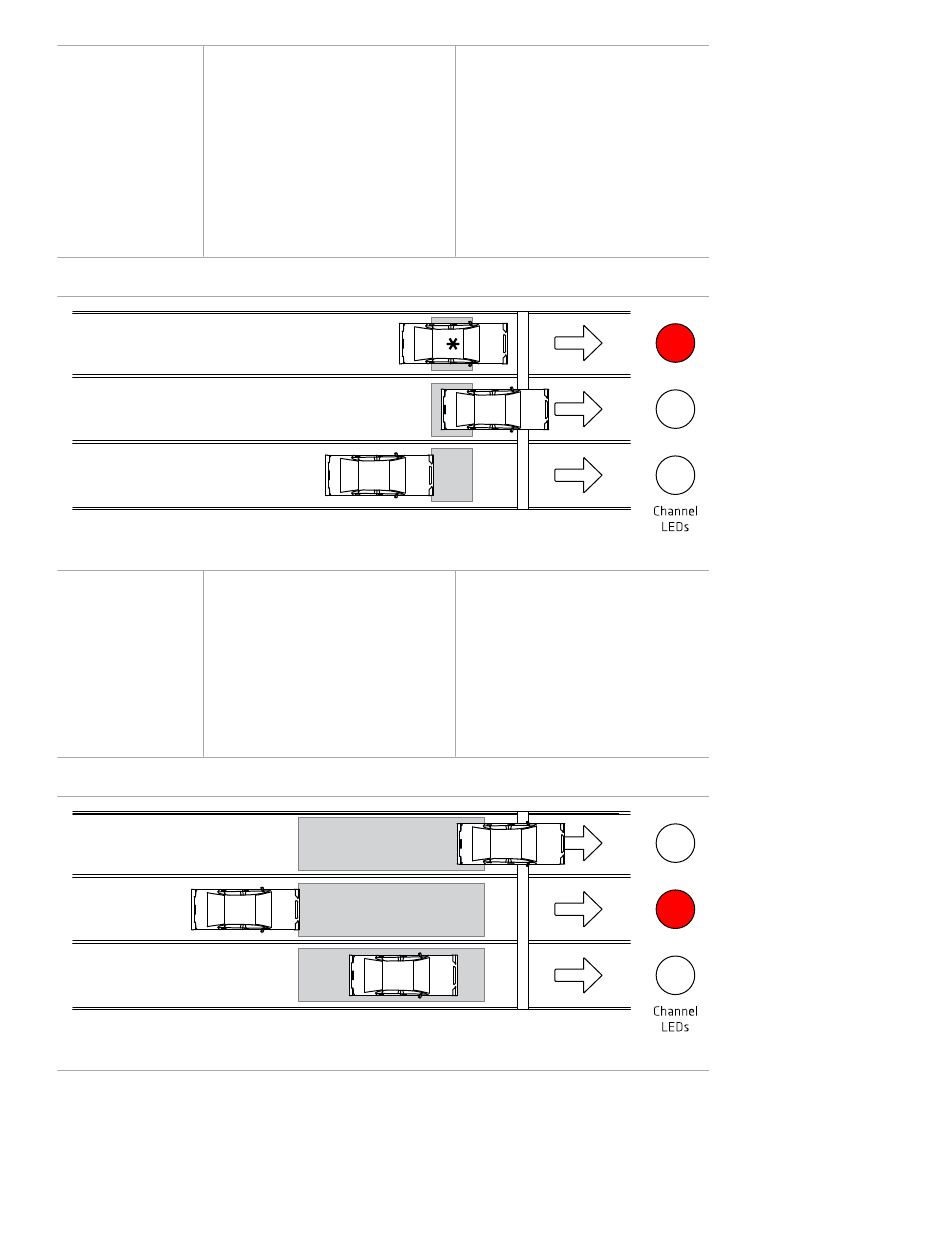

Figure 72. Counting Channel
Figure 73. Pulse Channel
Is activated as soon as the
leading edge of a vehicle
breaks the plane of the
leading edge of a zone. If
there are no delay or extend
settings, the zone will
remain activated until the
vehicle has exited the zone.
Is activated when the
middle of the vehicle
crosses the leading edge of
the zone. The ouput stays
on for the duration of the
Pulsed Channel Width
setting.
Chapter 7: Configuring Zones & Channels
65
•
