Note. It is
recommended that
you change delay/
extend settings in
the traffic controller
before changing delay/
extend settings in
the SSMA software.
Note. The channel
column shows the
channel number and
type (N=normal,
C=count, P=pulse).
To edit channels
9—16, click anywhere
in the table and
drag to the left.
62
SmartSensor Matrix User Guide
•
Changing delay/extend settings for a zone

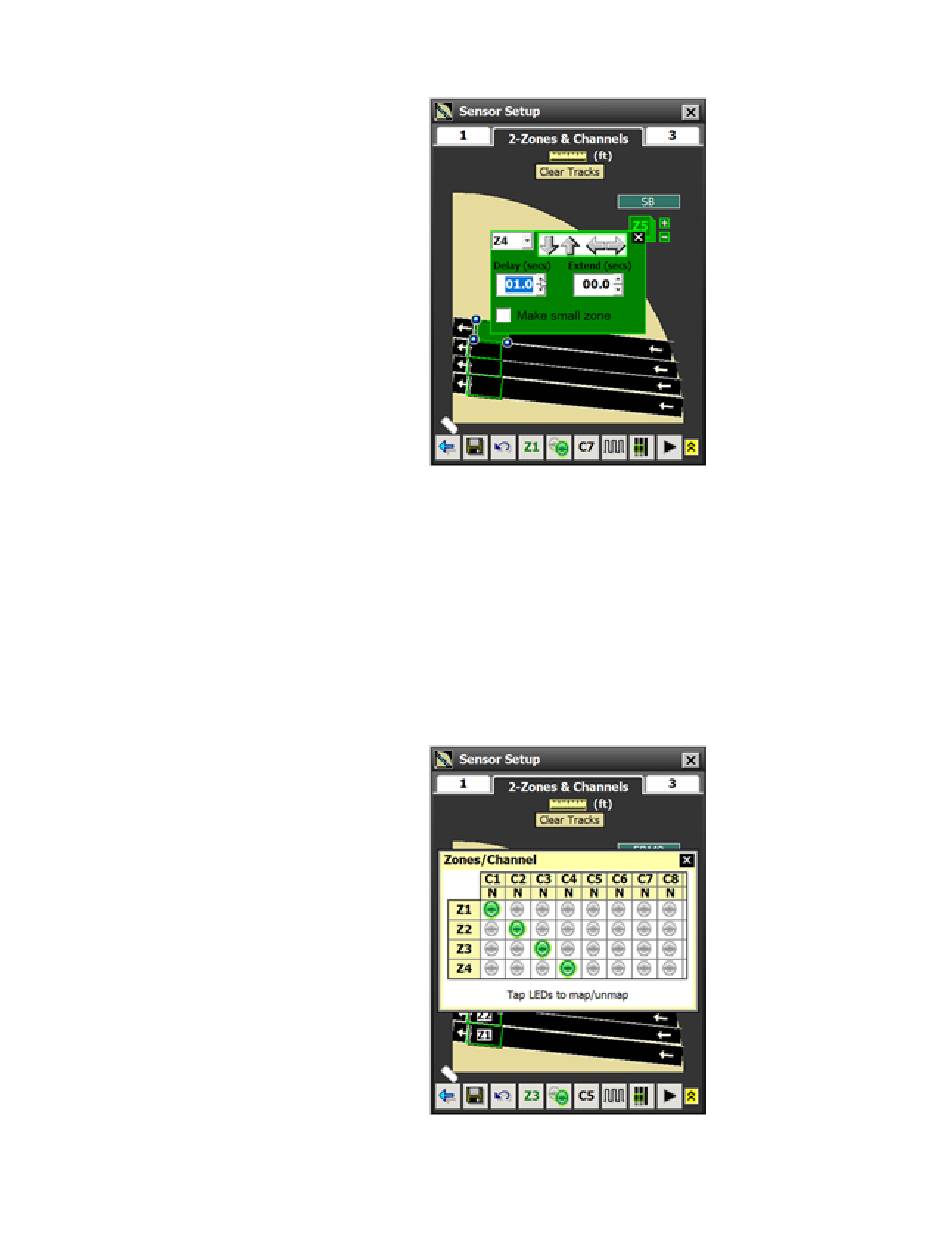

Figure 68. Changing zone delay/extend time
1 Select the zone you want to change.
2 Click Edit Zone in the menu bar.
3
Use the up/down arrows to change the delay/extend time.
Channels
Mapping zones to channels
Figure 69. Zone/Channel mapping
