Note. Negative values
will lower the rejection
threshold in order to
increase sensitivity;
positive values will
increase the rejection
threshold in order to
decrease sensitivity.
76
SmartSensor Matrix User Guide
•
1 Click the Edit Thresholds button. This will change the color of the sen-
sor's footprint and allow you to change the sensitivity of certain areas in
the footprint.
2
Click anywhere within the sensor's footprint and the Sensitivity
window will appear.
3 Click Zoom In.
4
Click and drag on the threshold region(s) you would like to change
and the sensitivity slider window will appear.
5 Click the arrow buttons to change the sensitivity (in decibels).
Resetting all thresholds
1 Click the Edit Thresholds button. This will change the color of the sen-
sor's footprint and allow you to change the sensitivity of certain areas in
the footprint.
2
Click anywhere within the sensor's footprint and the Sensitivity
window will appear.
3 Click Reset All.

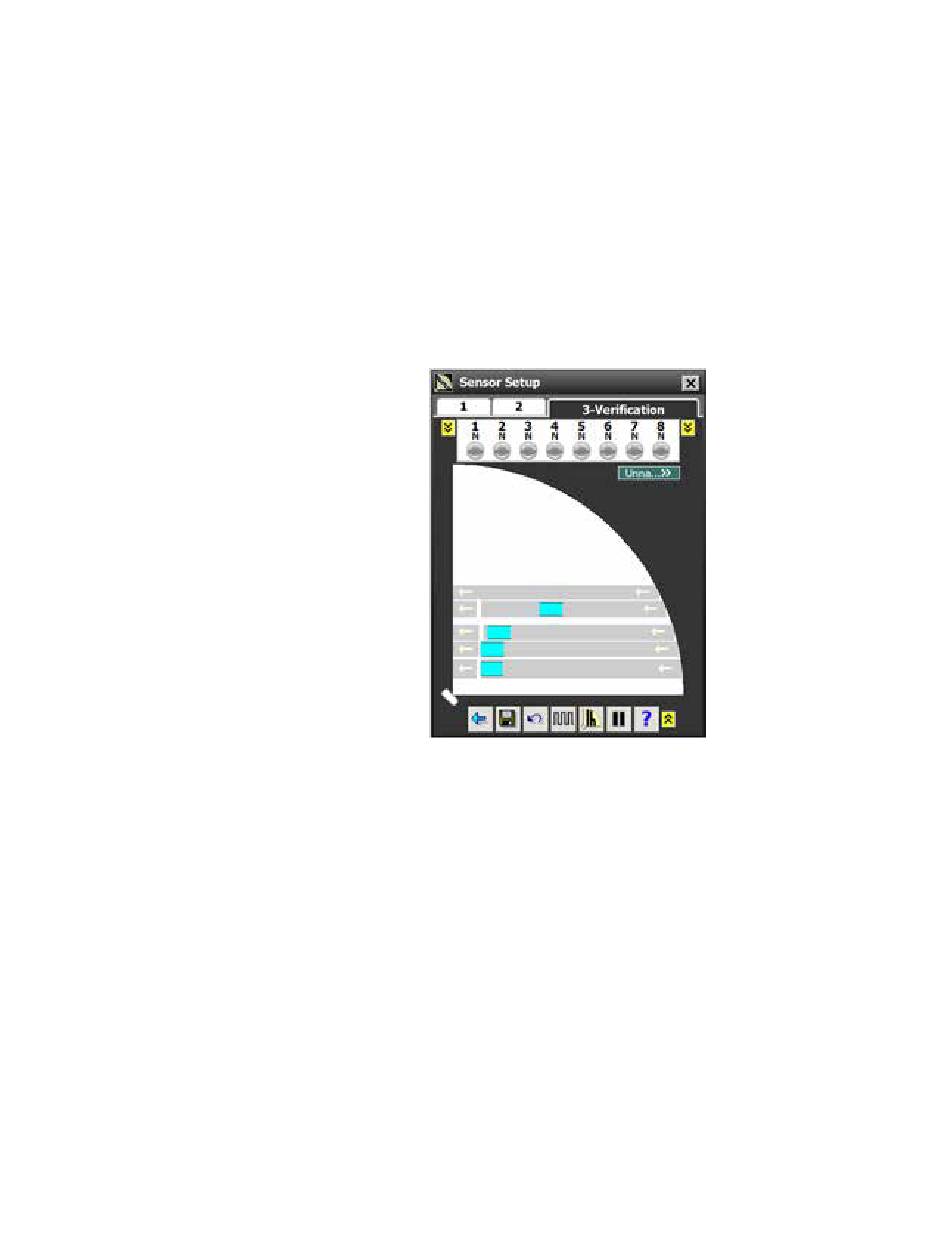

Figure 88. Resetting all thresholds
