Wavetronix SmartSensor Matrix User Manual page 65

64
SmartSensor Matrix User Guide
•
Extend
Continues a channel output
until the time specified runs
out.
DI
Allows you to map inputs
(Detector to the intersection phase
Input)
in the controller. The
default is "00, " which
means the detecter input is
unassigned.
Φ Allows you to enter
(Phase)
the phase the sensor is
monitoring. The default
is "00, " which means the
phase is unassigned.
Invert
Allows the channel output
to be inverted.
Min Speed
Lets you set a minimum
speed for the channel.
Max Speed
Lets you set a maximum
speed for the channel.

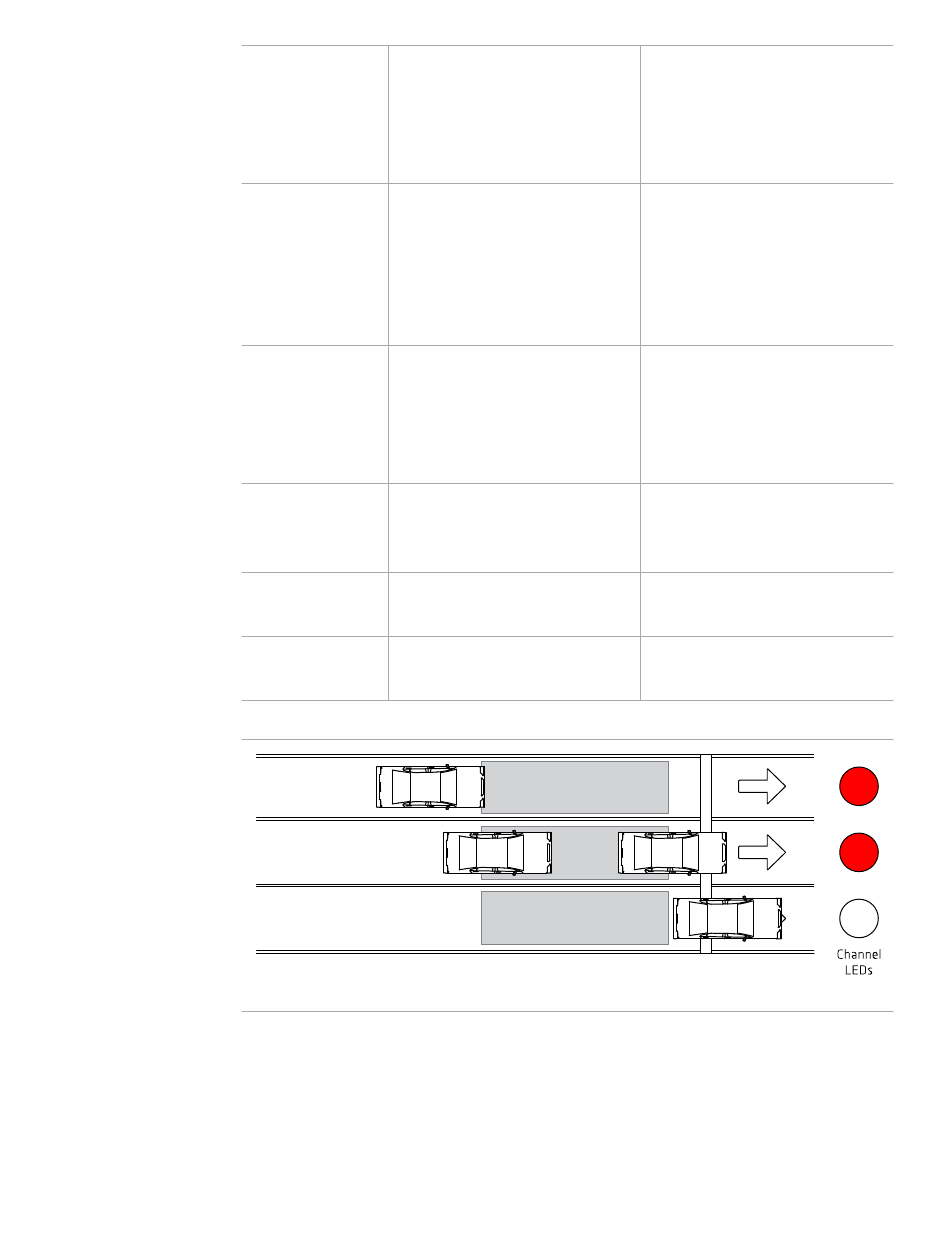

Channel Type – Normal Channel
Figure 71. Normal Channel
Click anywhere in the
white box and use the up/
down arrows to change the
extend setting in the Output
Settings window.
Purely for reference—
does not affect sensor or
controller performance.
Purely for reference—
does not affect sensor or
controller performance.
When checked, the channel
output will remain on until
a vehicle is detected.
Select a minimum speed
from the drop-down list.
Select a maximum speed
from the drop-down list.
