Using the menu bar
Setting Description
To Main Menu Takes you back to the main
screen.
Save Config
Saves threshold changes.
Channel Info
Shows channel settings
and lets you troubleshoot
channel outputs.
Edit
Lets you edit the sensor's
Thresholds sensitivity .
Play/Pause Plays/pauses tracks in the
Traffic
edit area.
Help
Shows a list of channel
types for reference.
Shows a description of each
menu bar button.
Lane Verification
Verifying your configuration
Verifying lanes and outputs means comparing the detection data in
the SSMM software with the actual traffic at the intersection; you can
observe the intersection traffic yourself, or record it using a separate
device. Make sure the sensor is detecting moving and stopped vehicles
in all lanes.

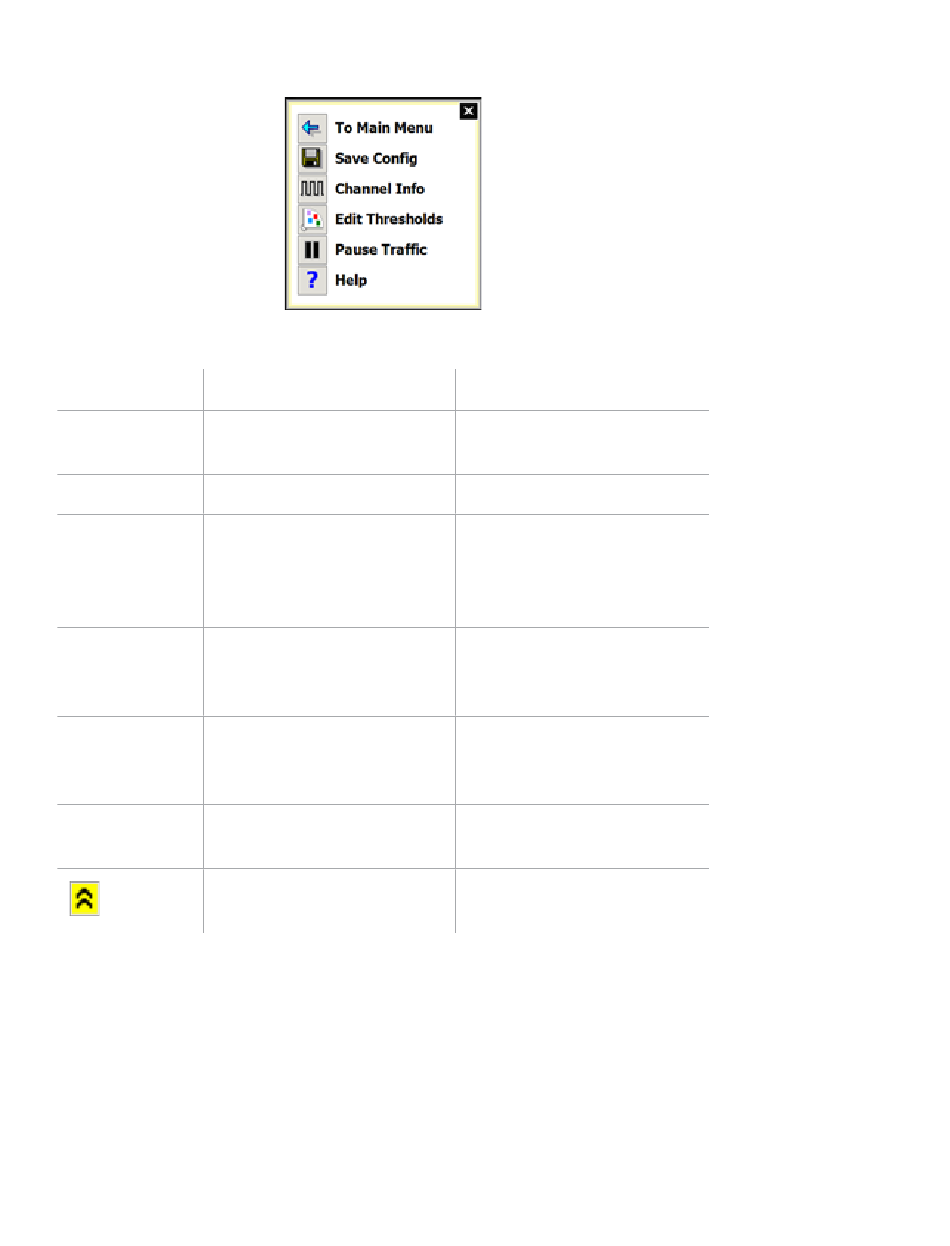

Figure 80. Verification menu bar
Details
N/A
N/A
Use this to verify channel
settings, counts and channel
outputs. Click and drag to
see all 16 channels.
Use this to increase or
decrease the sensitivity of
the sensor's detection.
Use this when a vehicle is in
a certain position you' d like
to use as a reference.
N/A
N/A
