Wavetronix SmartSensor Matrix User Manual page 56

Zones & Channels tab
Flags
Clear Tracks
button
Edit Area
Zone Stack
Zone
Sensor
Tracks
The Sensor Setup screen shows the sensor's 140-ft. (42.7-m), 90º field of
few. Vehicle detections are represented in the software by tracks, or blue
dots, along the sensor's footprint. You can clear these tracks from the
screen by clicking Clear Tracks.
Measuring tools
Click a zone and then click the ruler icon to see that zone's dimensions.
A red and blue flag will appear inside the zone and can be used to mea-
sure the distance from that zone to anywhere in the edit area. The flags
at the top of the screen can also be dragged anywhere in the edit area to
find the distance between two objects in the sensor's footprint.

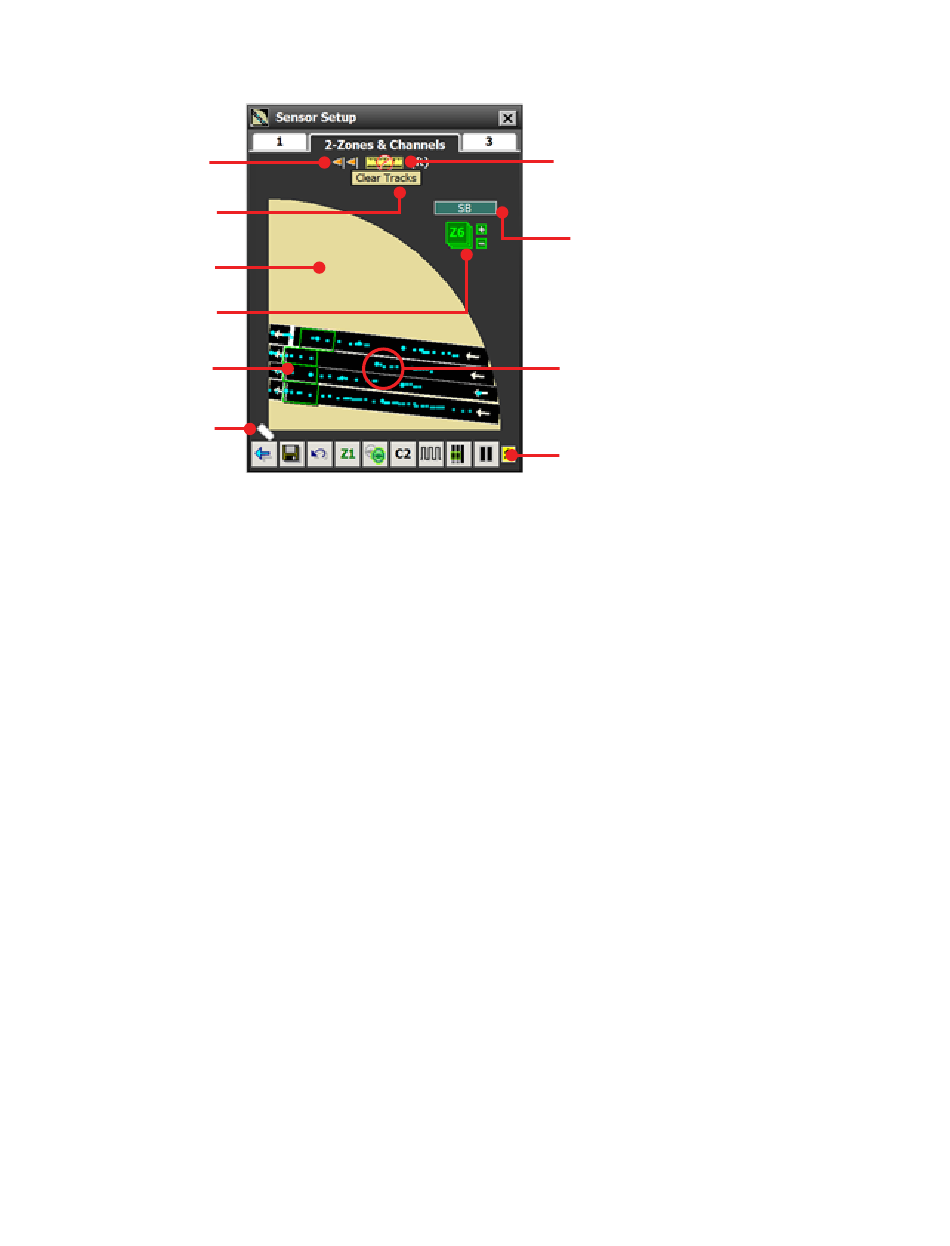

Figure 59. Zones & Channels tab
Ruler
Approach
name
Tracks
Menu bar
Chapter 7: Configuring Zones & Channels
Note. Each
SmartSensor Matrix
supports up to 16
zones and 16 channels.
55
•
