Note. To see which
rack cards are
connected to this
sensor's data port,
turn the Signal Rack
Cards toggle switch on
and the rack card LEDs
will begin flashing.
32
SmartSensor Matrix User Guide
•
If you want, you can back up those virtual sensor settings; that will
create a sensor setup file which can then be restored to an actual sensor.
More on the backup/restore tools in chapter 10.

Troubleshooting a connection

Some or all of the following may help you troubleshoot:
Make sure that all power and communication wiring is correct.
˿
Check the port settings.
˿
Make sure the Click 65x is configured properly.
˿
If a failure occurs repeatedly, contact support@wavetronix.com.
˿

Advanced communication tools

Once you've made a connection, the Communication button of the main
screen should now be animated, with arrows moving past each other.

Viewing sensor information

1
Before connecting to a sensor, double-click on the sensor row. This
will bring up the Sensor Info window, with information about the sen-
sor's location. These settings will be explained further in Chapter 6.
2 If you desire, click the Connect button to connect to this particular
sensor.

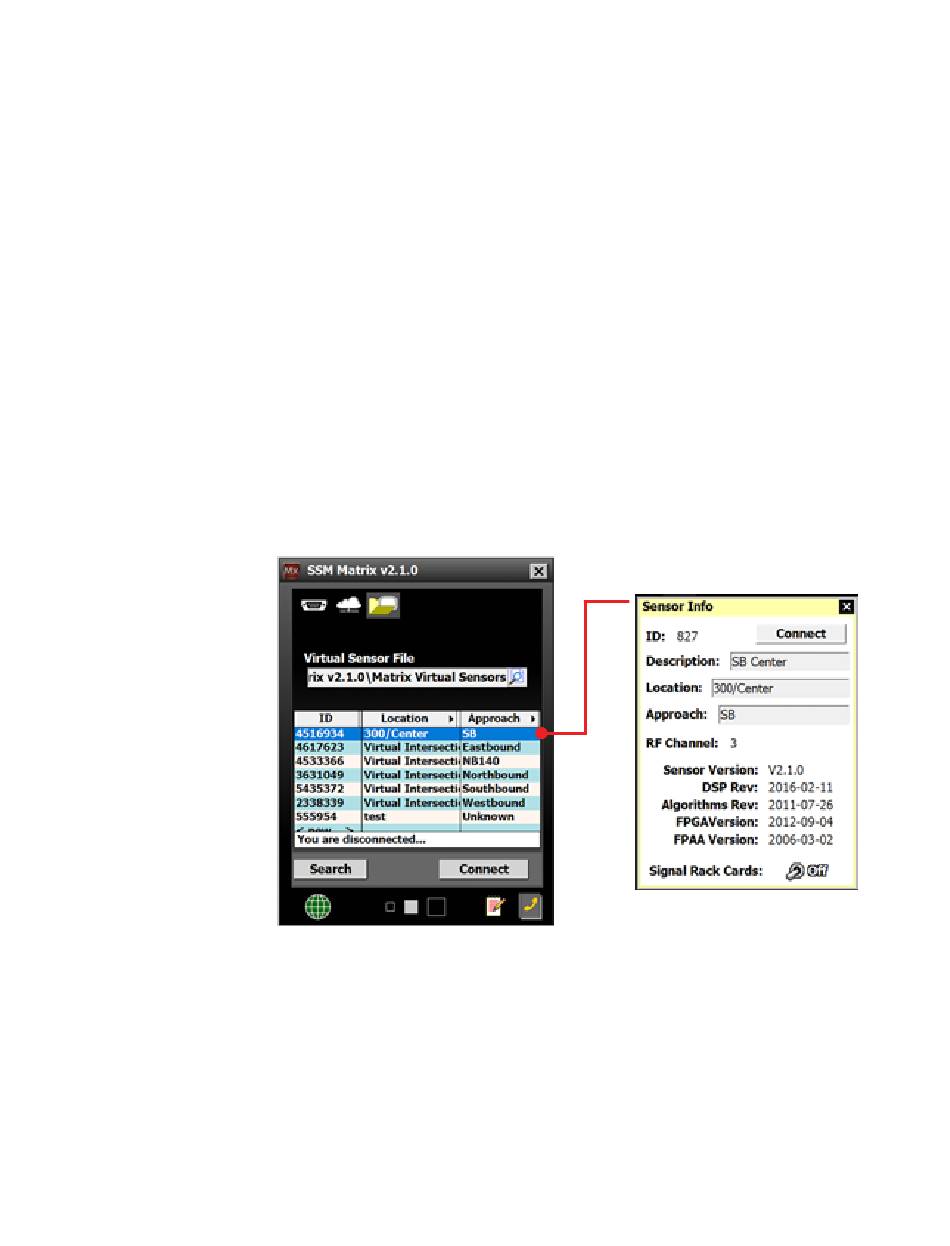

Figure 31. Sensor Info window
