block. Insert a small screwdriver into the square hole above it, and
rock upwards to secure the conductor in place.
3
Insert one end of the homerun cable (the cable that runs to the
traffic cabinet) into the leftmost cable grip. Twist the cable grip to
tighten.
4
Follow the instructions in step 2 to land each conductor into the cor-
rect spots in the terminal blocks.

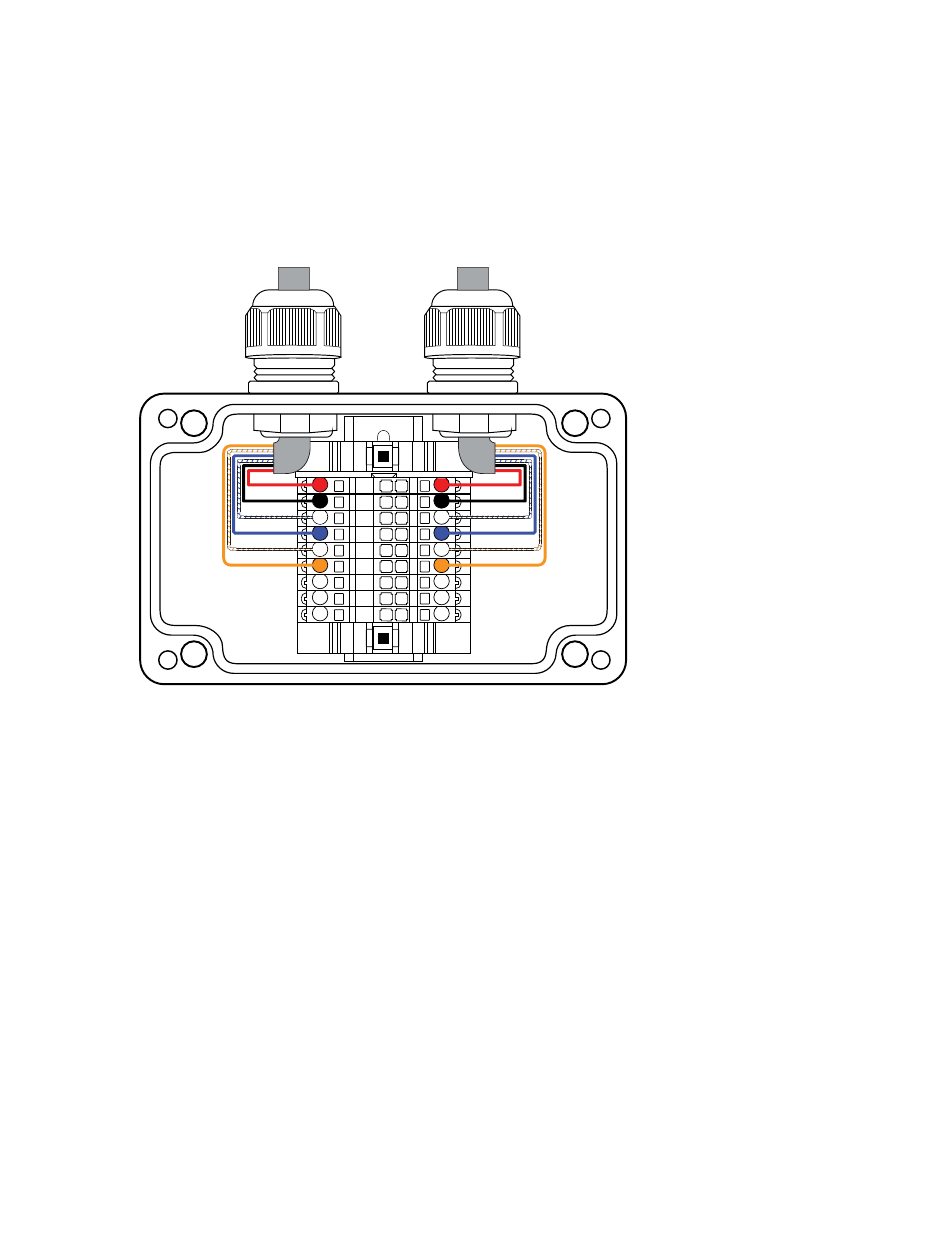

Figure 15. Junction box wiring
