Adding a zone to the road
1
Click and drag a zone from the zone stack to the edit area.
2
Place the zone anywhere along the lane(s).
Zone stack
Click the plus/minus buttons by the zone stack to cycle through zones. Place
zones back in the zone stack by clicking and draging it off the edit area.
Moving a zone

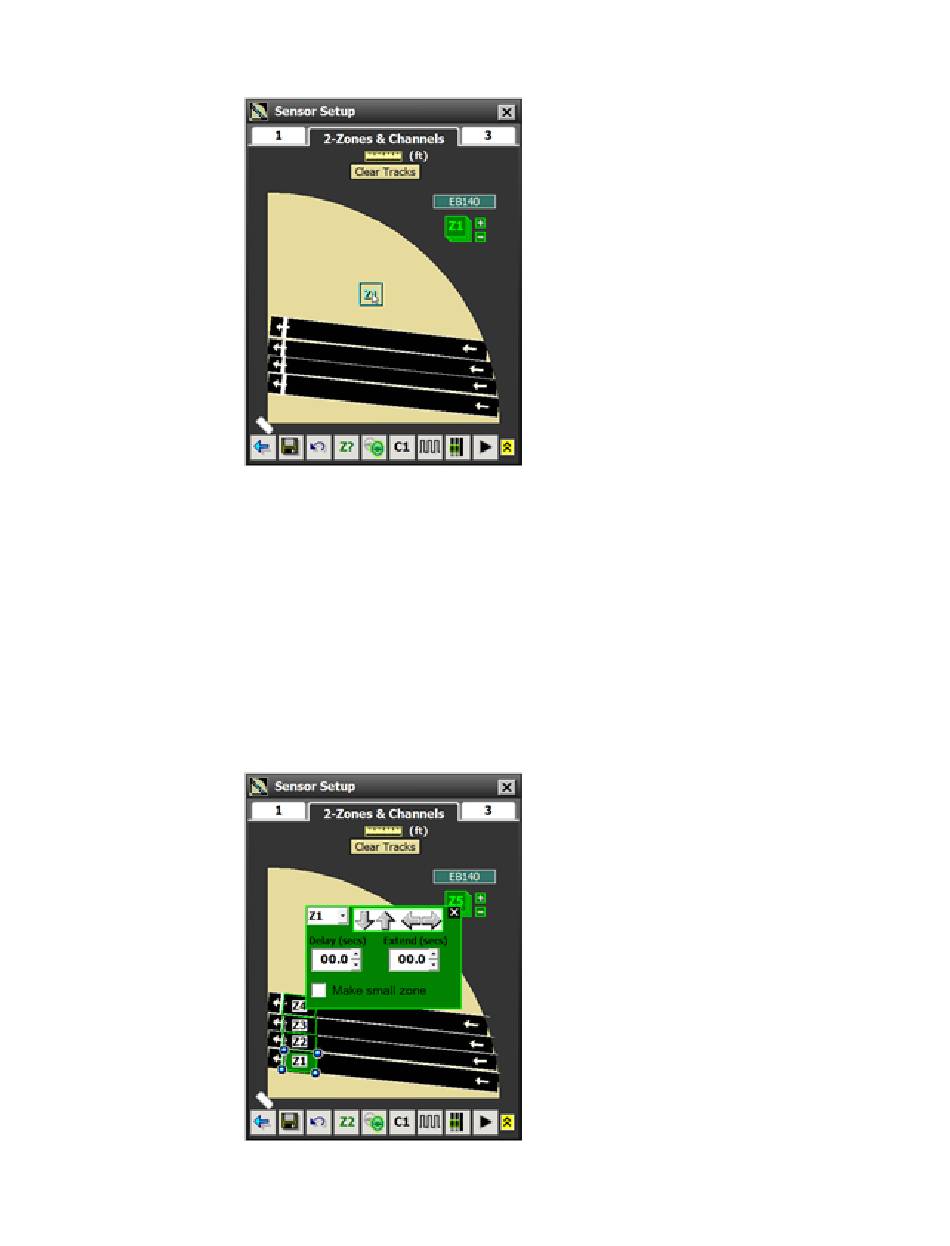

Figure 63. Placing zones
Figure 64. Editing zones
