Prepare the sensor while still on the ground: remove the large bolts

holding the end knuckle to the mount, then use the four small bolts

and lock washers to attach the knuckle to the sensor backplate.

SmartSensor Matrix

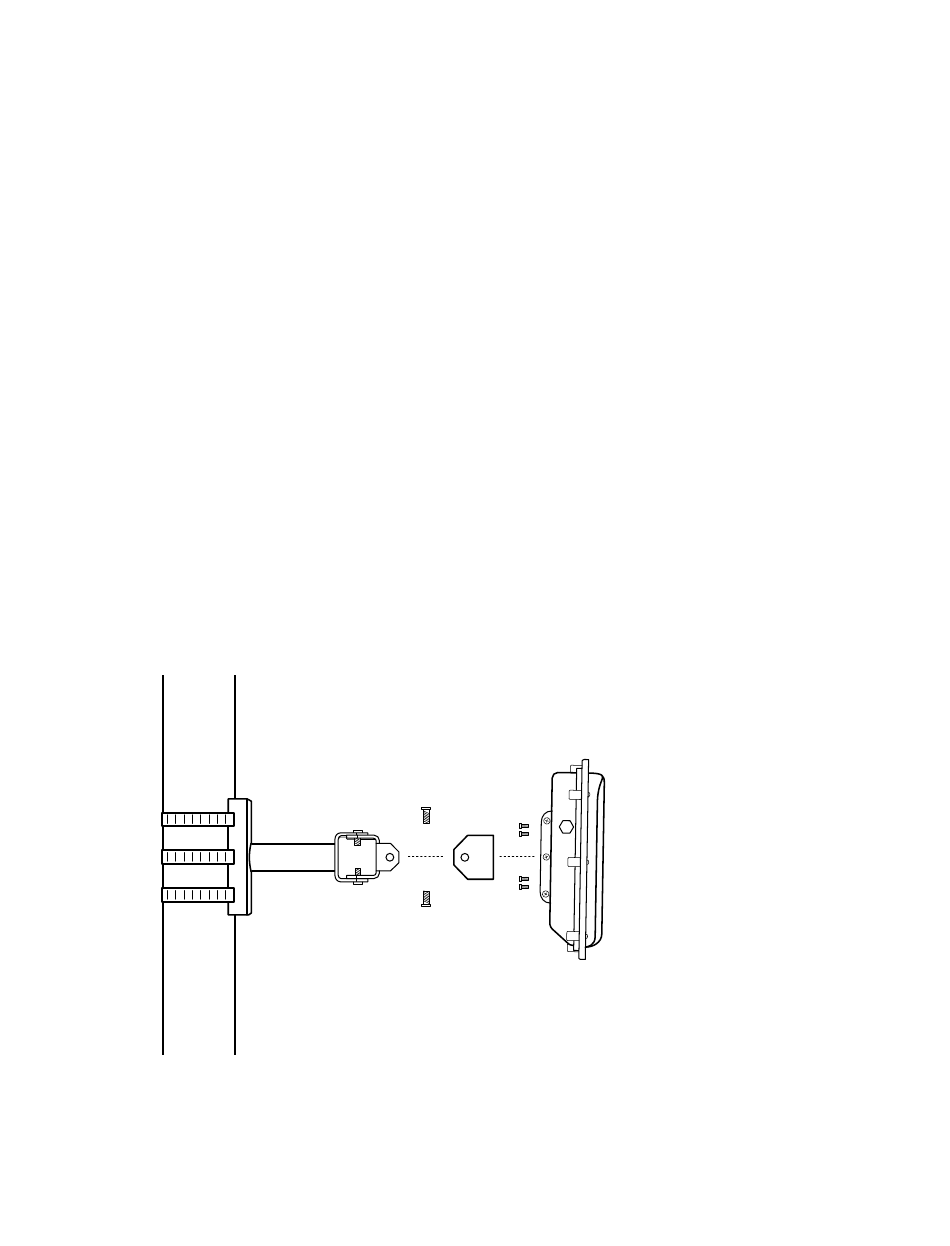

Figure 10. Mounting the sensor

Installing the

Chapter 2: Installing the SmartSensor Matrix

Note. Before attaching

the mount to the

pole, make sure

your cables are long

enough to reach the

sensor height and

to stretch across the

distance from the

sensor to the cabinet,

see SmartSensor

Matrix Cable Length

Recommendations in

the knowledge base

on the Wavetronix

website.

•
