This is not possible in parameter assignment mode.
In this manual, the protection mode ("+" or "-") and retentivity ("R" or "/") settings are only shown in the
displays where these can actually be changed.
Verification of the circuit program
This program branch for Q1 is now completed. xLogic shows you the output Q1. You can once again view
the circuit program on the display. Use the keys to browse the circuit program; that is, press or to move
from block to block, and to move between the inputs at a block.
Closing the programming mode
Although you were shown how to exit the programming mode when you created your first circuit program,
here is a reminder:
1. Return to the programming menu: Press ESC
2. Return to the main menu: Press ESC
3. Move the '>' cursor to 'Start': Press or
4. Confirm 'Start': Press OK
xLogic is back in RUN mode:

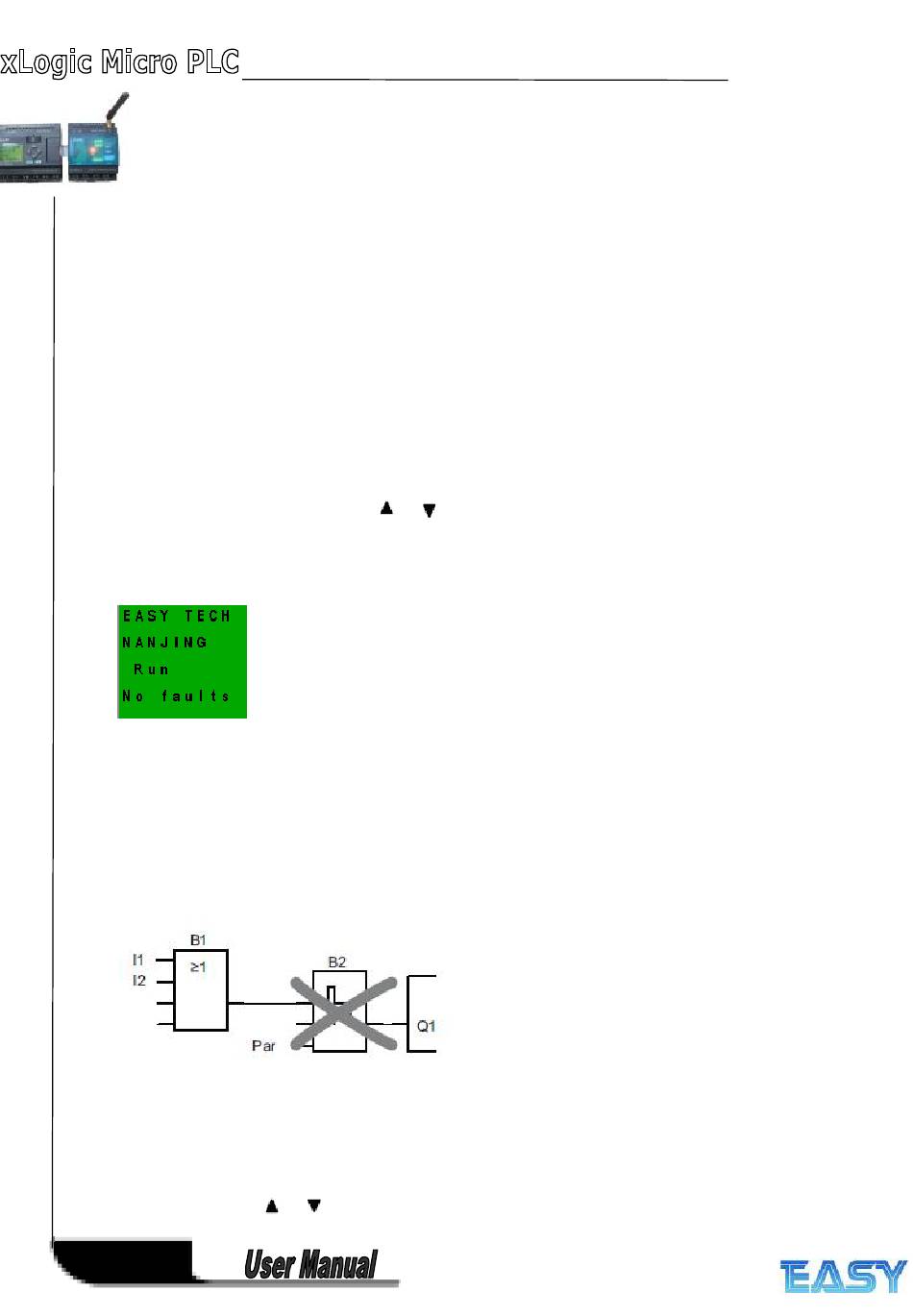

5.5.7 Deleting a block

Let us assume you want to delete the connection of block B2 from your circuit program and connect B1
directly to Q1.
Proceed as follows:
1. Switch xLogic to programming mode
(as a reminder, refer to the topic "The four golden rules for operating xLogic").
2. Select 'Edit': Press or
83
