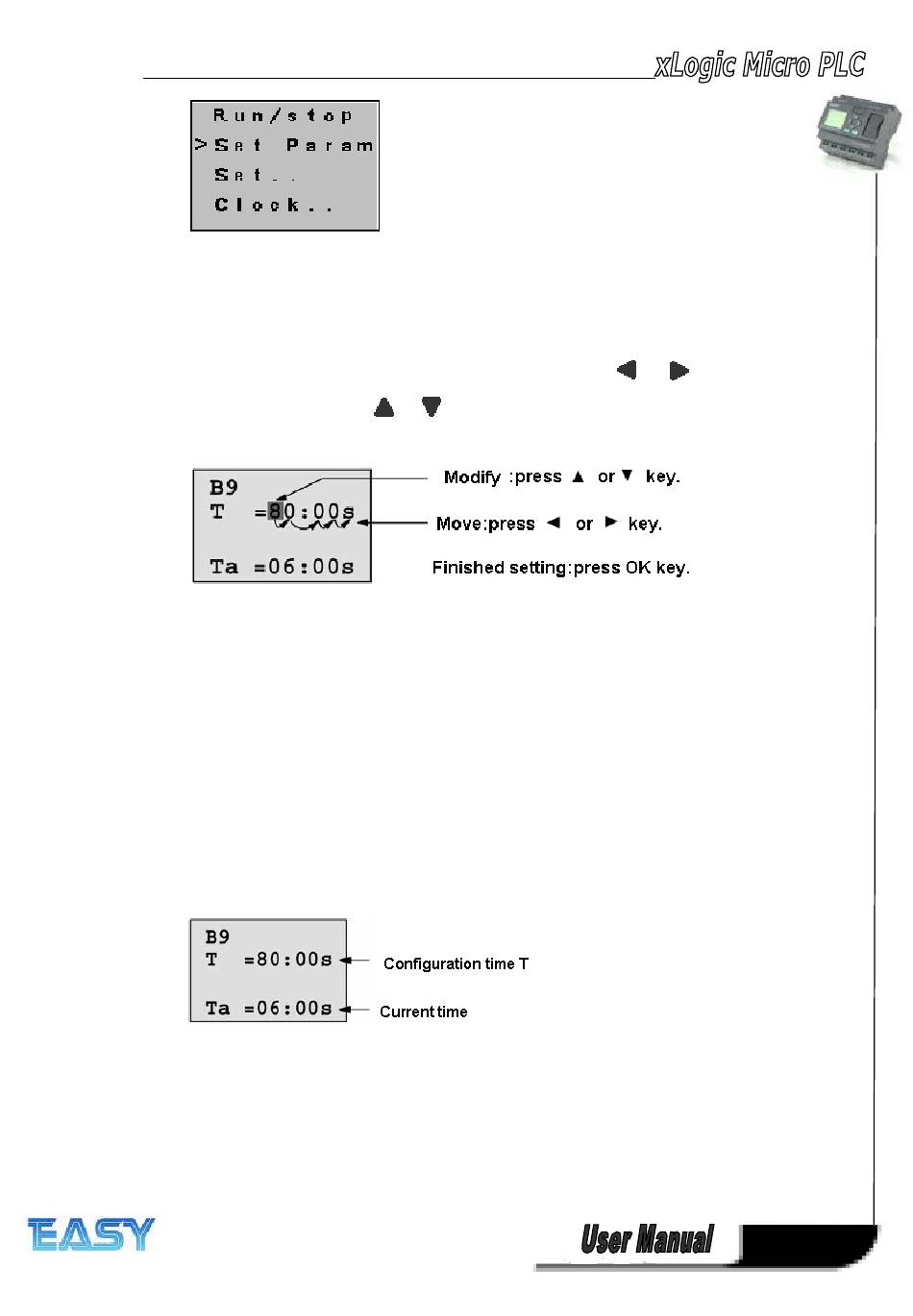

2. Confirm by pressing OK key.
B. then you can perform the below actions to modify parameter:
1. Move the cursor to the parameter to be modified: press
2. Modify value: press
3. Confirm the value after modification: press OK key.
Note:
When xLogic is running, not only time value but also time unit(S,M,H) can be
altered , but Besides alter time parameter at RUN time ,you can alter time
base(s=second, m=minute ,h=hour).
Current value of time T
View time T in parameter mode:
You are allowed to modify configuration time. Switch on/off time for a time segment.
In parameter mode, time segment figure of a timer:
or key.
or key.
