3.1 DIN rail mounting

Mounting

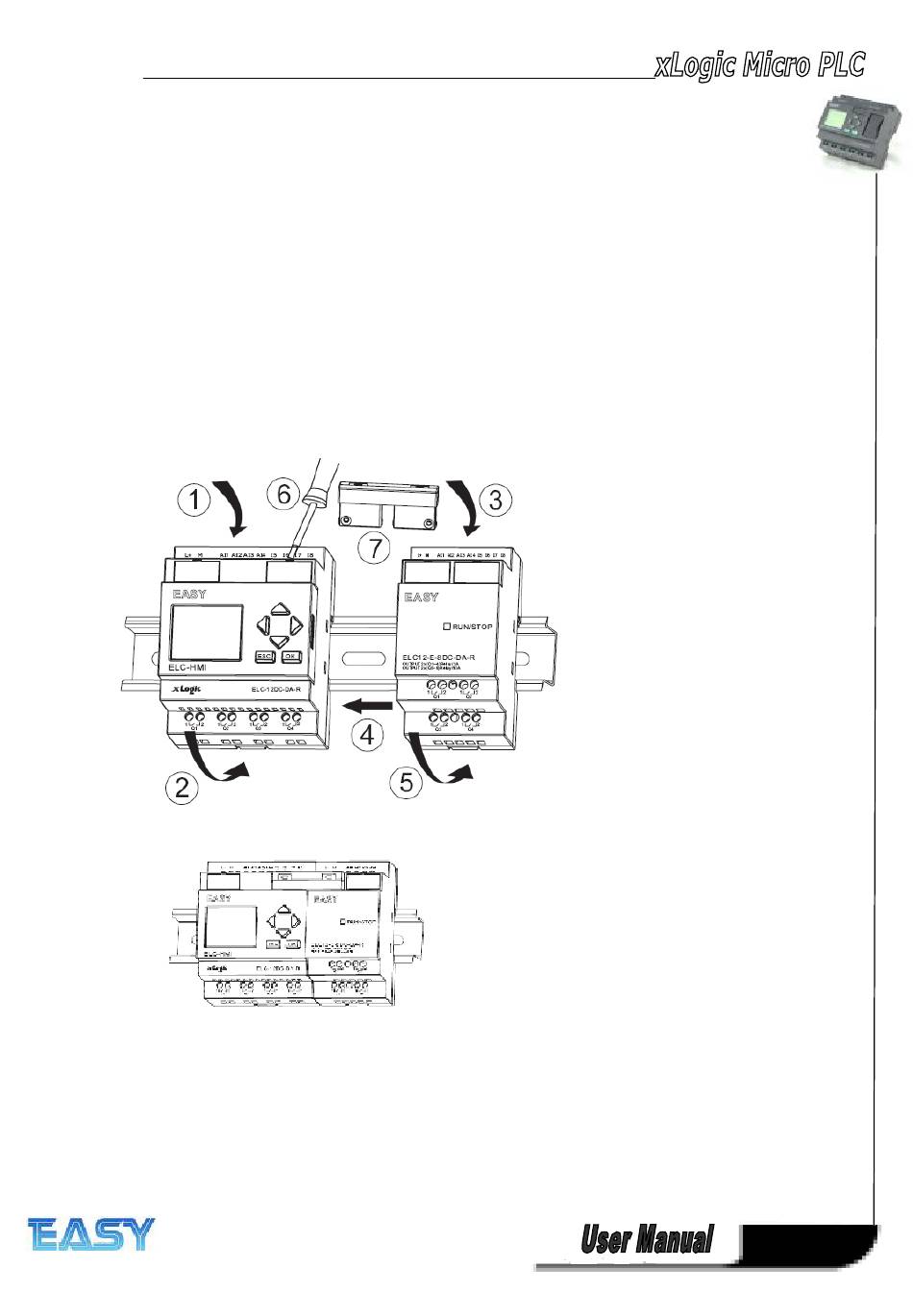

How to mount a xLogic module and a expansion module onto a DIN rail:
1. Hook the xLogic Basic module onto the rail.
2. Push down the lower end to snap it on. The mounting interlock at the rear must engage.
3. Hook the xLogic expansion module onto the rail
4. Slide the module towards the left until it touches the xLogic CPU.
5. Push down the lower end to snap it on. The mounting interlock at the rear must engage.
6. Remove the plastic cover in the expansion port of CPU and expansion module.
7. Plus the connection bridge
Repeat the expansion module steps to mount further expansion modules.
Notes: 1. ELC12-E extensions connect with ELC-12 CPU by ELC12-CB-A bridge or ELC12-CB-B
connection cable (3 meters)
2. ELC-E extensions connect with ELC-18 ,ELC-22 or ELC-26 CPU directly by the
connector with flat cable of the expansion module
