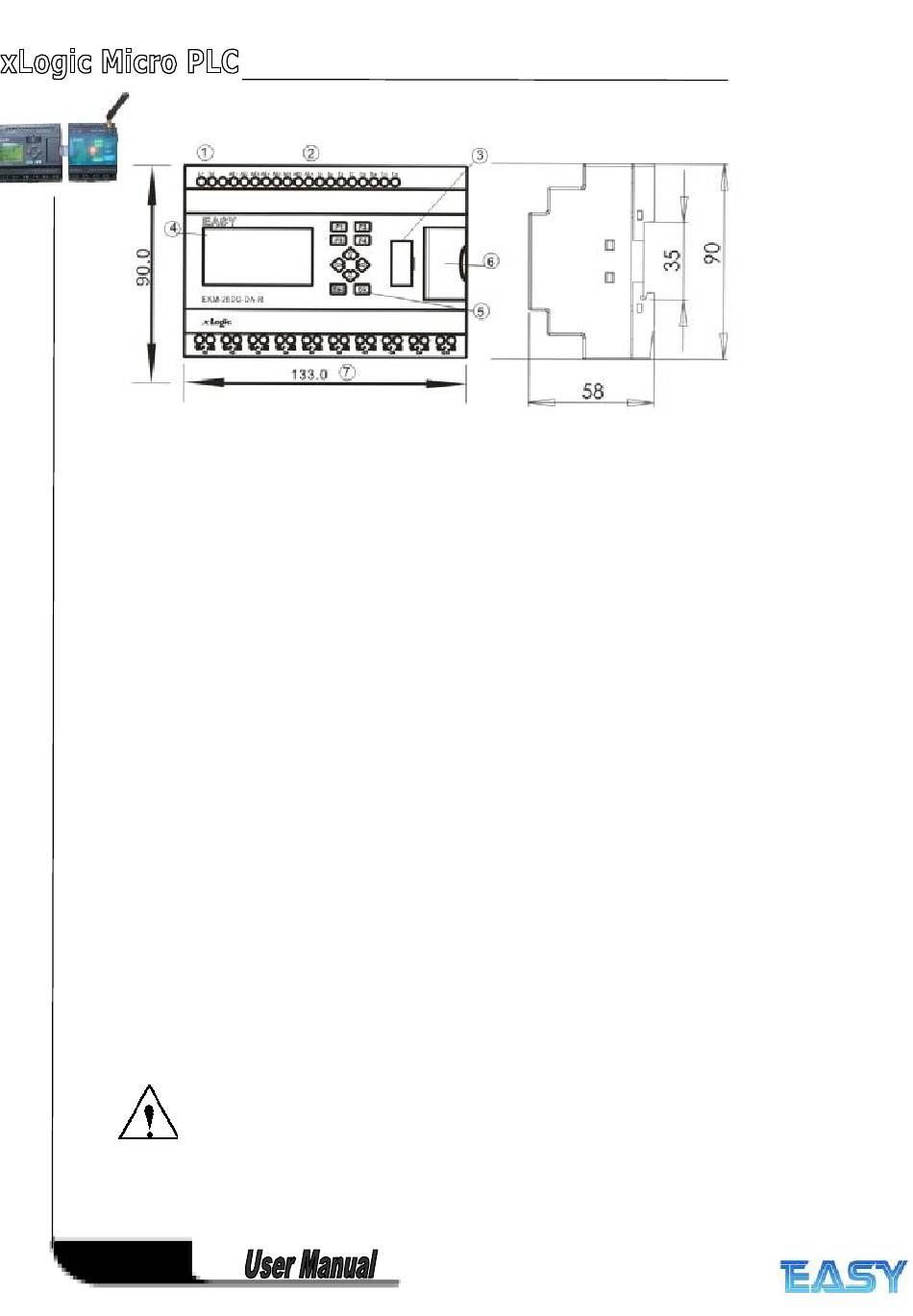

5. ELC-22 and ELC-26 series CPU
1. Power supply 2.Input
port 7.Output
Dimensions
The xLogic installation dimensions are compliant with DIN 43880.
xLogic can be snap-mounted to 35 mm DIN rails to EN 50022 or on the wall.
xLogic width:
ELC-12 Series CPU has a width of 72mm.
l
ELC12-E expansion module and ELC-6 series CPU have a width of 48mm
l
ELC-18 Series CPU has a width of 95mm.
l
ELC-E expansion modules have a width of 72mm.
l
ELC-22 and ELC-26 Series CPU has a width of 133mm.
l
Note
The figure below shows you an example of the installation and removal of an ELC-12 CPU and one
expansion module ELC-12 CPU.
W a r n i n g
Always switch off power before you "remove" and "insert" an expansion module.
25
3. Program/RS232 port 4.HMI/LCD panel 5.keypad

Chapter 3 Installing/removing xLogic

6.Extension/RS485
