Press "ESC"...

5.5.6 Second circuit program

Up to this point, you have successfully created your first circuit and assigned it a name and, if desired, a
password. In this section we will show you how to modify existing circuit programs and how to use the
special functions.
Using this second circuit program, we will show you how to:
● Add a block to an existing circuit program.
● Select a block for a special function.
● Assign parameters.
Modifying circuits
We shall use the first circuit program as a basis for the second, with some slight
modifications.

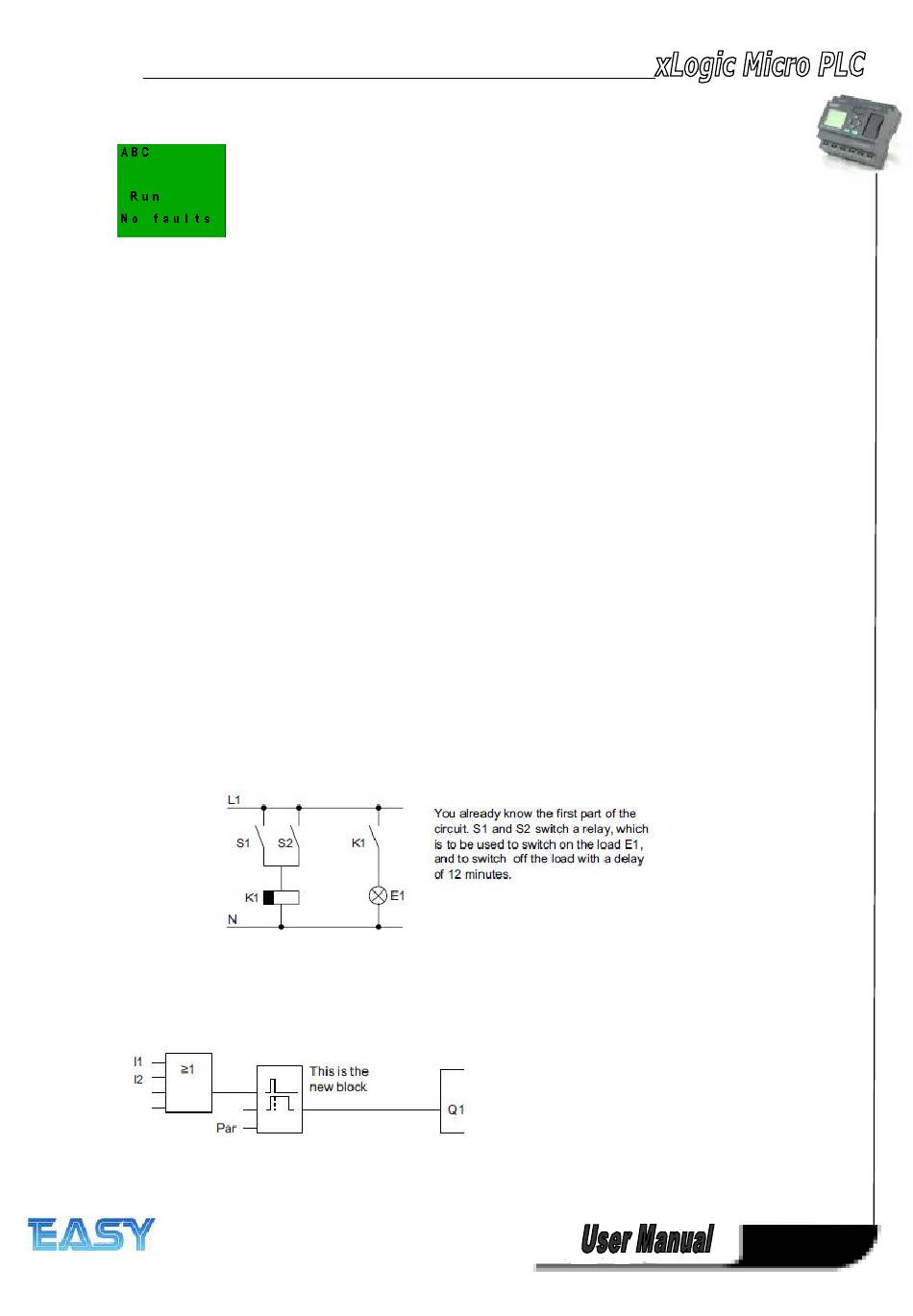

First of all take a look at the circuit diagram for the second circuit program:
This is the circuit program layout in xLogic:
78
