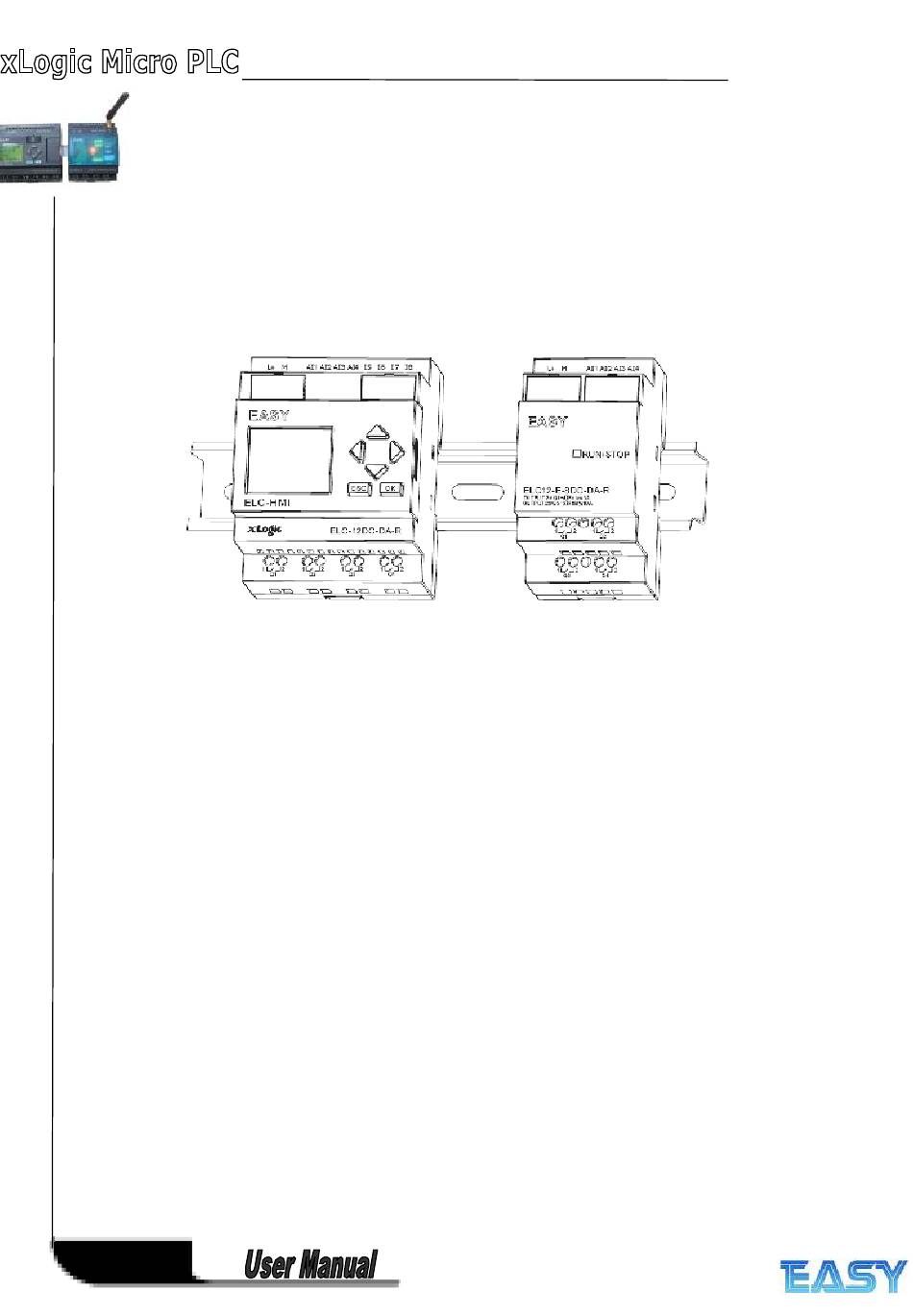

Removal
To remove xLogic:
....... if you have installed only one xLogicr Basic:
1. Insert a screwdriver into the eyelet at the bottom of the slide interlock and move the
latch downward.
2. Swing the xLogic Basic off the DIN rail.
....... if you have connected at least one expansion module to xLogic Basic:
1. Remove the connector
2. Slide the expansion module off towards the right.
3. Insert a screwdriver into the eyelet at the bottom of the slide interlock and lever it
downward.
4. Swing the expansion module off the profile rail.
Repeat steps 1 to 4 for all other expansion modules.

3.2 Wall-mounting

For wall-mounting, first slide the mounting slides on the rear side of the devices towards the outside. You
can now wall-mount xLogic by means of two mounting slides and two ØM4 screws (tightening torque 0.8
to 1.2 Nm).
