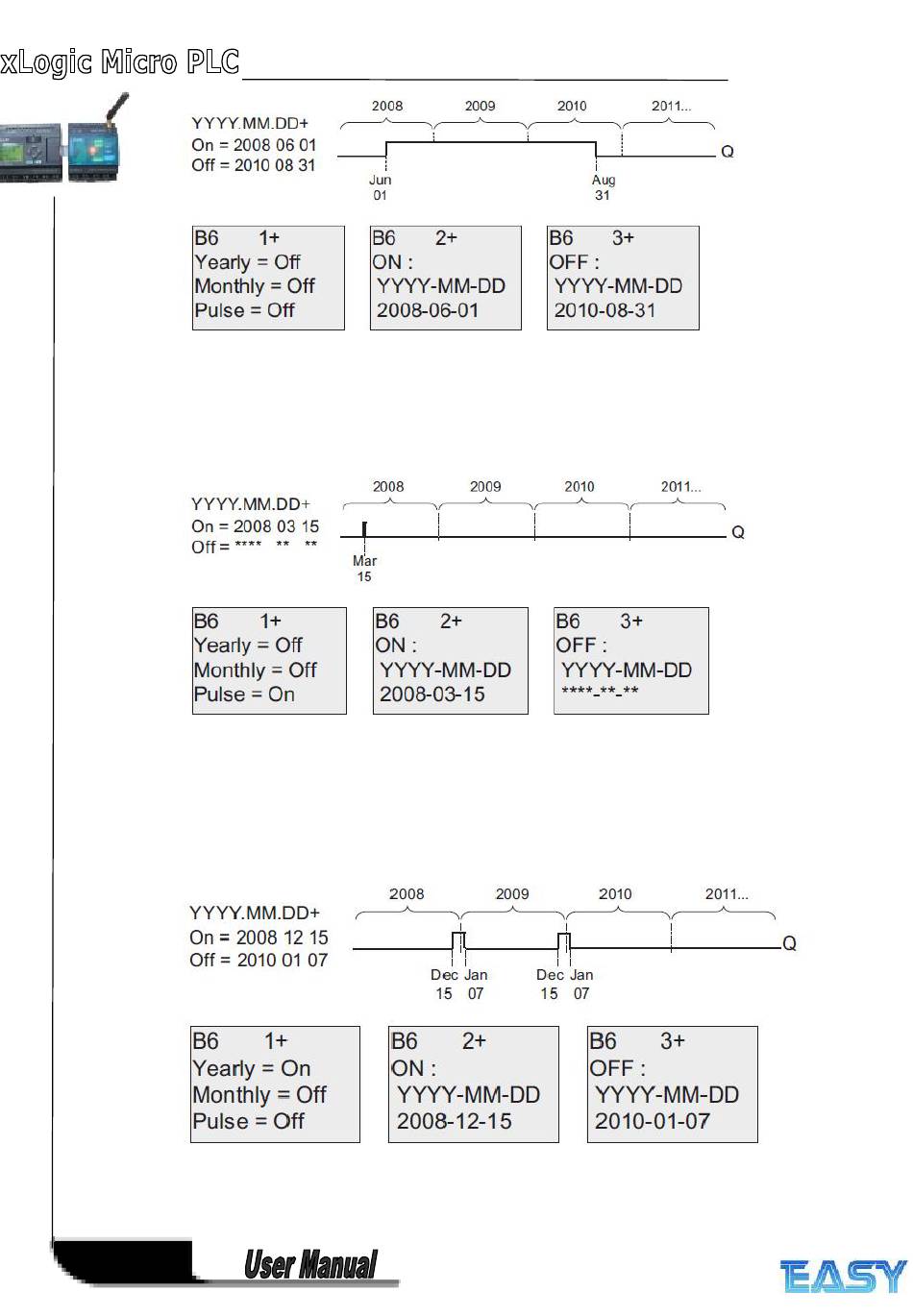

Example 6: Yearly mode off, Monthly mode off, Pulse selected, On Time = 2008-03-15, Off Time =
****-**-**: On March 15, 2008 the timer output switches on for one cycle. Because the timer does not
have a monthly action or yearly action, the timer output pulses only one time
at the specified On Time.
Example 7: Yearly mode on, Monthly mode off, Pulse off, On Time = 2008-12-15, Off Time =
2010-01-07: On December 15 of 2008 and 2009, the timer output switches on and remains
on until January 7 of the following year. When the timer output turns off on January 7, 2010 it
does NOT turn on again the following December 15.
Example 8: Yearly mode on, Monthly mode on, On Time = 2008-**-01, Off Time = 2010-**-
