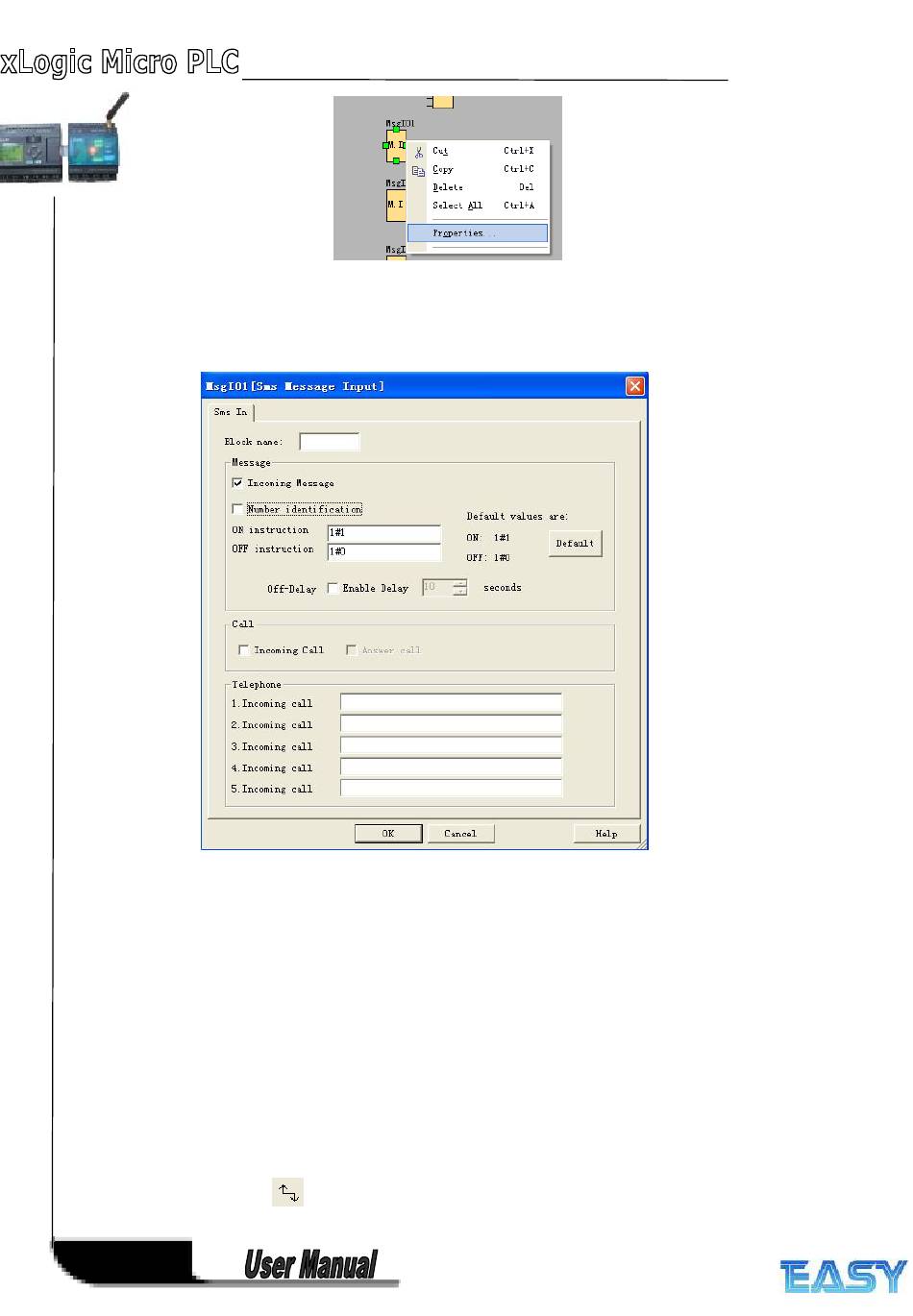

Fig 7.10.2 Block edit menu
2. Property dialogue box, as shown in Fig 7.10.3, to setup each item of content according to
what you need, you also could click "Help" to observe the detail instruction.
Fig 7.10.3 property box
Note: Different block has different property setup, especially the property of special function
module. Please read chapter 6, the explanation to refer the detailed setup.

6.9.2.3 Setup link

After put all the blocks needed in protracting function graph, and set up properties as needed,
it's necessary to set up link according to logic control relation and make it an integrated
function diagram.
Operation Method:
1. Pitch on shortcut key , when the mouse becomes the shape of a pen, it can be used to
