Calculation rule
Q = 1, for (Ax – Min) / (Max – Min) of time period PT
Q = 0, for PT – [(Ax – Min) / (Max – Min)] of time period PT.
Note: Ax in this calculation refers to the actual value Ax as calculated using the Gain and Offset. Min and
Max refer to the minimum and maximum values specified for the range
Special feature.

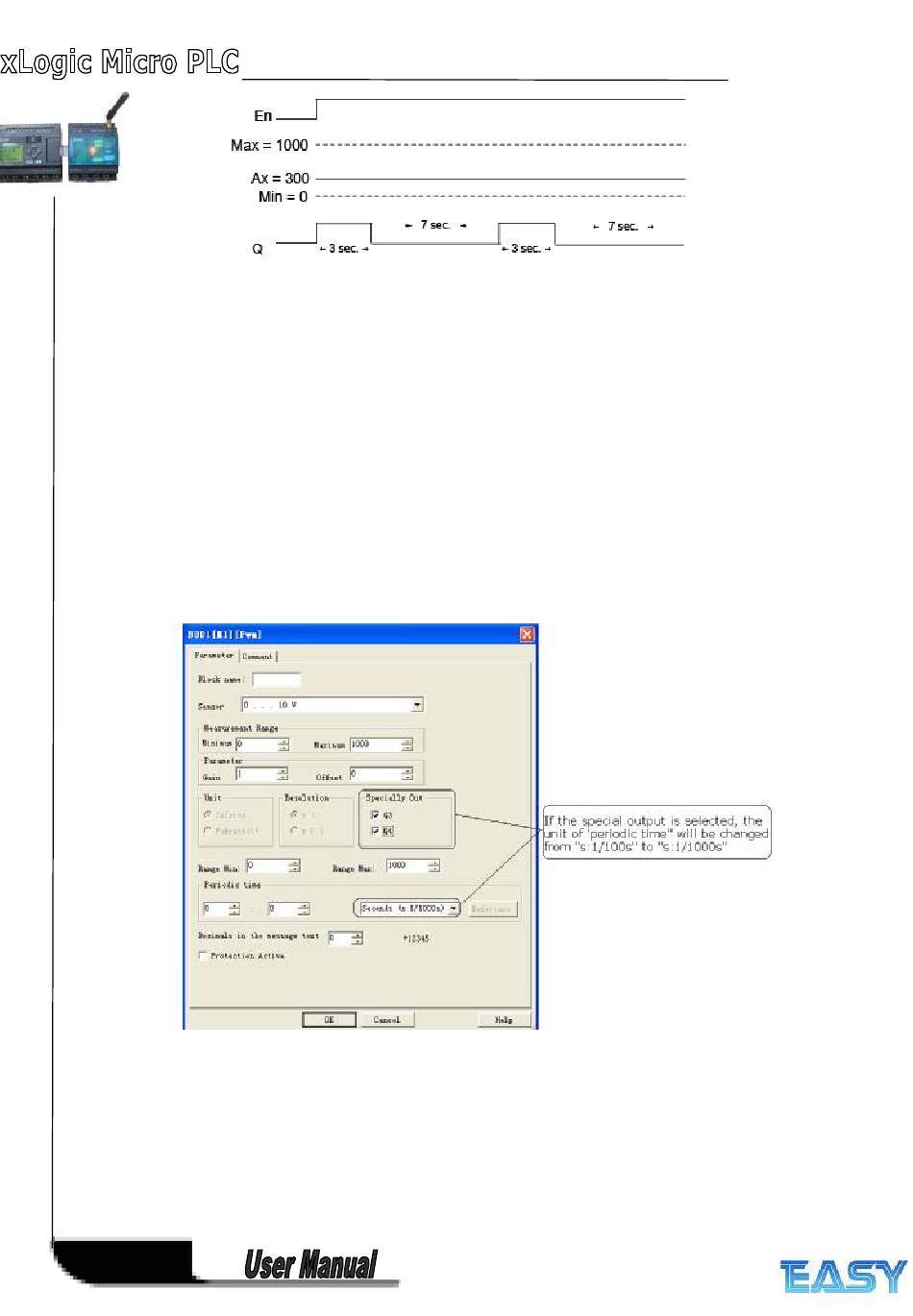

Generally, the output frequency could be up to 30Hz But the Q3,Q4 of ELC-12 type,Q5,Q6 of
ELC-18/22/26 (PNP transistor output) CPU could be up to 333 Hz and the property dialog box of PWM
function block setting as follows:
If the special output is selected in the property dialog box of PWM block, then the unit of "periodic time"
will be changed from s:1/100s to s:1/1000s, so if you input 3 (1/1000s) , then its frequency is 1000/3 Hz.
