Output Q
Parameter
You can configure a time hysteresis for each individual cam in parameter mode. For information about
how to modify, refer to chapter 4.2.2 please.

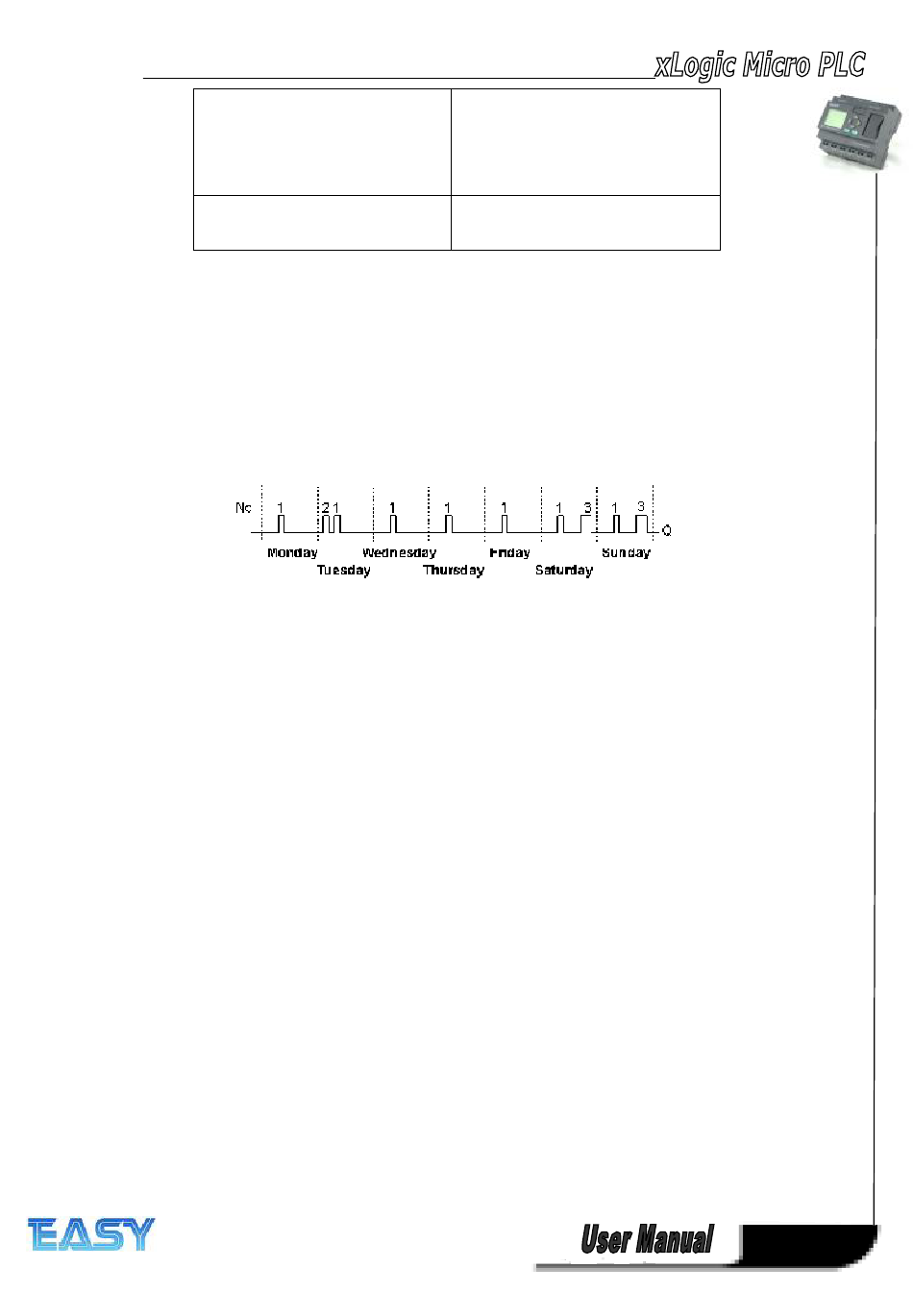

Timing diagram (three practical examples)
No1: Daily:
No2: Tuesday: 03:10 h to 04:15 h
No3: Saturday and Sunday: 16:30 h to 23:10 h
Description of the function
Each weekly timer is equipped with three cams. You can configure a time hysteresis for each individual
cam. At the cams you set the on and off hysteresis. The weekly timer sets the output at a certain time,
provided it is not already set.
The output is reset at a certain time, provided it is not already reset. A conflict is generated in the weekly
timer when the set on time and the set off time at another cam are identical. In this case, cam 3 takes
priority over cam 2, while cam 2 takes priority over cam 1.
The switching status of the weekly timer is determined by the status at the No1, No2 and No3 cams.
Parameter assignment screen form
View of the parameter assignment screen form, for example for Cam1 and the Pulse setting:
off triggers for each cam of the
weekly timer. The parameter
units are the days and the
time-of-day.
Q is set when the configured
cam is actuated.
06:30 h to 08:00 h
