※ Configuration: Select and open the Com port.
※ Disconnect Line: Cancel the connection of PC and xLogic.
※ Transfer: Transfer the following data between PC and xLogic.
PC-> PLC: Download the program to xLogic
PLC->PC: Upload the program from xLogic.
Password set: Set Password protection to xLogic
Get PLC Version: Get the current xLogic hardware version
Set Clock: Set RTC for xLogic
Get Clock: Get RTC from xLogic
Get Communication Type: Get current communication type
Set Communication Type: Set communication type for current xLogic
Set PLC's address: Set the current xLogic address
Get PLC's address: Get the address of current xLogic
Get PLC's scan time: Get the scan period of the xLogic for current program
Summer time/Winter time: Activate/disable the conversion of the summer/ winter time
Set Extended module: Activate/disable the expansion port of xLogic (Only applied to
Standard ELC-12 series CPU)
※Simulation: simulate the xLogic program.
※ Select Hardware: Select the model of xLogic for programming.
※ Edit Cover HMI: Customers are allowed to edit the first page of the HMI by this menu.
※ User manger: File management, program can be protected with different priorities.
※ Set monit config: select elements for monitoring or saving with Excel file.

6.8.1.4 SMS

The instruction is mainly used for SMS items. The pull down menu is as the following:

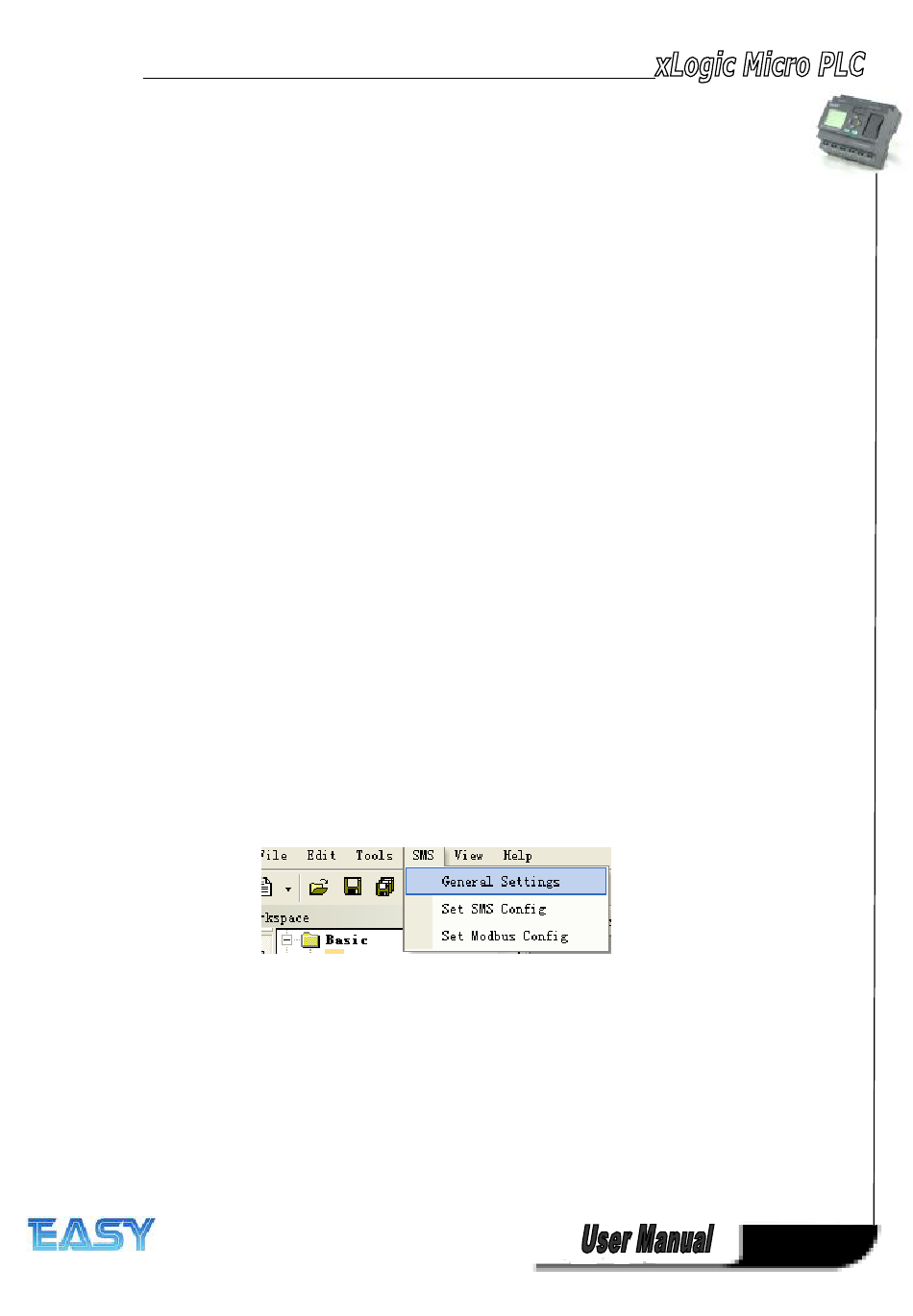

Fig. 10.4 SMS Menu
※ General Settings: set PIN code and gsm provider selected
