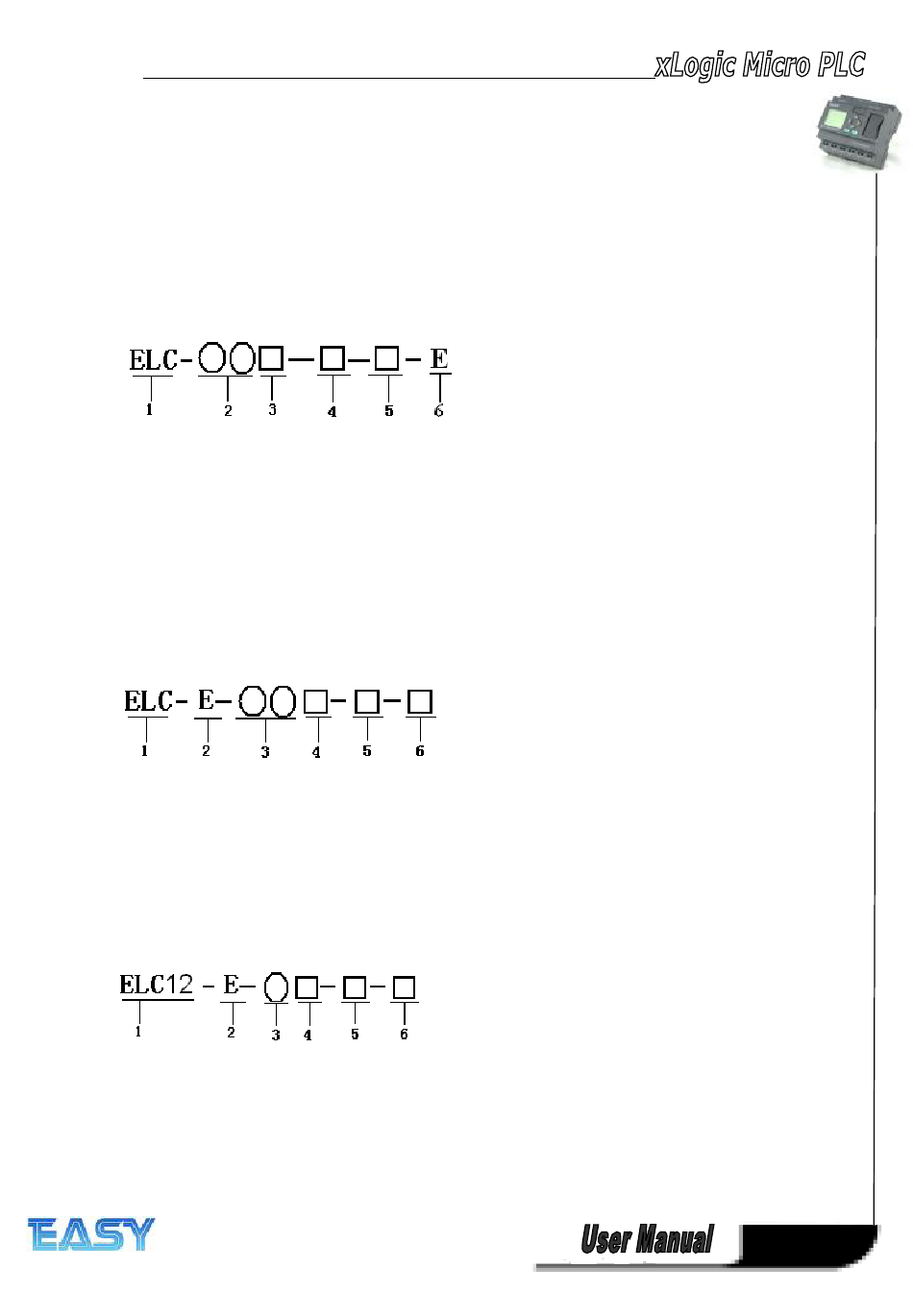

2.1 Naming Rules of ELC Series

1.Series name
2.Points of input and output
3.Supply power AC or DC
4.Digital/Analog D: digital DA: digital/analog L: with photoelectricity isolation
5.Output type R: relay
6. E: economic mode
Model name (expansion module ,plus with ELC-18/22/26 CPU together to use):
1.Series name
2.E: expansion module
3.Points of input and output
4.Supply power AC or DC
5.Digital/Analog D: digital DA: digital/analog
6.Output type R: relay TP: "NPN" transistor；TN :"PNP" transistor
Model name (expansion module ,plus with ELC-12 CPU together to use):

Chapter 2 Hardware models and resources

T: transistor TN = "PNP" transistor; TP= "NPN" transistor
