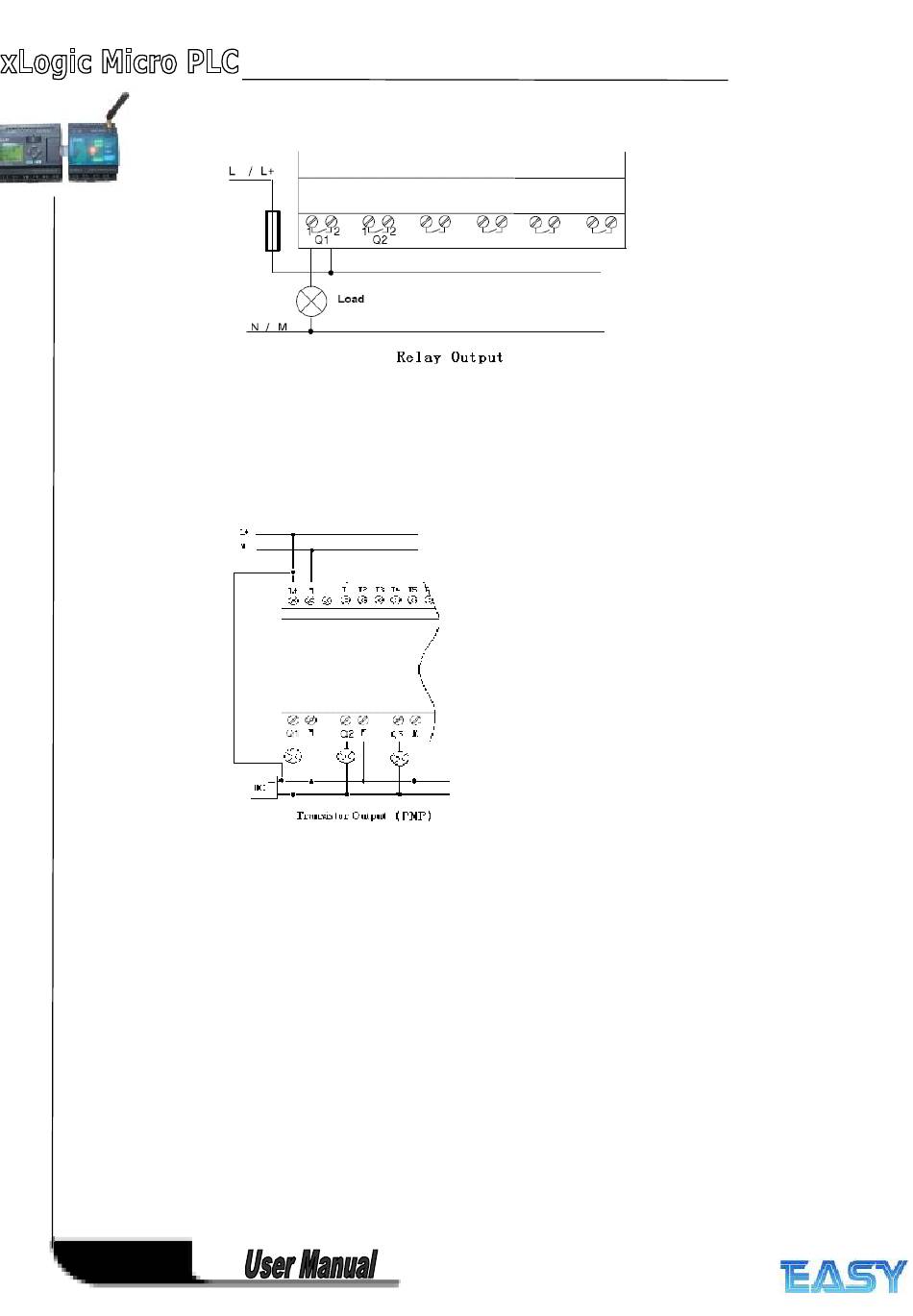

2. Requirement for the electronic transistor output:
The load connected to xLogic must have the following characteristics:
* The maximum switch current cannot exceed 0.3A.
* When the switch is ON (Q=1), the maximum current is 0.3A.
Notes (PNP):
* The load connecting voltage must be ≤60VDC and it must be DC.
* The "+" terminal of the output wiring must be connected with the DC positive
voltage, and it must be connected with the "L+" terminal of the xLogic power ， a
load must be connected with the "-" terminal of the DC negative voltage.
