5.HMI/LCD panel 6.keypad 7.Output
Notes:
1. Program port/RS232 port(ELC-RS232 ,ELC-USB,ELC-Copier,ELC-MEMORY should be inserted in this
port)
2. Extension port(it can be used as 2 RS485 ports ,ELC12-CB-A, ELC12-CB-B should be inserted in this
port)
3. ELC-E Series Expansion Module(only use with ELC-18 CPUs)

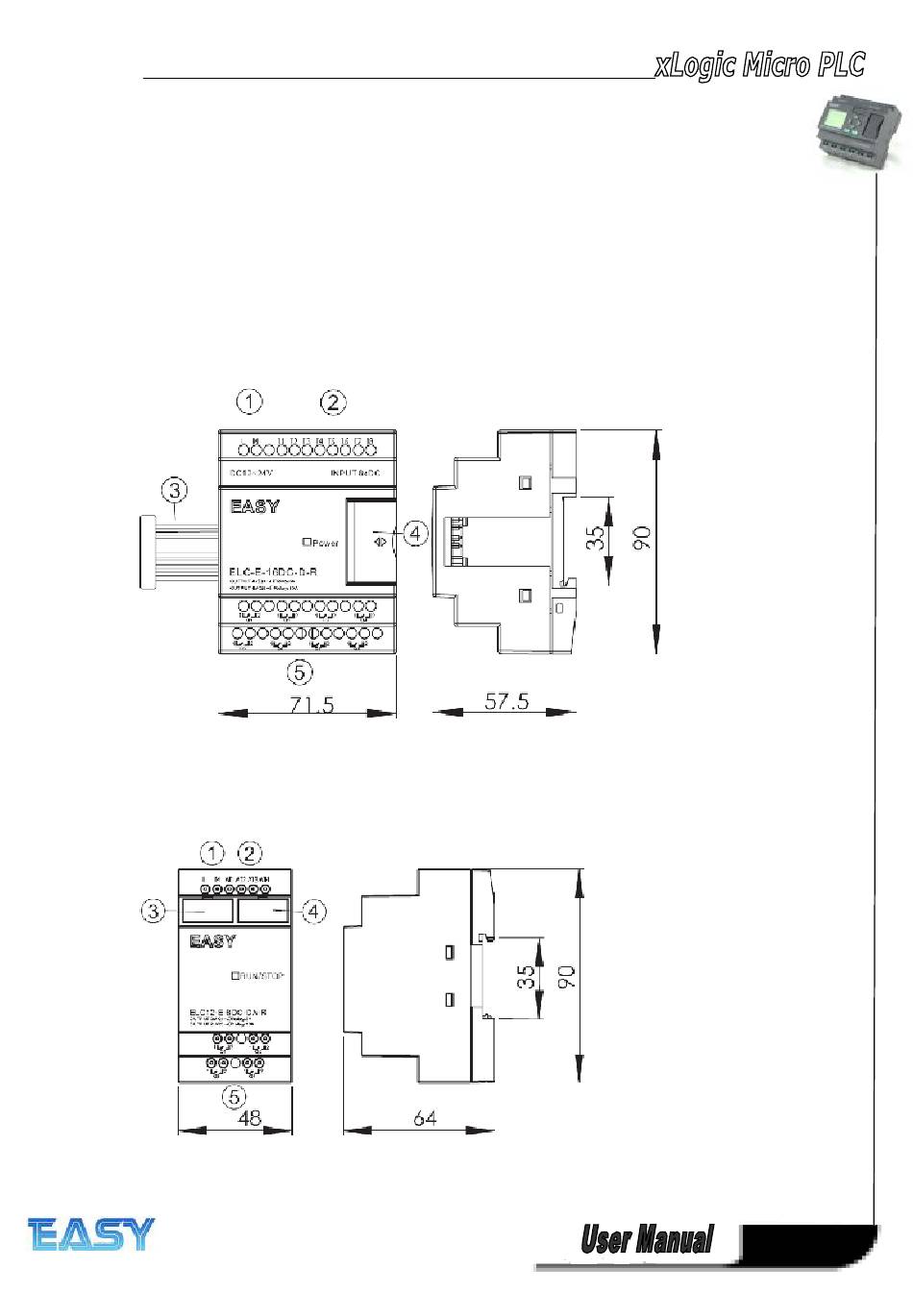

1. Power supply 2. Input 3. Connection cable 4. Extension port 5. Output
4. ELC12-E Series Expansion Module (also apply to ELC-6 Series CPU )
1.Power supply 2. Input 3. extension port (left) 4.expansion port(Right)( Program port for applied
to ELC-6 CPU)
