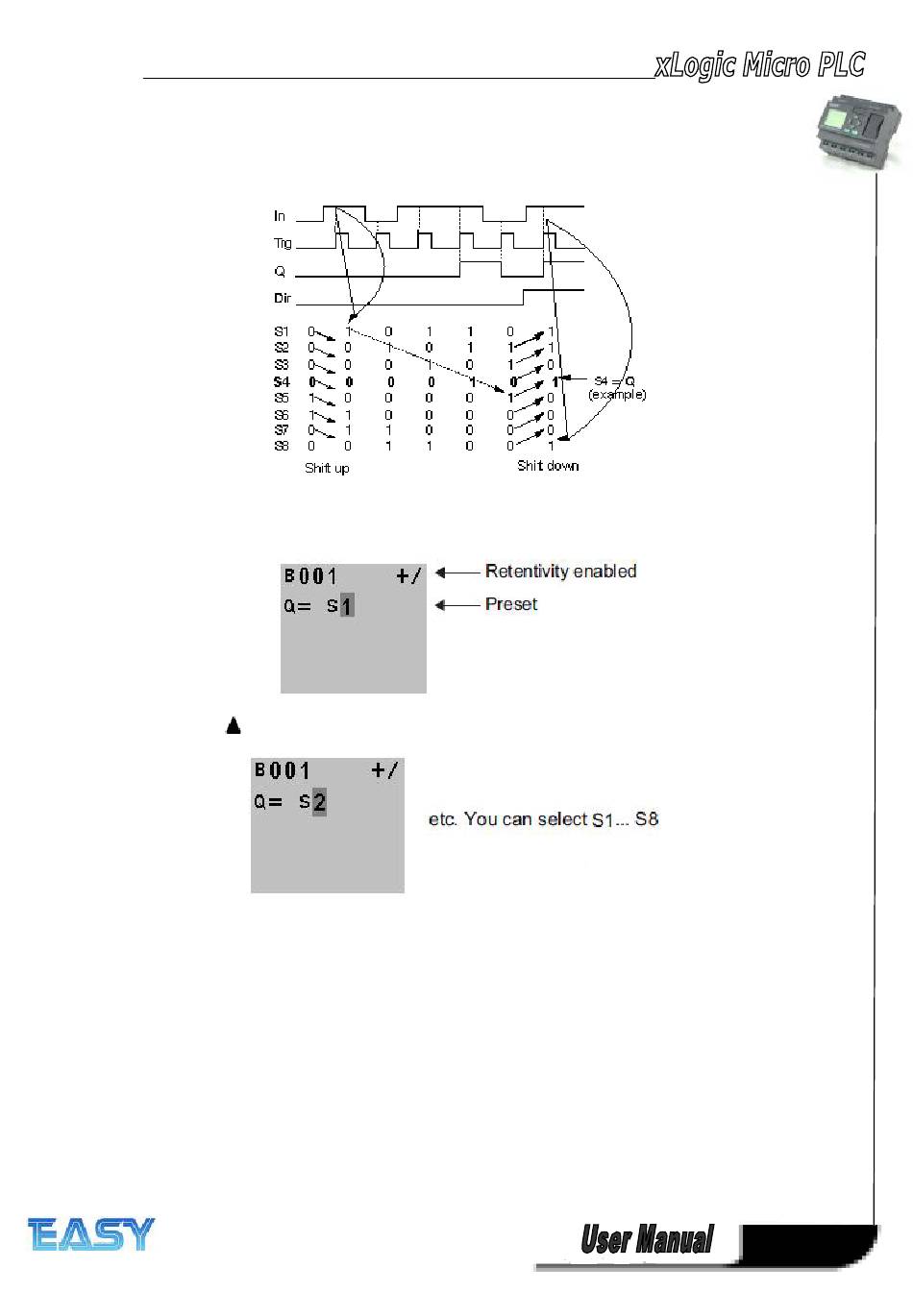

Timing diagram
Setting the Par parameter
View in programming mode:
Press
This special function is not available in parameter assignment mode.
Description of the function
The function reads the value of input In with a positive edge (0 to 1 transition) at input Trg (Trigger).
This value is written to shift register bits S1 or S8, depending on the set shift direction:
•
Shift up: S1 accepts the value of input In; the previous value of S1 is shifted to
S2, S2 is shifted to S3, etc.
•
Shift down: S8 accepts the value of input In; the previous value of S8 is shifted
to S7, S7 is shifted to S6, etc.
