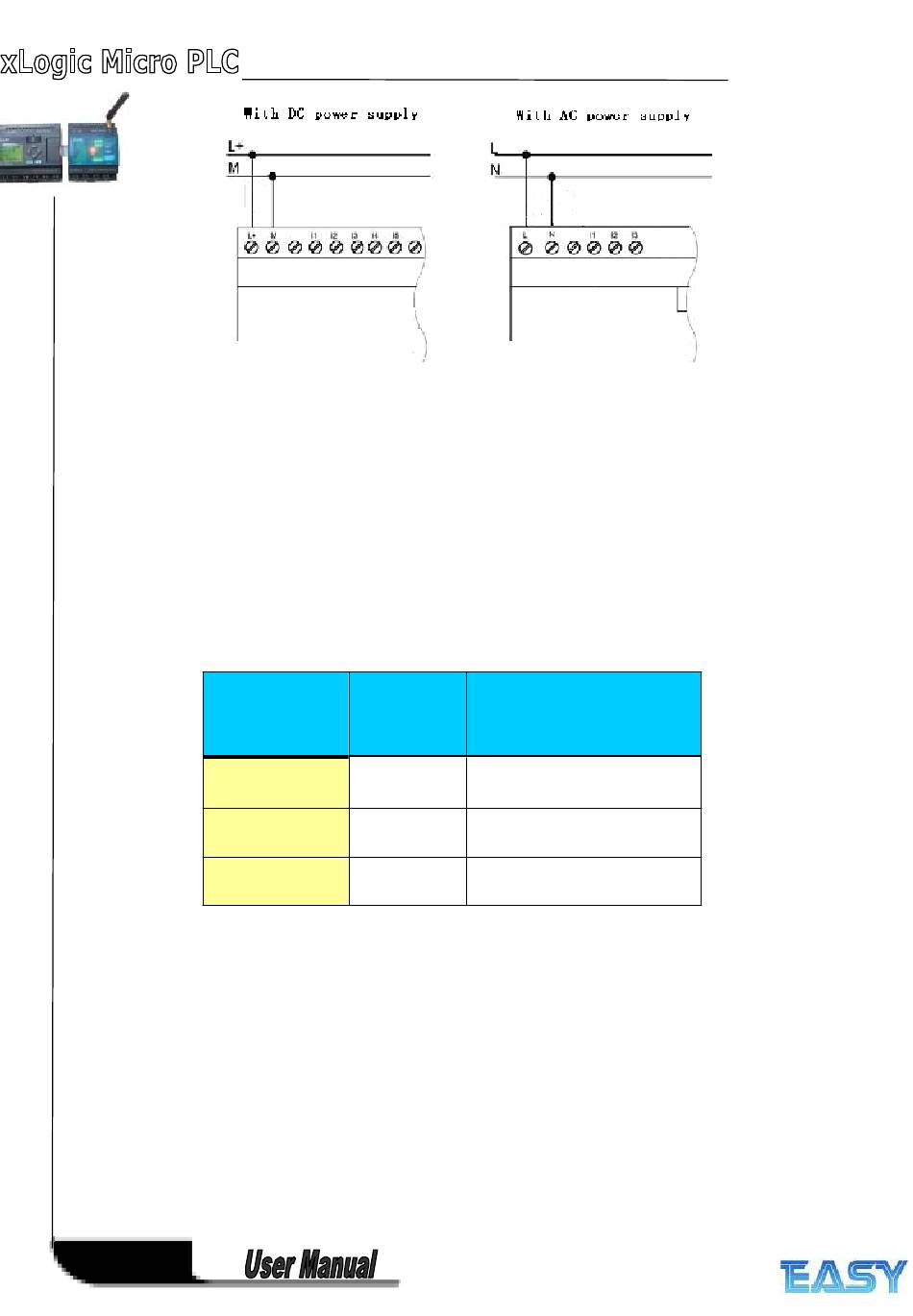

3.4.2 Connecting xLogic inputs

1. Requirements
the inputs you connect sensor elements such as: momentary switches, switches, light barriers,
daylight control switches etc.
Signal status
Signal status
Analogue input
33
AC Type
DC Type
<40VAC <3VDC
0
<0.24mA
<1.5mA
>85 VA C >8VDC
1
Typical Typical 3mA
NO AI1-AI4(0-10V DC)
