Description of the function

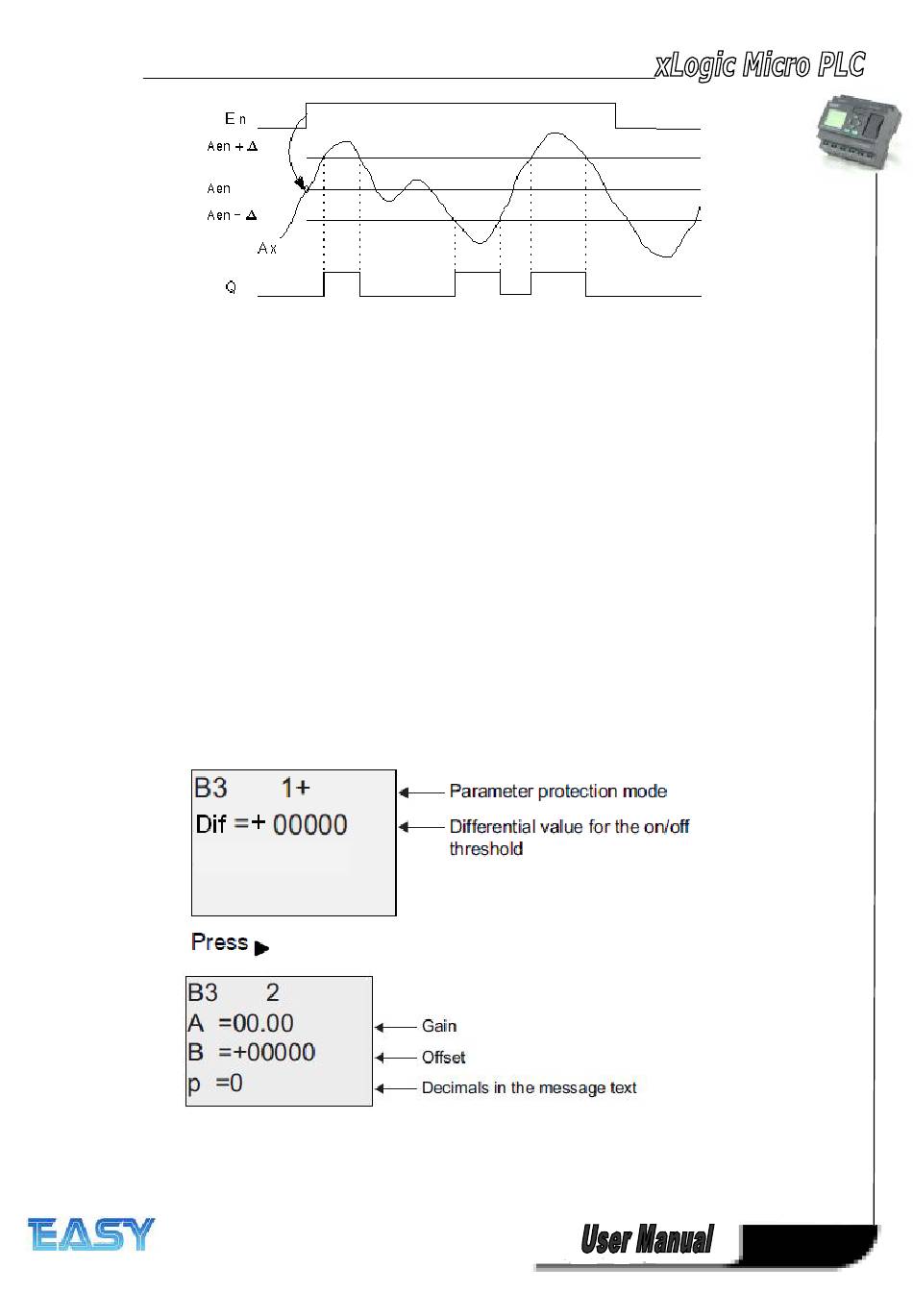

A 0 to 1 transition at input En saves the value of the signal at the analog input Ax. This saved process
variable is referred to as Aen".
Both the analog actual values Ax and Aen are multiplied by the value at parameter A (gain), and
parameter B (offset) is then added to the product, i.e.
(Ax ∙ gain) + offset = Actual value Aen, when input En changes from 0 to 1, or
(Ax ∙ gain) + offset = Actual value Ax.
Output Q is set when the signal at input En = 1 and if the actual value at input Ax is out of range of Aen
± Delta.
Output Q is reset, when the actual value at input Ax lies within the range of Aen +- Delta, or when the
signal at input En changes to lo.
Setting the Par parameter
The gain and offset parameters are used to adapt the used sensors to the respective application.
