Named COM1.
When the programming port should be used as the standard RS232 port (D-shape 9 pin header) ,the
ELC-RS232 cable needed.
2. Expansion port/RS485
1------RS485 A1
6------RS485 B1
2------RS485 A2
3------RS485 B2
4------GND
5------Battery
Communication between CPU and expansion module will use 1, 6 pin. This named COM2.
ELC12-E-RS485 module need when ELC-12 CPU communicate with the third party devices via RS485 bus
and the pin 2,3 should be used by ELC12-E-RS485 module .This named COM3.
Note: 1.The baud rates of COM, COM2, COM3 can be modified via the panel key.
2. The COM2 port also can work as the common RS485 port, when there is no expansion module
in the application. The standard RS485 module cannot bring out the terminals of COM2 built-in ELC-12
series CPU, so one customize RS485 module should be used for this case.
Chapter 4

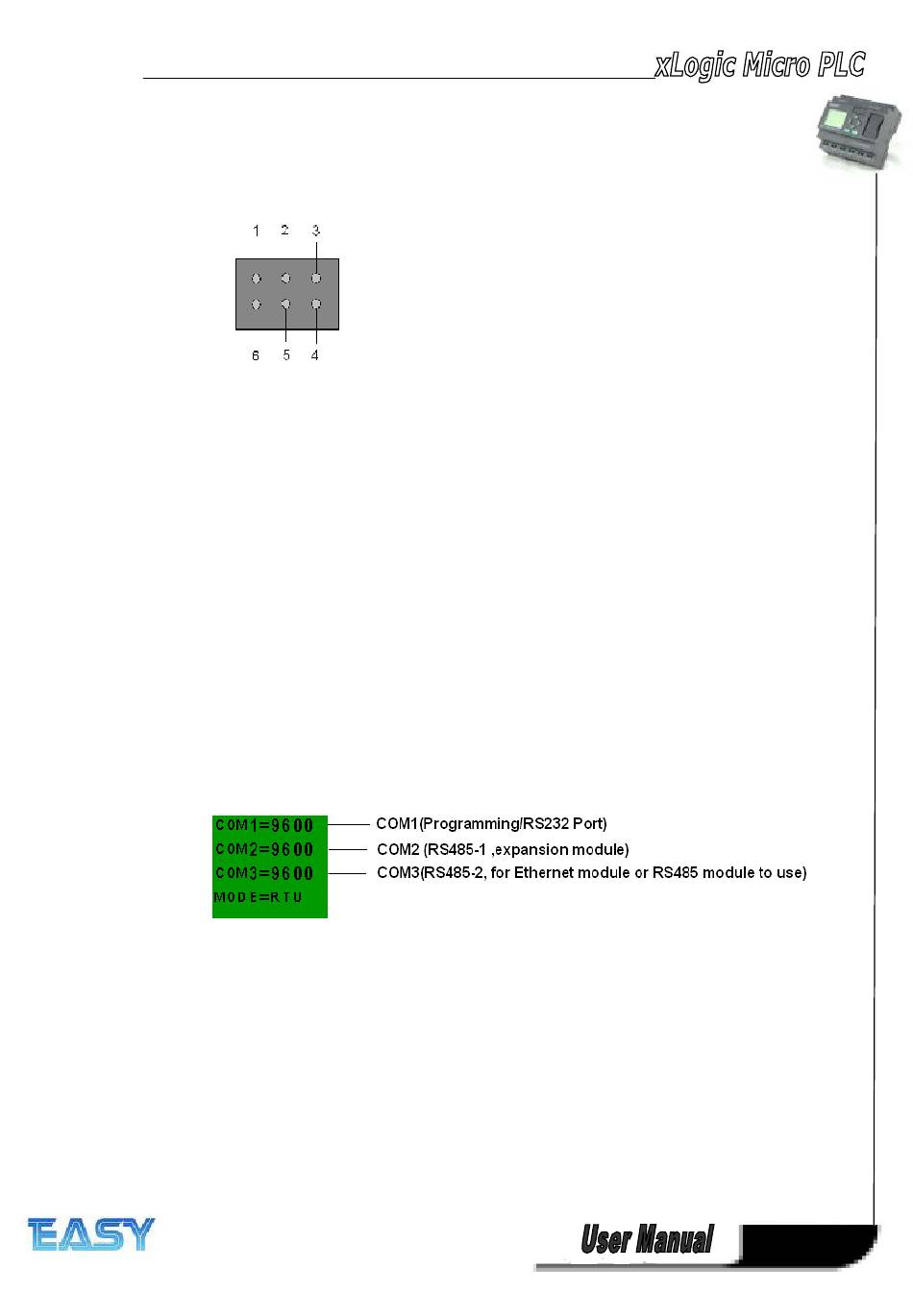

( pin definition(2X3 pin female figure)
Parameters modification HMI operation
