c. Click option "transfer->PC->xLogic" under menu "Tools"; or click button "
d. Click button " " with left button of mouse, start update Program, downloading status shown as Fig.
7.10.14 display update Program course.
Fig. 7.10.14 downloading status
Attn: After the Program update, xLogic will run the Program automatically, need not restart.
Operation Method of Upload Program:
a. Click option "Transfer->xLogic->PC" under menu "Tools" with left button of mouse, or click
" "under toolbar.
b. Click button " " with left button of mouse, start upload Program, uploading status shown as Fig.
7.10.14 display upload Program course.

6.13 On-line monitoring/test circuit program

After you are satisfied with your program simulation and have downloaded it to xLogic CPU, you can also
perform an online test of the circuit program. An online test is similar to simulation in that you can view
inputs and outputs and block parameters. It differs, however, in that you are testing the program running
in the xLogic with "live" inputs rather than testing the program on the PC with simulated inputs.

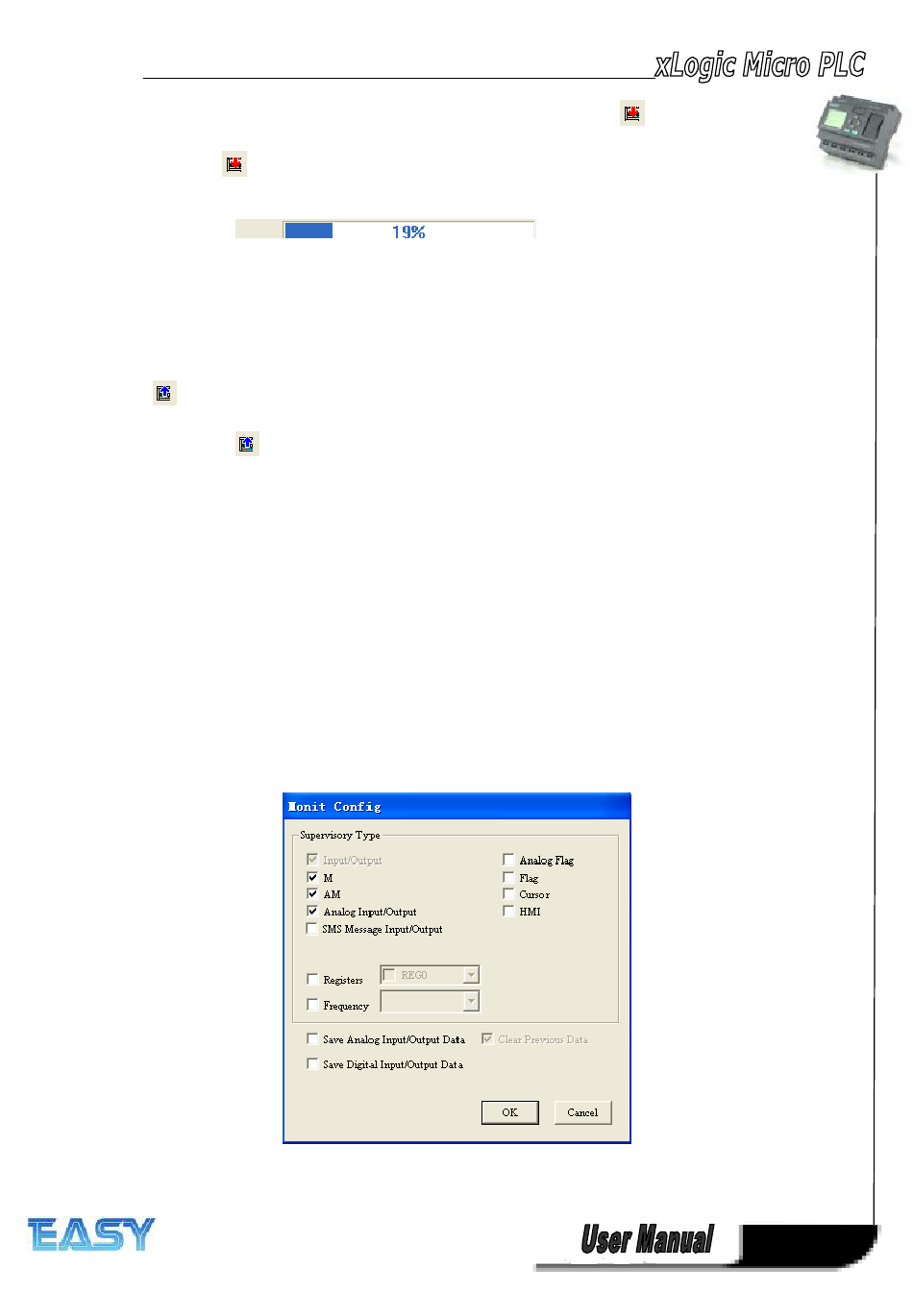

Multiple registers can be accessed individually by clicking "Tools->Set Monitor Config".
Monitor mode:
"in toolbar
