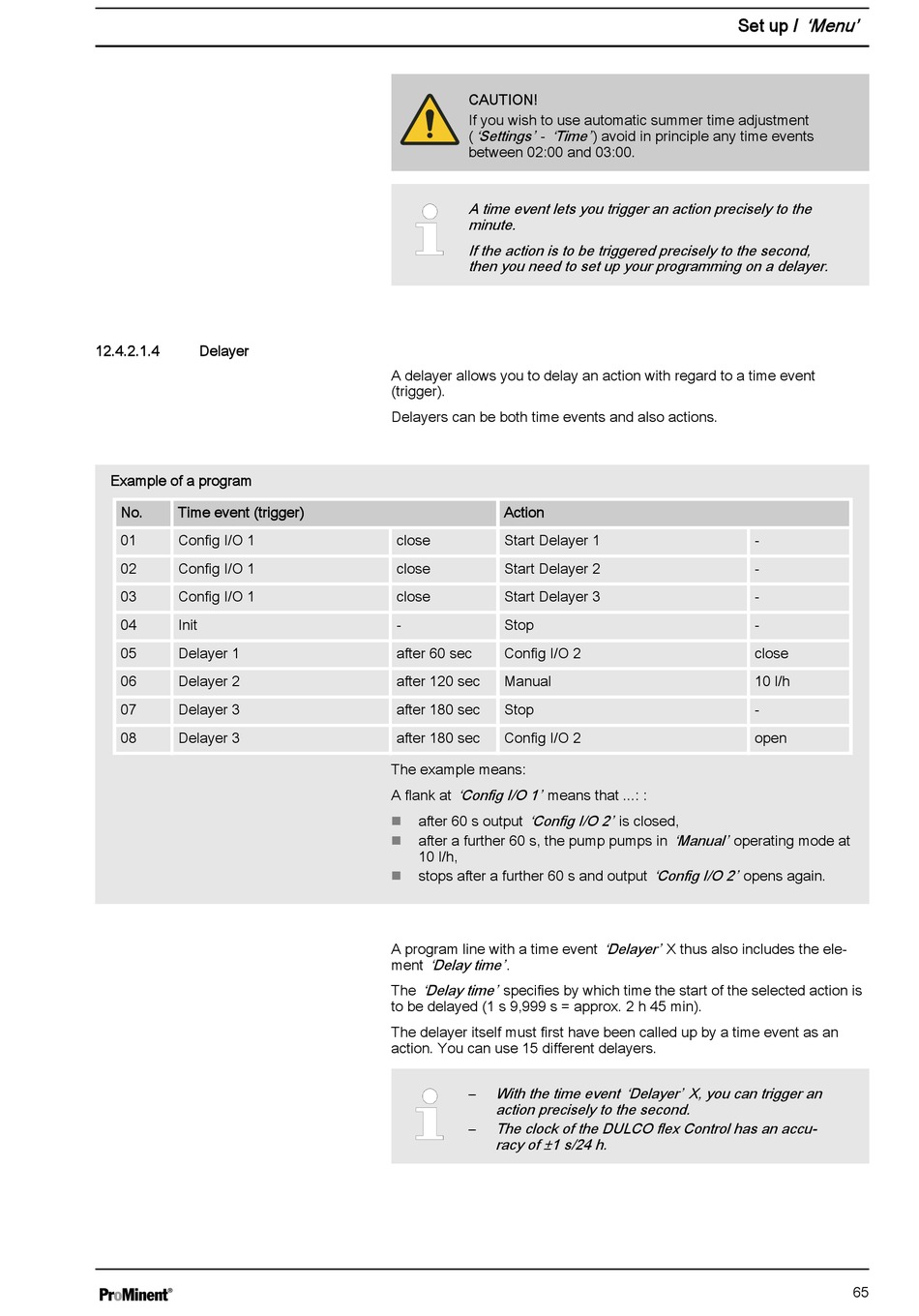

12.4.2.1.4
Delayer
Example of a program
No.
Time event (trigger)
01
Config I/O 1
02
Config I/O 1
03
Config I/O 1
04
Init
05
Delayer 1
06
Delayer 2
07
Delayer 3
08
Delayer 3
CAUTION!
If you wish to use automatic summer time adjustment
'Settings' - 'Time' ) avoid in principle any time events
(
between 02:00 and 03:00.
A time event lets you trigger an action precisely to the
minute.
If the action is to be triggered precisely to the second,
then you need to set up your programming on a delayer.
A delayer allows you to delay an action with regard to a time event
(trigger).
Delayers can be both time events and also actions.
Action
close
Start Delayer 1
close
Start Delayer 2
close
Start Delayer 3
-
Stop
after 60 sec
Config I/O 2
after 120 sec
Manual
after 180 sec
Stop
after 180 sec
Config I/O 2
The example means:
'Config I/O 1' means that ...: :
A flank at
'Config I/O 2' is closed,
after 60 s output
n
after a further 60 s, the pump pumps in
n
10 l/h,
stops after a further 60 s and output
n
A program line with a time event
'Delay time' .
ment
The
'Delay time' specifies by which time the start of the selected action is
to be delayed (1 s 9,999 s = approx. 2 h 45 min).
The delayer itself must first have been called up by a time event as an
action. You can use 15 different delayers.
With the time event 'Delayer' X, you can trigger an
–
action precisely to the second.
The clock of the DULCO flex Control has an accu‐
–
racy of ±1 s/24 h.
Set up /
-
-
-
-
close
10 l/h
-
open
'Manual' operating mode at
'Config I/O 2' opens again.
'Delayer' X thus also includes the ele‐
'Menu'
65
