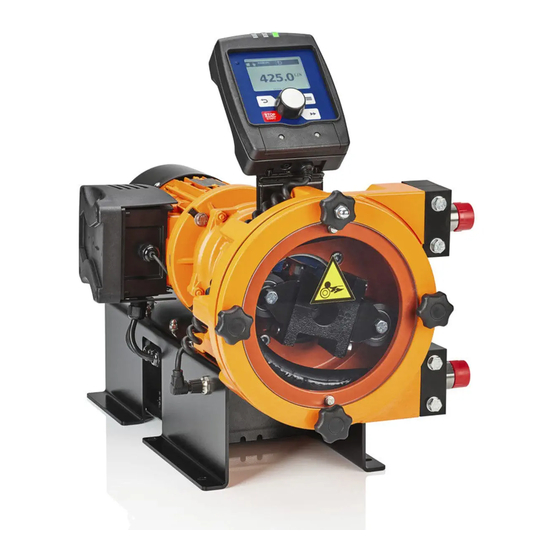

ProMinent DULCO flex Control DFYa Supplementary Instructions Manual

Peristaltic metering pump with profibus
Hide thumbs Also See for DULCO flex Control DFYa:
Table of Contents

Advertisement

Quick Links

Download this manual

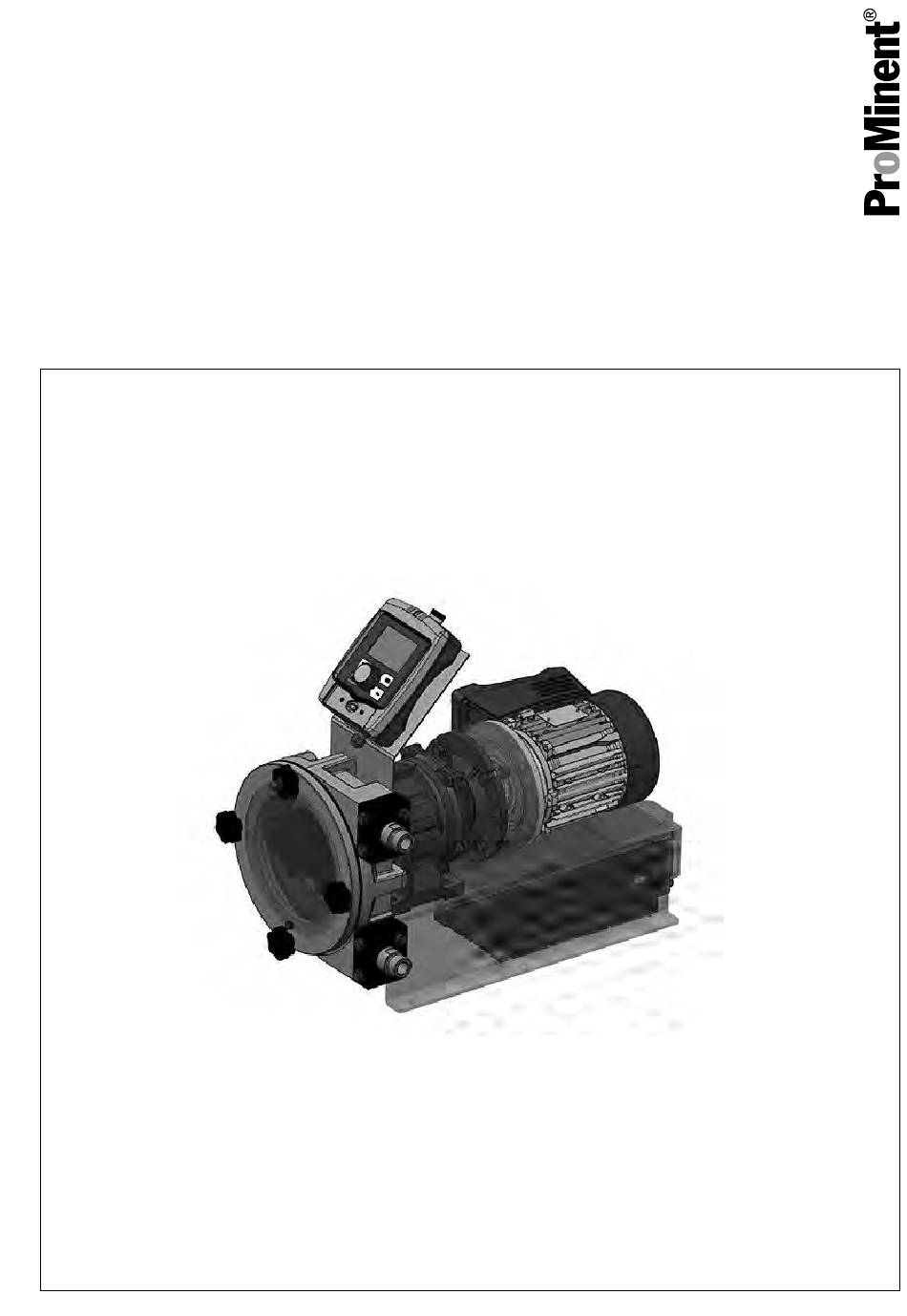

Supplementary instructions
Peristaltic metering pump DULCO flex Control -
DFYa
with PROFIBUS
These operating instructions are only valid when read in conjunction with the "Operating instructions for the peristaltic
metering pump DULCO flex Control - DFYa"!
The operator is liable for any damage caused by installation and operating errors!
The operator shall be liable for any damage caused by installation or operating errors.
Part no. 999768
®
Please carefully read these operating instructions before use. · Do not discard.
The latest version of the operating instructions are available on our homepage.
BA DX 032 04/21 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DULCO flex Control DFYa and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProMinent DULCO flex Control DFYa

Summary of Contents for ProMinent DULCO flex Control DFYa

  • Page 1 Supplementary instructions Peristaltic metering pump DULCO flex Control - DFYa with PROFIBUS ® These operating instructions are only valid when read in conjunction with the “Operating instructions for the peristaltic metering pump DULCO flex Control - DFYa”! The operator is liable for any damage caused by installation and operating errors! Please carefully read these operating instructions before use.

  • Page 2: Table Of Contents

    Table of contents Table of contents Requirements.................. 3 Setting up the pump................ 4 2.1 General................... 4 2.2 Setting up the slave address........... 4 2.3 Switching PROFIBUS ® to active / inactive......4 Special features in active PROFIBUS ® mode......... 5 3.1 General...................

  • Page 3: Requirements

    Requirements Requirements The pump can be enhanced with PROFIBUS ® functionality by means of a plug-in module. To do this, insert the plug-in module into the front of the pump (similar to a relay module). The operating menu then displays the ‘Fieldbus’...

  • Page 4: Setting Up The Pump

    Setting up the pump Setting up the pump 2.1 General The pump with the plugged-in PROFIBUS module is set up in the same ® way as the standard pump, with the addition of the bus functionality. The pump interrupts the set-up process in the event of pauses longer than 60 s.

  • Page 5: Special Features In Active Profibus ® Mode

    Special features in active PROFIBUS ® mode Special features in active PROFIBUS mode ® 3.1 General The pump cannot be manually set or programmed in PROFIBUS ® mode! To do this, set the PROFIBUS ® ‘Inactive’ . [Clickwheel] can be used to switch between the continuous dis‐ plays at any time, as in the other operating modes.

  • Page 6: Installation

    Installation Installation Bus installation All devices that are members of the bus system must be connected in a line. There are up to 32 possible positions (master, slaves, repeaters). At both the beginning and end of the cable, the bus must be terminated with a terminating resistance.
  • Page 7 Installation CAUTION! – Degree of protection IP 65 applies only to a plug/ socket combination that has been screwed together! – In ambient conditions requiring protection against contact and moisture according to IP 65, cables with moulded M12 industry plugs must be used (e.g., see below).

  • Page 8: Operation

    GSD file can be downloaded from the PROFIBUS website and from the ® ProMinent website. The file name is unique: DFYA1180.GSD 5.3 Description of the data objects Description of the data objects The initial parameters must be transmitted from the master so that the pump can engage in cyclic data trans‐...
  • Page 9 Operation Name Type Description Mode 00 – halt 03 – contact 01 – manual 04 - analog 02 – batch Error There are errors - see “Errors” Warnings There are warnings - see “Warnings” Manual stop Pump has been stopped man‐ ually Stop Pump has stopped...
  • Page 10 Operation Name Type Description Batch When triggered, the pump meters the number of revolu‐ tions set in batch pre-selection. Contact Pump meters the number of rev‐ olutions calculated from the product of “Number of triggers * External factor”. Analog Pump meters according to the analogue signal and the ‘Analog’...

  • Page 11: Cyclic Data Transmission

    Operation Name Type Description Bus error Bus error reported by the module System error System components faulty - see LCD screen Module error Error in module handling Warnings UINT16 Name Function Minimum Metering liquid level too low Calibration Revolutions UINT32 Counts the number of revolutions since the last reset counter Reset revolu‐...
  • Page 12 Operation Tab. 3: Modular construction Module no. Output Length Input Length Module name Configuration identifier (hex) Status 4 bytes Status 40.83 Start-Stop 1 bytes Control 80.81 Reset 1 bytes Mode 1 bytes Mode 1 bytes Operating C0,80,80 mode Dos. capacity 2 bytes Dos.
  • Page 13 Operation Offset Value Type Name Range Module name Module no. high UINT32 Batch pre- 1..99999 Batching selection ↓ BYTE Batch start 0.1↓ BYTE Batch memory high UINT16 External factor 0..9999 Transmission multiplier BYTE External memory BYTE BYTE Clear revolu‐ 0.1↓ Revolution tions counter number...

  • Page 14: Configuration

    Operation Offset Value Type Name Range Module name Module no. BYTE -↓ Ä Further high UINT16 Error Error warning information on page 8 high UINT16 Warnings Ä Further information on page 8 high UINT32 Revolutions Revolution 0..(2 counter number ↓ high FLOAT Volume...
  • Page 15 Operation Suggested configurations Tab. 6: Configuration for the transmission of all cyclic modules (42 byte input, 17 byte output) Module 1 Module 2 Module 3 Module 4 Module 5 Module 6 Module 7 Module 8 40, 83 80, 81 C0, 80, 80 C0, 81, 83 80, 81 C0, 85, 83...

  • Page 16: Acyclic Data Transmission

    Operation Offset Value Type Name Range Module name Module no. BYTE Batch memory BYTE Clear revolu‐ 0.1↓ Revolution tions counter number Tab. 9: Pump data (reduced input data) Offset Value Type Name Range Module name Module no. high UINT32 Status Status ↓...
  • Page 17 Operation The acyclically transmitted data is addressed via slot and index. All data summarised under one slot can then be addressed individually via the index and be transmitted acyclically. Slots are identical to the modules of the cyclical trans‐ mission. Tab.

  • Page 18: Extended Diagnostics

    Operation 5.6 Extended diagnostics (from the 7th byte) The pump uses the mechanism of the extended PROFIBUS ® diagnostics to report error statuses to the master. The extended diagnostics can be found in the diagnostics telegram. The extended diagnostics include the device-related “Alarm_Type (48)”...
  • Page 20 ProMinent GmbH Im Schuhmachergewann 5-11 69123 Heidelberg Germany Telephone: +49 6221 842-0 Fax: +49 6221 842-419 Email: info@prominent.com Internet: www.prominent.com 999768, 1, en_GB © 2021...
