Installation and configuration manual

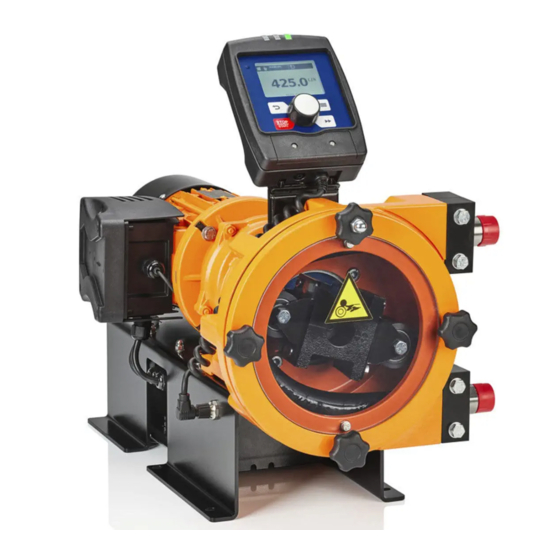

Peristaltic metering pump DULCO flex Control,
DFYa
DULCOnvert
EN
A3507
These operating instructions are only valid in conjunction with the operating instructions for the pump.
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
Part no. 999564
Version: BA DX 042 02/22 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DULCO flex Control and is the answer not in the manual?

Questions and answers

Related Manuals for ProMinent DULCO flex Control

Summary of Contents for ProMinent DULCO flex Control

  • Page 1 Installation and configuration manual Peristaltic metering pump DULCO flex Control, DFYa DULCOnvert A3507 These operating instructions are only valid in conjunction with the operating instructions for the pump. Please carefully read these operating instructions before use. · Do not discard.

  • Page 2: Table Of Contents

    Table of contents Table of contents Requirements.................. 3 Setting up the pump................ 4 2.1 General................... 4 2.2 Setting the slave address............4 2.3 Switching PROFIBUS ® to active/inactive........ 4 PROFINET ® settings............... 5 Special features in active PROFIBUS mode......... 6 ®...

  • Page 3: Requirements

    Requirements Requirements You can enhance the pump with PROFIBUS ® functionality with a plug-in module. Simply insert the plug-in module into the front of the pump. The ‘Fieldbus’ then appears in the operating menu and the PRO‐ menu item FIBUS symbol appears in the status bar of the display.

  • Page 4: Setting Up The Pump

    Setting up the pump Setting up the pump 2.1 General Familiarise yourself with the process: We describe here how to set up the pump for PROFIBUS ® mode. You will later meet the pump's PROFINET protocol via the DULCOnvert in the master control system. ®...

  • Page 5: Profinet ® Settings

    PROFINET ® settings PROFINET settings ® Connect the DULCOnvert to its supply voltage. Connect the DULCOnvert to the PROFINET ® network - see “Instal‐ lation” chapter. ‘Update accessible devices’ in the TIA portal under ‘Online Select access’ . Fig. 1: ‘Update accessible devices’ ‘nl51ndpl’...

  • Page 6: Special Features In Active Profibus ® Mode

    Special features in active PROFIBUS ® mode Special features in active PROFIBUS mode ® 4.1 General INFORMATION!: The pump cannot be manually set or programmed in ‘inactive’ . PROFIBUS ® mode. To do so, switch the PROFIBUS ® You can move between the continuous displays at any time, as in the other operating modes.

  • Page 7: Assembly And Electrical Installation

    Assembly and electrical installation Assembly and electrical installation Please follow this order: A. - Install the housing B. - Install the PROFIBUS ® cable C. - Connect the DULCOnvert to the mains voltage D. - Install the PROFINET ® cable E.

  • Page 8: Operation

    ® nostics, modules and slots. The GSDML file can be downloaded from the PROFINET website and from the ProMinent website. The file name is ® unique: GSDML-V2.2-Prominent-DFYa-DPL-20210929-115936.xml 6.3 Description of the data objects Description of the data objects INFORMATION!: The initial parameters must be transmitted from the master so that the pump can engage in cyclic data transmission.
  • Page 9 Device identifier UINT32 Byte 0+1 = 0x1180 Identification number Byte 2 = 0x50 ProMinent identifier for pump product group Byte 3 "DULCO flex Control" pump family Status UINT32 Name Function Motor 0 – Motor idle 1 – Motor run‐ ning Mode 00 –...
  • Page 10 Operation Name Type Description Start-Stop BYTE Corresponds to Start-Stop switch; if Start-Stop = 0, then the pump is stopped. Reset BYTE If the “Reset” value is switched from 1 to 0, the internal pump memory is deleted (e.g. with batch metering) and - as far as possible - pending errors are cleared.
  • Page 11 Operation Name Type Description Bus error Bus error reported by the module System error System components faulty - see LCD screen Module error Error in module handling Warnings UINT16 Name Function Minimum Metering liquid level too low Calibration Revolution counter UINT32 Counts the number of revolutions since the last reset Reset revolution...

  • Page 12: Technical Data On Dulconvert

    Technical data on DULCOnvert Technical data on DULCOnvert Electrical data Supply voltage: 230 V AC Degree of protection Degree of protection: IP66 * * with professional installation Dimensions PROFIBUS cable, length: Plug-in power unit, length: 1.5 m Housing, HxWxD: 140x110x60 mm * * without threaded connectors...

  • Page 13: Disposal

    Disposal Disposal Sign indicating EU collection system In accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment, this device features the symbol showing a waste bin with a line through it. The device must not be disposed of along with domestic waste.
  • Page 16 ProMinent GmbH Im Schuhmachergewann 5 - 11 69123 Heidelberg Germany Telephone: +49 6221 842-0 Fax: +49 6221 842-419 Email: info@prominent.com Internet: www.prominent.com 999564, 1, en_GB © 2022...
