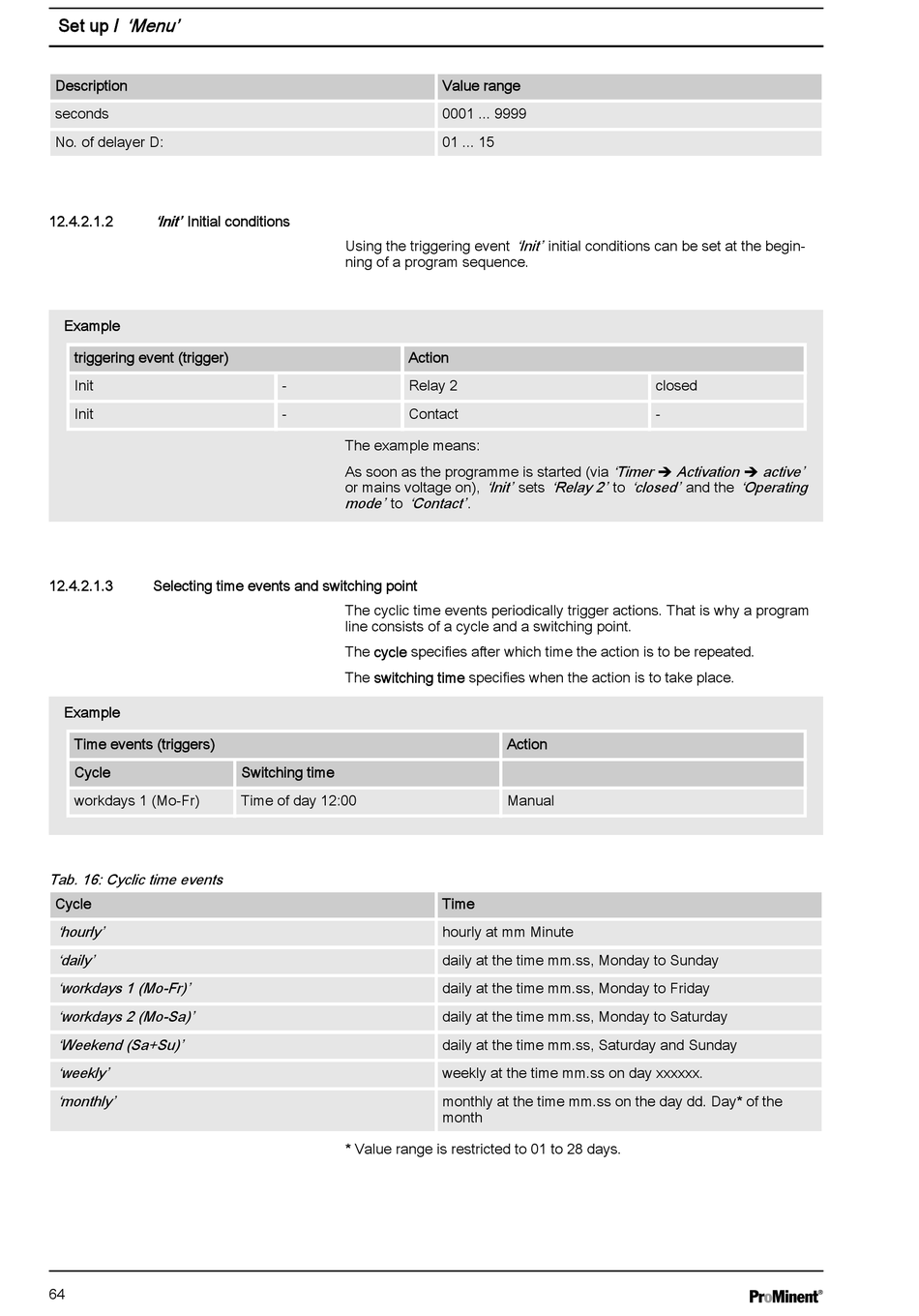

ProMinent DULCO flex Control Operating Instructions Manual page 64

'Menu'
Set up /
Description
seconds
No. of delayer D:
'Init' Initial conditions
12.4.2.1.2
Example
triggering event (trigger)
Init
Init
12.4.2.1.3 Selecting time events and switching point
Example
Time events (triggers)
Cycle
workdays 1 (Mo-Fr)
Tab. 16: Cyclic time events
Cycle
'hourly'
'daily'
'workdays 1 (Mo-Fr)'
'workdays 2 (Mo-Sa)'
'Weekend (Sa+Su)'
'weekly'
'monthly'
64
Using the triggering event
ning of a program sequence.
Action
- Relay 2
- Contact
The example means:
As soon as the programme is started (via
or mains voltage on),
mode' to 'Contact' .
The cyclic time events periodically trigger actions. That is why a program
line consists of a cycle and a switching point.
The cycle specifies after which time the action is to be repeated.
The switching time specifies when the action is to take place.
Switching time
Time of day 12:00
* Value range is restricted to 01 to 28 days.
Value range
0001 ... 9999
01 ... 15
'Init' initial conditions can be set at the begin‐
'Timer è Activation è active'
'Init' sets 'Relay 2' to 'closed' and the 'Operating
Action
Manual
Time
hourly at mm Minute
daily at the time mm.ss, Monday to Sunday
daily at the time mm.ss, Monday to Friday
daily at the time mm.ss, Monday to Saturday
daily at the time mm.ss, Saturday and Sunday
weekly at the time mm.ss on day xxxxxx.
monthly at the time mm.ss on the day dd. Day* of the
month
closed
-
