Install the vEdge 100m Router
Mount the vEdge 100m Router on the Wall
In addition to the accessory box, you need the following tools to mount a vEdge 100m router:
• Number 2 Phillips (+) screwdriver
• Tape measure or level
To mount the vEdge 100m router on the wall:
1. Secure the mounting plate to the wall using four screws appropriate for your wall type (screws not included).

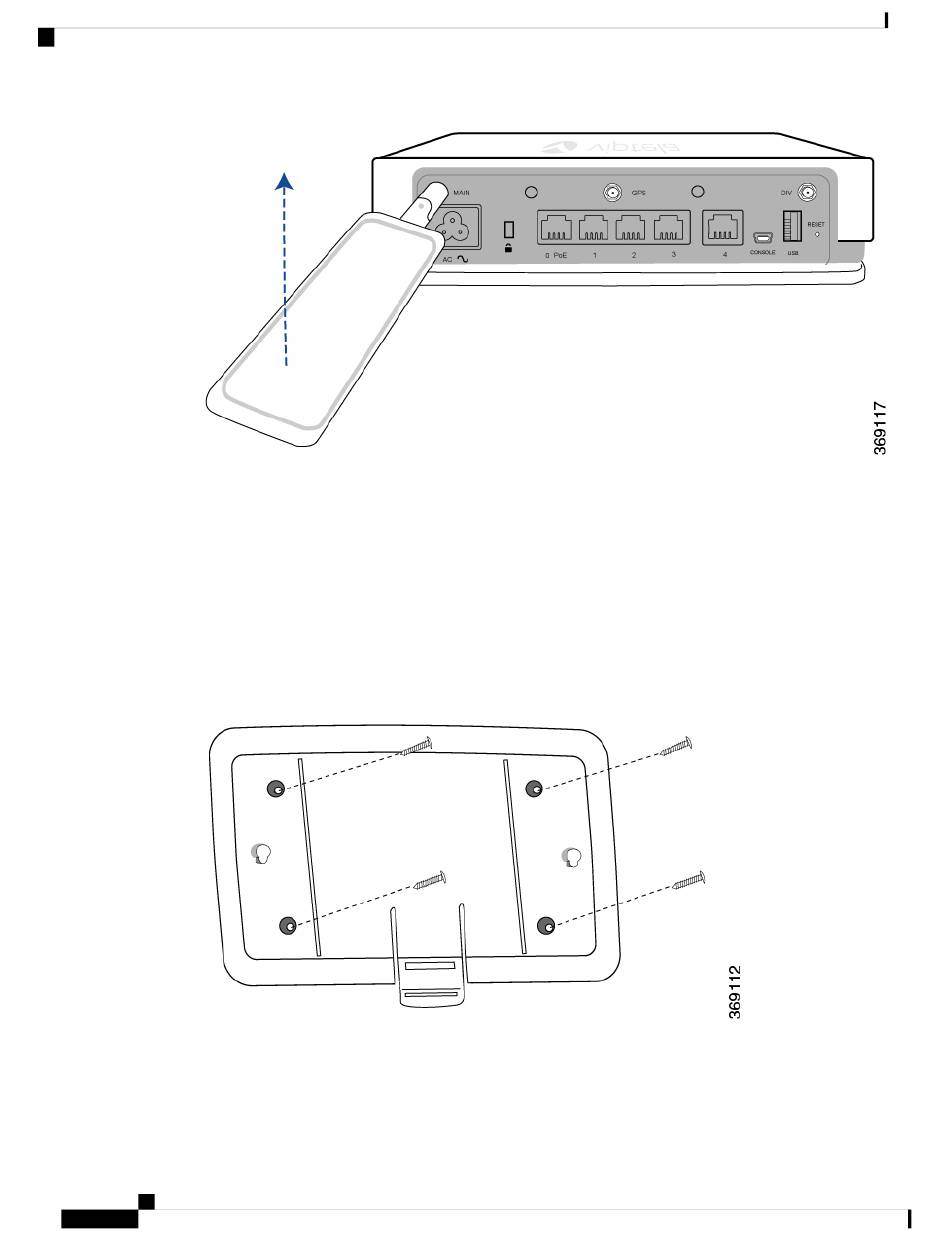

Figure 9: Securing the Mounting Plate to the Wall
1. Mount the router on the mounting plate by aligning the two slots on the underside of the router chassis
to the notches in the mounting plate. Then gently slide the router chassis down onto the notches.
Figure 10: Mounting the vEdge 100m Router on the Mounting Plate
