Ports and Connectors

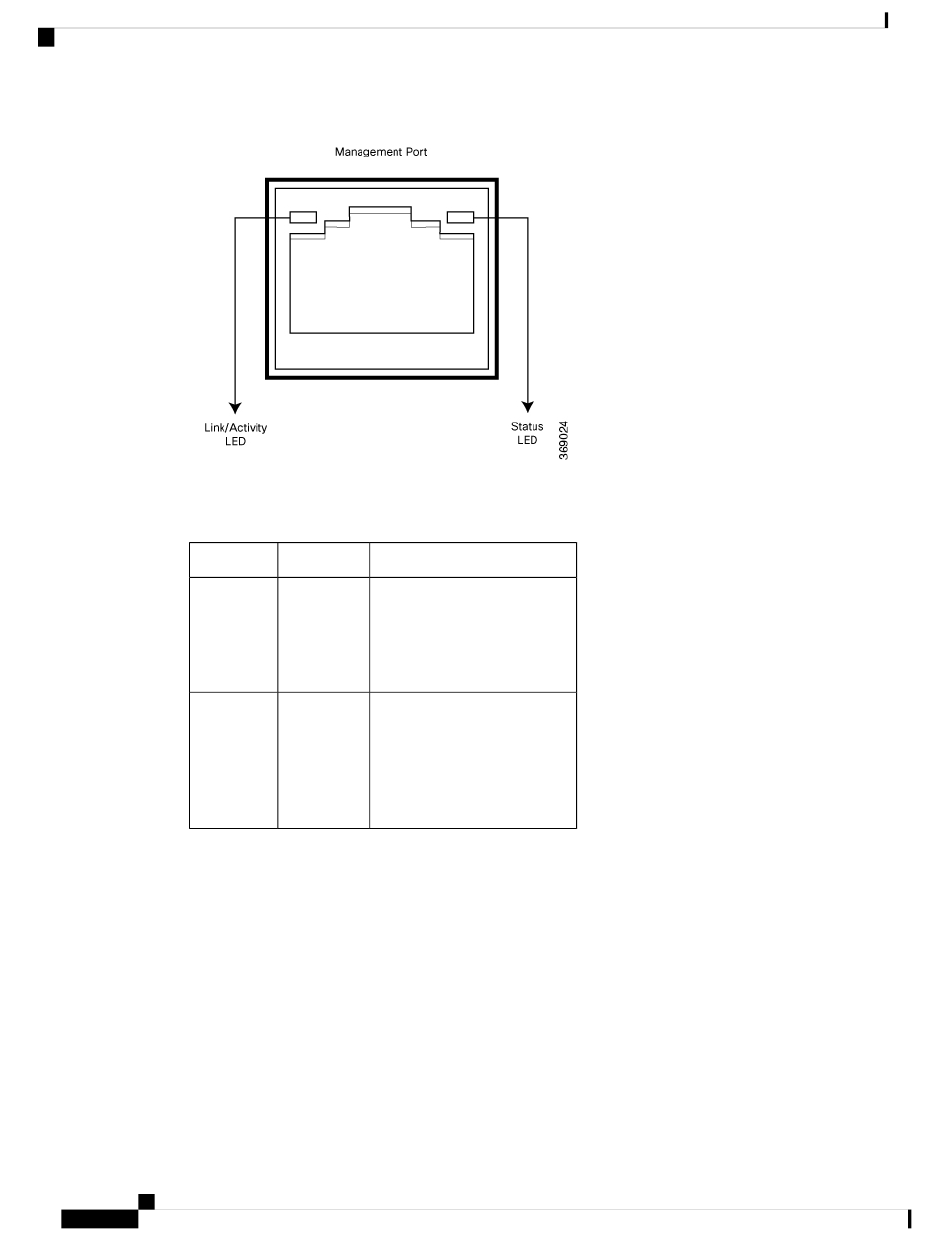

Table 5 describes the LEDs on the management port.
Table 63:
LED
Link/Activity
Status
Console Port
The console port on a vEdge 2000 router is accessible via the following external interfaces:
• An RS-232 serial interface that uses an RJ-45 connector to connect to a console management device.
• A USB serial interface that uses a standard USB Type B connector to connect to a console management
device. See Figure 5.
Figure 5: USB Type B Connector
At any given time, you can activate only one of the external interfaces. The default baud rate for the console
port is 115,200 baud.
Table 7 provides the pinout information for the RJ-45 console port connector.
Hardware Installation Guide for vEdge Routers
178
Color State and Description
Green • Blinking—There is link
activity
• Off—There is no link
activity
Green/Yellow Indicates the speed of the link:
• Green—1000 Mbps
• Yellow—10/100 Mbps
• Off—Link is not up
vEdge 2000 Router
