vEdge 5000 Router
P i n Signal
5 Signal
Ground
6 RxD Input
7 NC
8 CTS Input
RJ-45-to-DB-9 Serial Port Adapter Pinout
The console port on a vEdge 5000 router is an RS-232 serial interface that uses an RJ-45 connector to connect
to a management device such as a PC or a laptop. If your PC or laptop does not have a DB-9 male connector
pin and you want to connect your PC or laptop to a vEdge 5000 router, use a combination of the RJ-45-to-DB-9
female adapter along with a USB-to-DB-9 male adapter. See Figure 6.

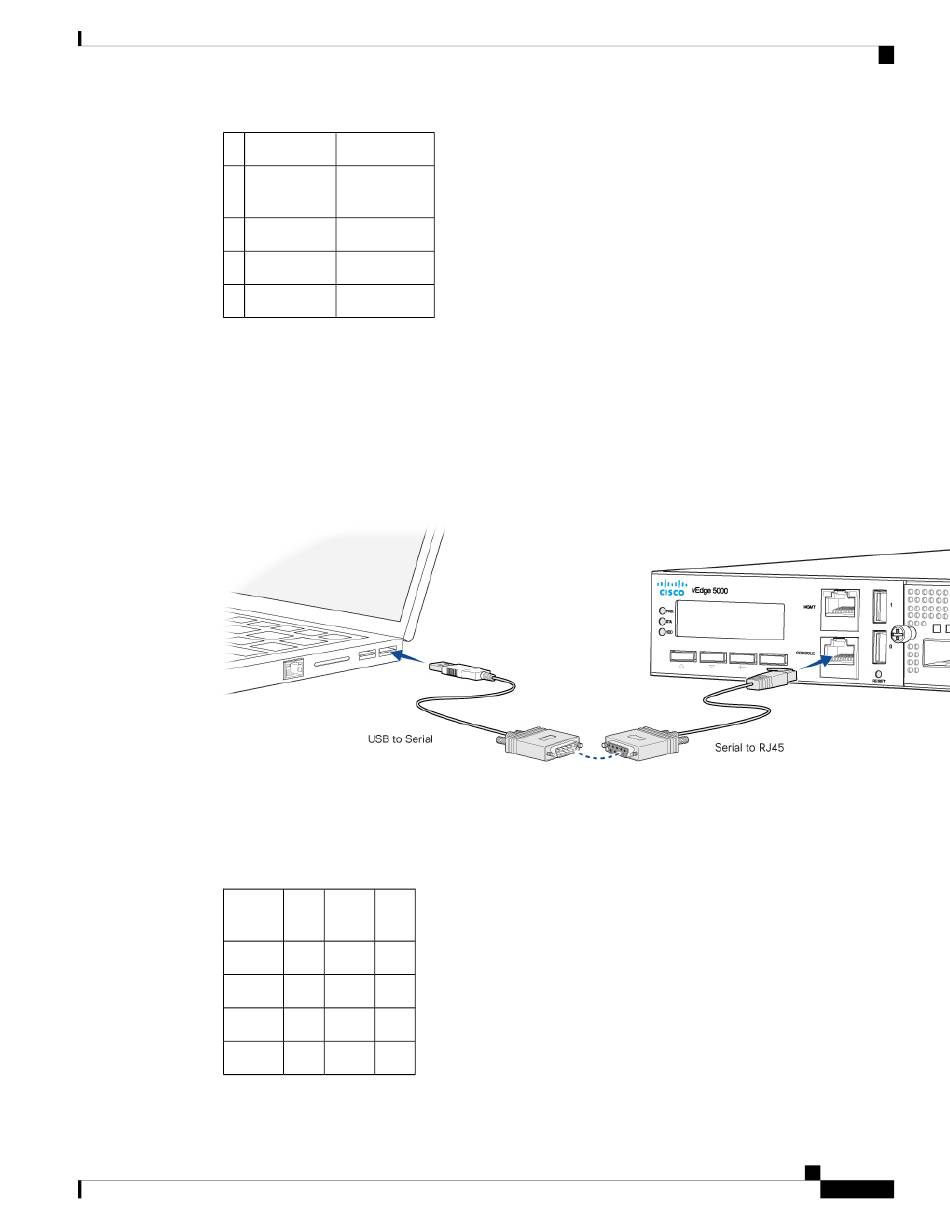

Figure 6: vEdge 5000 Router Connected to a Laptop via RJ-45-to-DB-9 Cable
Table 7 provides the wiring and pinout information for the RJ-45-to-DB-9 serial port adapter cable.
Table 85:
RJ-45
Pin
1
3
4
6
Description
Signal ground
Receive data
No connect
Clear to send
Signal DB9 Signal
Pin
RTS 8 CTS
TXD 2 RXD
GND 5 GND
RXD 3 TXD
