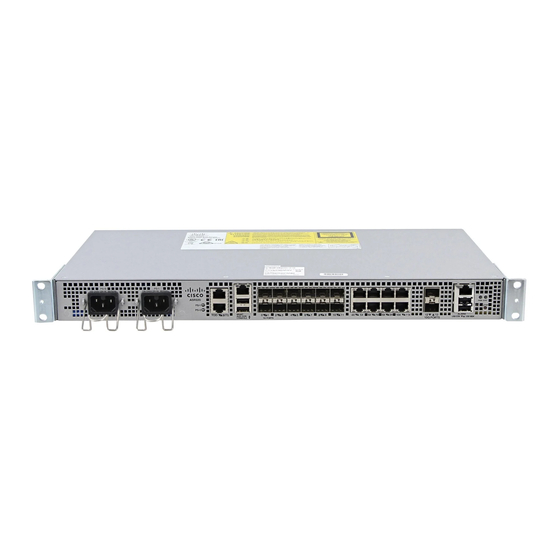

Cisco ASR-920-12CZ-A Configuration Manual

Asr 920 series
Hide thumbs Also See for ASR-920-12CZ-A:



Table of Contents

Summary of Contents for Cisco ASR-920-12CZ-A

  • Page 1: Table Of Contents

    Autonomic Networking Configuration Guide, Cisco IOS XE Everest 16.5.1 (Cisco ASR 920 Series) Autonomic Networking Finding Feature Information Prerequisites for Autonomic Networking Restrictions for Autonomic Networking Information About Autonomic Networking How to Configure Autonomic Networking Configuration Examples for Autonomic Networking...
  • Page 2: Autonomic Networking

    Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to
  • Page 3: Restrictions For Autonomic Networking

    Restrictions for Autonomic Networking General Restrictions • Autonomic networking only supports unique device identifier (UDI)-based devices. • Autonomic networking and Zero Touch Provisioning (ZTP) are different zero touch solutions. It is recommended that you do not test or use autonomic networking and ZTP at the same time. Information About Autonomic Networking Overview of Autonomic Networking The aim of autonomic networking is to create self-managing networks to overcome the rapidly growing complexity of the Internet...
  • Page 4 Autonomic Networking Infrastructure The Autonomic Networking Infrastructure (ANI) feature simplifies the network bootstrap functionality by removing the need for any kind of prestaging, thereby allowing devices to join a domain securely, after which devices can be configured. The goal of the Autonomic Networking Infrastructure feature is to make new and unconfigured devices securely reachable by an operator or network management system.
  • Page 5 New Device Joining the Autonomic Network The figure below illustrates how a new device joins an autonomic network. Figure 2: New Device Joining the Autonomic Network 1 The new device sends out a hello message to the neighbor. In this case, the neighbor is part of an autonomic network domain. 2 The hello message includes the unique device identifier (UDI) of the new device.
  • Page 6 Currently, the registrar validates the new devices based on an optional list of UDIs that is specified when configuring the registrar. The list specifies a set of devices that are allowed to join the network. Figure 3: Provisioning Registrar in an Autonomic Network The registrar maintains a database of all devices that join or fail to join the domain.
  • Page 7: How To Configure Autonomic Networking

    autonomic control planes that can be created based on the different capabilities of the devices. The autonomic control plane is established by using the following mechanisms: • Configuring a loopback interface. • Dynamically assigning an IPv6 address to the loopback interface. •...
  • Page 8 Step 2 show autonomic device Example: Device# show autonomic device PID:A901-12C-FT-D SN:CAT1602U00U Device ID 0006.f6ac.3be0-2 Domain ID manual-cisco Domain Certificate (sub:) ou=manual-cisco+serialNumber=PID:A901-12C-FT-DSN:CAT1602U00U,cn=0006.f6ac.3be0-2 Certificate Serial Number Device Address FD8F:E354:CCF9:0:6:F6AC:3BE0:2 Displays the current state of an autonomic device including the global details.
  • Page 9 Example: Device# show autonomic neighbors detail UDI: "PID:A901-12C-FT-D SN:CAT1602U0C3" Device ID 0006.f6ac.3be0-4 Domain ID manual-cisco State Nbr inside the Domain Credential Domain Cert Credential Validation Passed Last Validated Time 2014-07-21 12:42:57 IST Certificate Expiry Date 2015-07-21 12:42:48 IST Certificate Expire Countdown 31535585 (secs)
  • Page 10: Configuration Examples For Autonomic Networking

    Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to An account on is not required.
  • Page 11 Table 1: Feature Information for Autonomic Networking Feature Name Releases Feature Information Autonomic Networking Infrastructure Cisco IOS XE Release 3.14.0S This feature was introduced on the Cisco ASR 920 Series Aggregation Services Router (ASR-920-12CZ-A, ASR-920-12CZ-D, ASR-920-4SZ-A, ASR-920-4SZ-D, ASR-920-10SZ-PD, ASR-920-24SZ-IM, ASR-920-24SZ-M,...
  • Page 12 © 2017 Cisco Systems, Inc. All rights reserved.
  • Page 13 Cisco Systems, Inc. Cisco Systems (USA) Pte. Ltd. Cisco Systems International BV San Jose, CA 95134-1706 Singapore Amsterdam, The Netherlands Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco Website at
