vEdge 100b Router

Ports and Connectors

The vEdge 100b router supports two types of interface ports: RJ-45 Ethernet ports and USB serial console
port.
RJ-45 Ethernet Ports
There are five built-in RJ-45 Ethernet ports on the vEdge 100b router. These ports support 10/100/1000 Mbps
and are numbered 0 through 4.
Figure 1 provides the pinout information for the RJ-45 ports. The RJ-45 ports comply with the 801 standards.

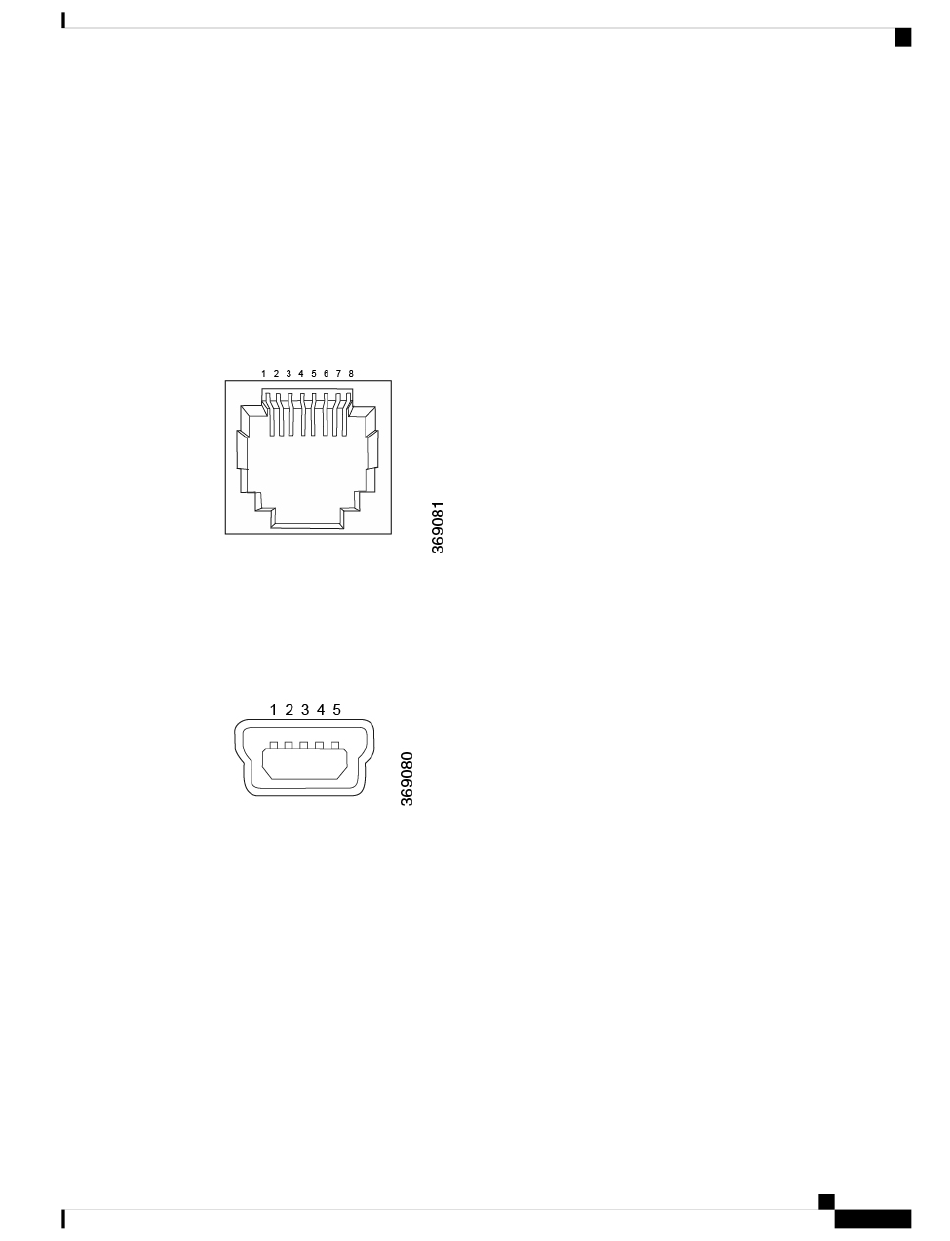

Figure 1: RJ-45 Ports Pinout Information
Console Port
The console port on the vEdge 100b router is a serial port and is accessible via a USB Mini-B connector. See
Figure 2.
Figure 2: USB Mini-B Connector
A USB Type-A to Mini-B connector cable is shipped with the vEdge 100b router as standard accessory for
console port connection.

Power Supply

The vEdge 100b router has an external power supply and ships with a 12-Volt AC-DC power adapter.
AC-DC Power Adapter
The vEdge 100b router accepts a DC power input of 12 Volts. You can power the router by plugging one end
of the AC power adapter into the front of the router, and the other end into an AC power outlet.
The AC-DC power adapter has the following wall-connector options:
• Type A (commonly used for Canada, Japan, Mexico, and US)
