vEdge 1000 Router
1. Gently slide the vEdge 1000 router into the groove at the front of the rack-mount tray until it goes all the
way in. If you plan to install two routers side by side, gently slide in the second router also.

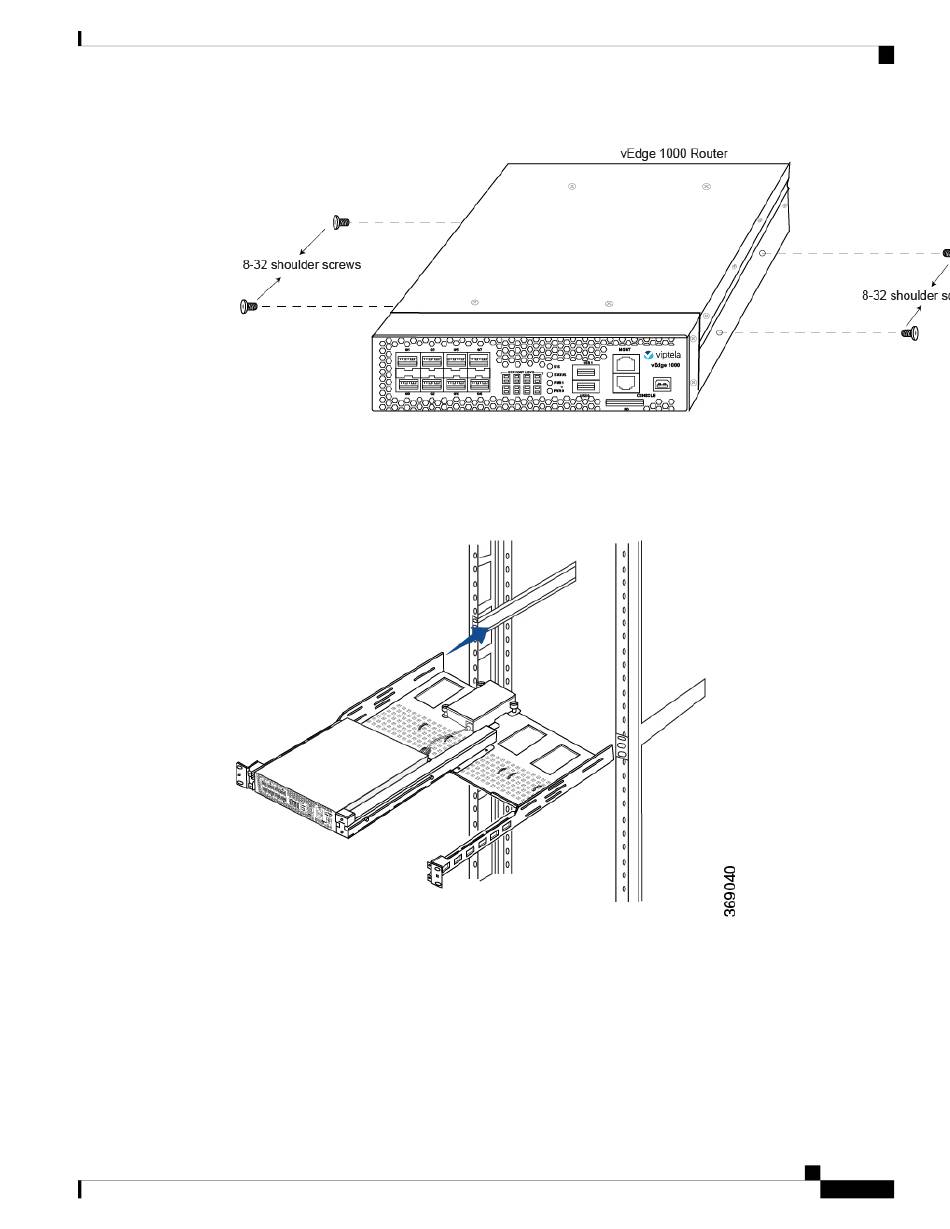

Figure 8: Sliding the vEdge 1000 Router into the Rack-Mount Tray
1. Secure the router(s) by placing the front stopper along the front side of the rack-mount tray and then
screwing the four thumbscrews attached to the stopper. To do this, first align one of the center thumbscrews
to its corresponding hole on the rack-mount tray and screw it in a bit, then align and screw the second
center screw, and then tighten both screws. After that, secure the lone thumbscrews, one on the left and
the other on the right end of the rack-mount tray.
Figure 9: Attaching the Front Stopper to the Rack-Mount Tray
Install the vEdge 1000 Router
