vEdge 1000 Router
Install the vEdge 1000 Router
1. Plug the DC 12-volt jack of the AC power adapter into the receptacle at the rear of the router.
2. Use cable ties to neatly secure, in place, the extra cable on the DC end. To do this, first pass the cable ties
through the two hooks provided on the tray and then tie the cable with it.

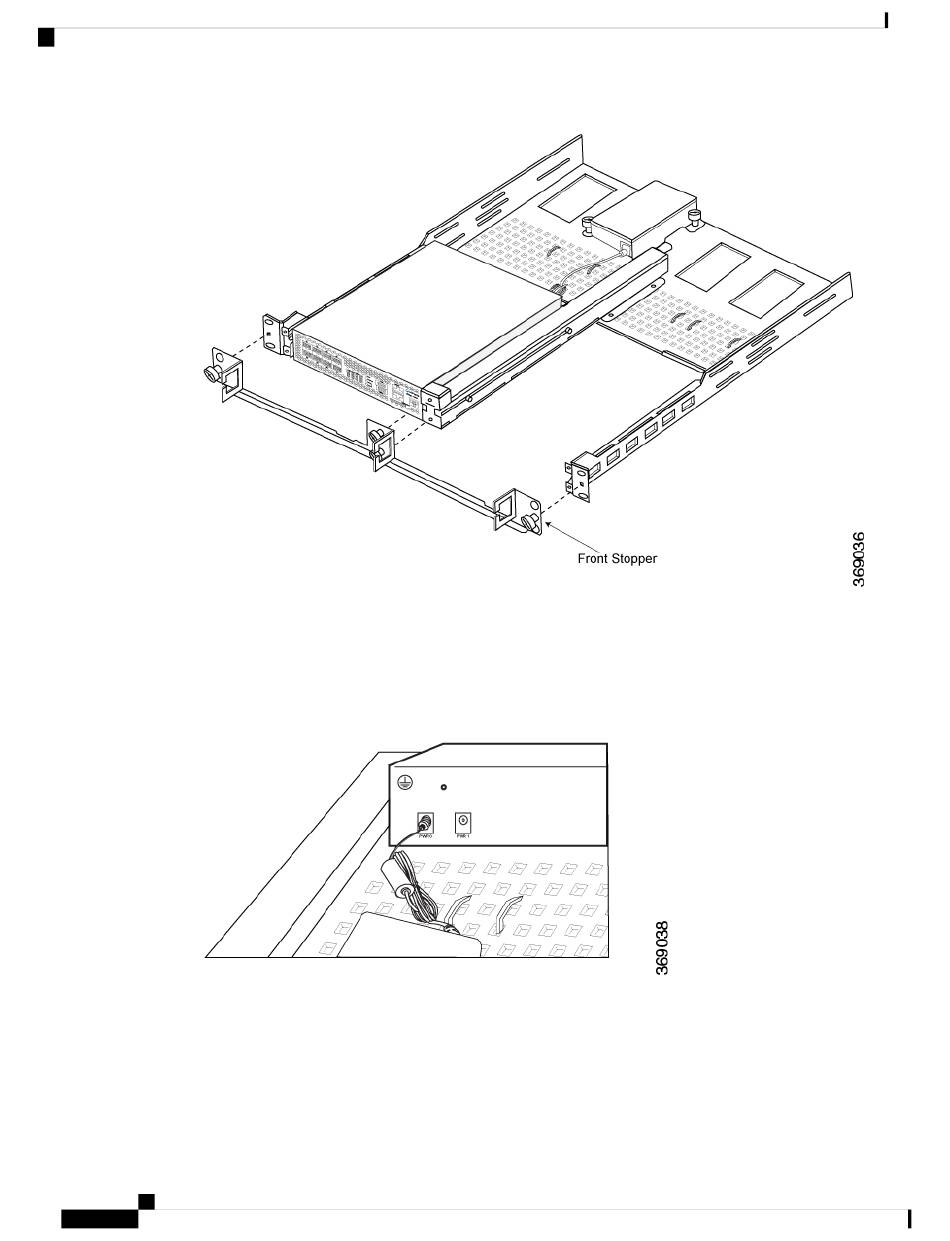

Figure 10: Securing the Cable on the DC End with Cable Ties
Note: There are two types of housing bracket sets provided in the rack-mount kit. Use the housing bracket
set that fits the AC power adapter you received with the vEdge 1000 router.
Install the Rack-Mount Tray on Two Front Posts
To install the rack-mount tray on two front posts in a 19-inch rack:
