5. Go to Preparing the DeviceMaster for Configuration
configure the DeviceMaster for use.

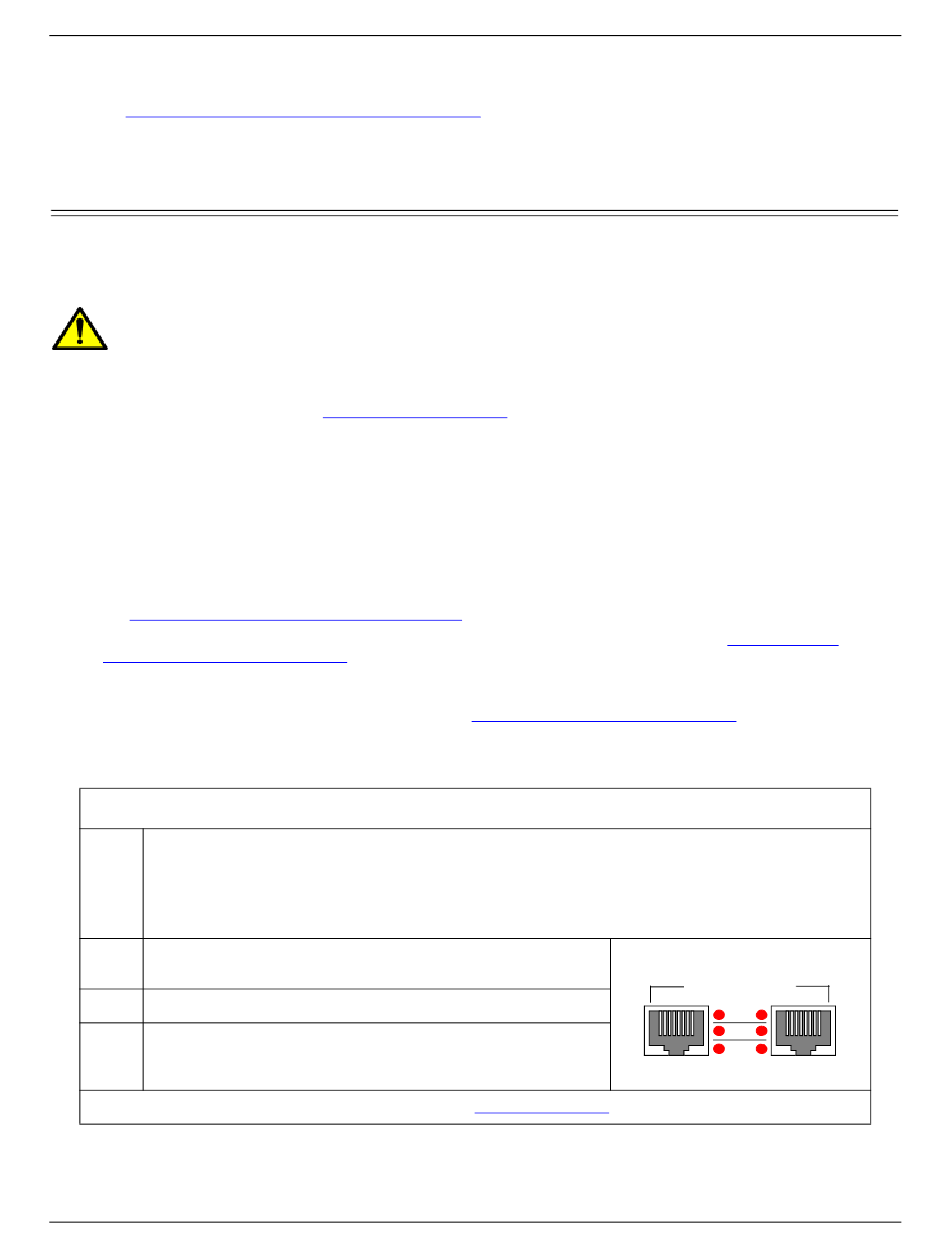

4-Port Panel Mount Installation

Use the following procedure to install the DeviceMaster 4-port.
1. Optionally, attach the mounting brackets using the screws provided in the kit (6-32 1/4" flathead machine)
or place the DeviceMaster on a stable surface.
Failure to use the correct screws can damage the PCB and void the warranty. Do NOT use
screws that exceed the length of the screws provided with the mounting bracket kit.
Note: If you ordered the DeviceMaster Rackmount Shelf Kit accessory, use the document that
accompanied that kit or
2. Connect the DeviceMaster to the same Ethernet network segment as the PLC. If the DeviceMaster serial
number is below xxxx-030000 use one of the following methods to connect the cable. Serial numbers above
xxxx-030000, the Ethernet port are interchangeable.
• Ethernet hub or switch (10/100Base-T): Connect to the port labeled UP on the DeviceMaster using
a standard Ethernet cable.
• Server NIC (10/100Base-T): Connect to the port labeled DOWN on the DeviceMaster using a
standard Ethernet cable.
• Daisy-chaining DeviceMaster units: Connect the port labeled DOWN on the first DeviceMaster to
the port labeled UP on the second DeviceMaster or other device using a standard Ethernet cable. Refer
to Daisy-Chaining DeviceMaster 4-Port Units
Note: Do not connect multiple units until you have changed the default IP address, see
DeviceMaster for Configuration
3. Apply power to the DeviceMaster by connecting the AC power adapter to the DeviceMaster, the
appropriate power cord for your location to the power adapter, and plugging the power cord into a power
source. If you want to provide a power supply, see
4. Verify that the PWR LED has completed the boot cycle and the network connection for the DeviceMaster
is functioning properly.
LED on the front panel of the DeviceMaster is lit, indicating you have power and it has
completed the boot cycle.
PWR
Note: The PWR LED flashes while booting and it takes approximately 15 seconds for the
Bootloader to complete the cycle. When the Bootloader completes the cycle, the LED
has a solid, steady light that blinks approximately every 10 seconds.
The red LNK ACT LED is lit, indicating that you have a
LNK
ACT working Ethernet connection.
COL If the red COL LED is lit, there is a network collision.
If the red 100 LED is lit, it indicates a working 100 MB
Ethernet connection (100 MB network, only). If the LED
100
is not lit, it indicates a 10 MB Ethernet connection.
Note: For additional LED information, go to the
DeviceMaster EIP | UP Hardware Installation and Configuration Guide: 2000633 Rev. C
on Page 21 for default network settings and how to
download the document
on Page 82.
on Page 21
4-Port Panel Mount Power Supply
4-Port LED Descriptions
Status LED table
to mount the DeviceMaster on the shelf.
10/100 NETWORK
UP
on Page 80.
Hardware Installation
Preparing the
on Page 78.
LNK
ACT
COL
100
DOWN
Hardware Installation - 19
